Engine Control Module




Component Connector End Views

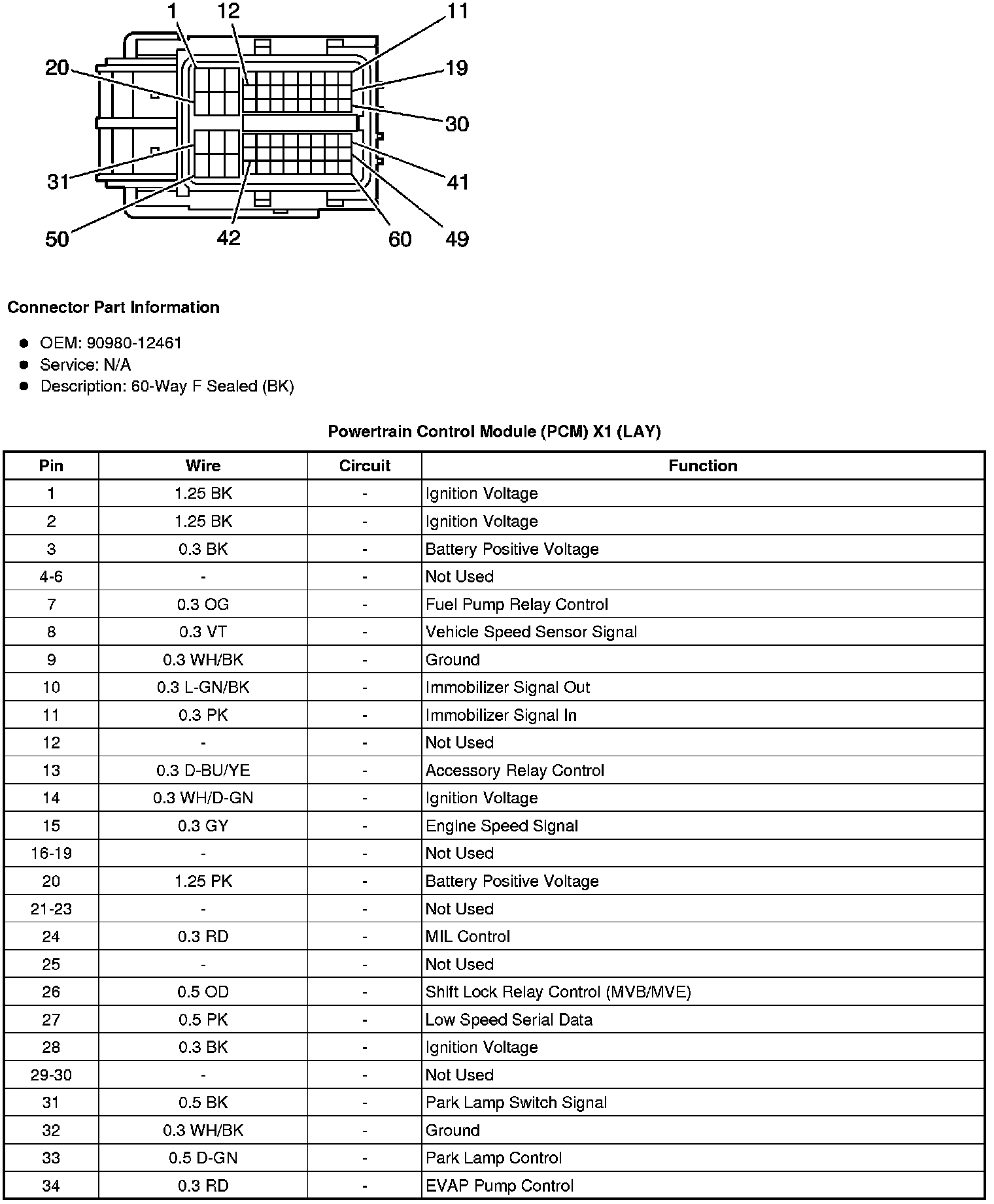

Powertrain Control Module (PCM) X1 (LAY)

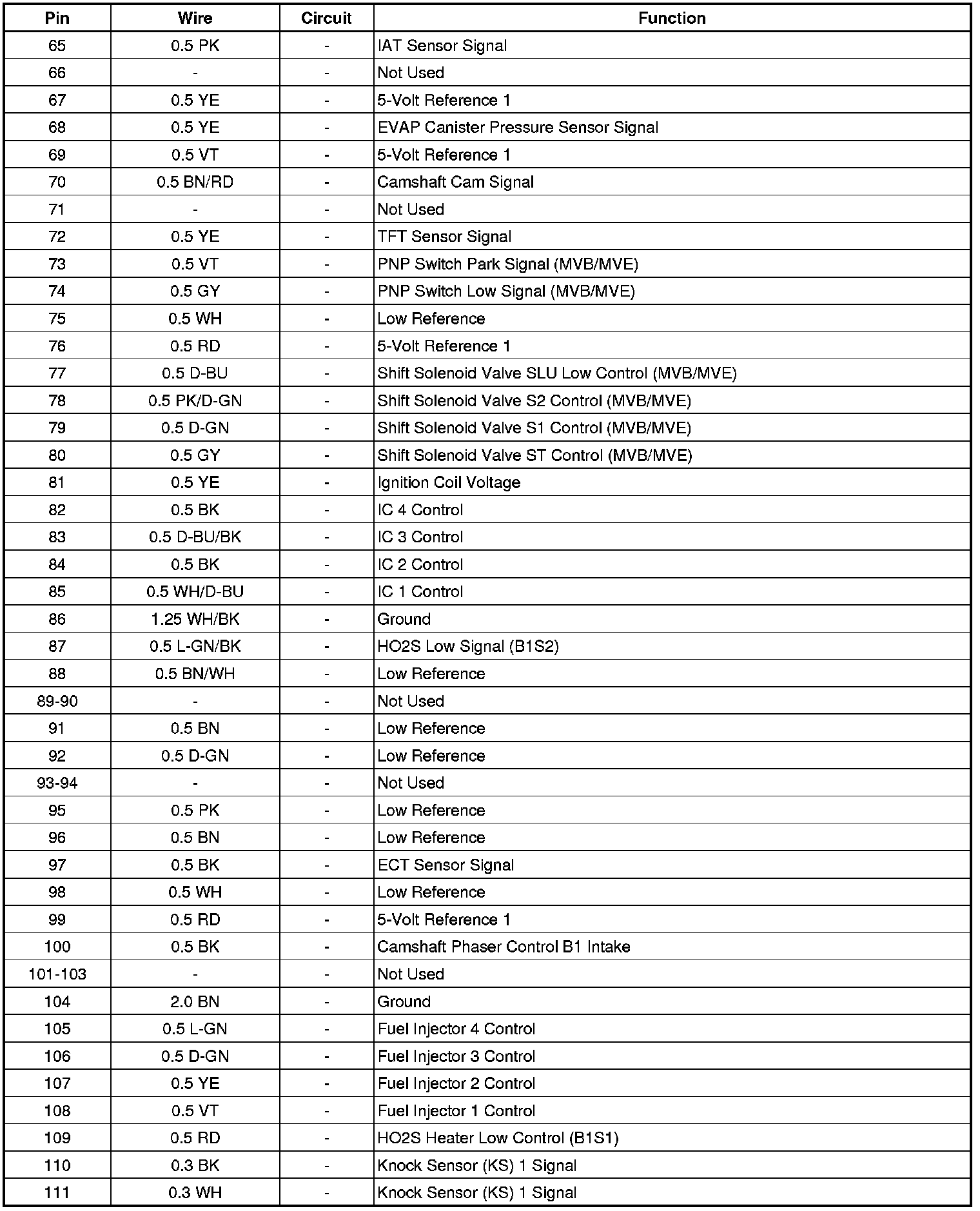

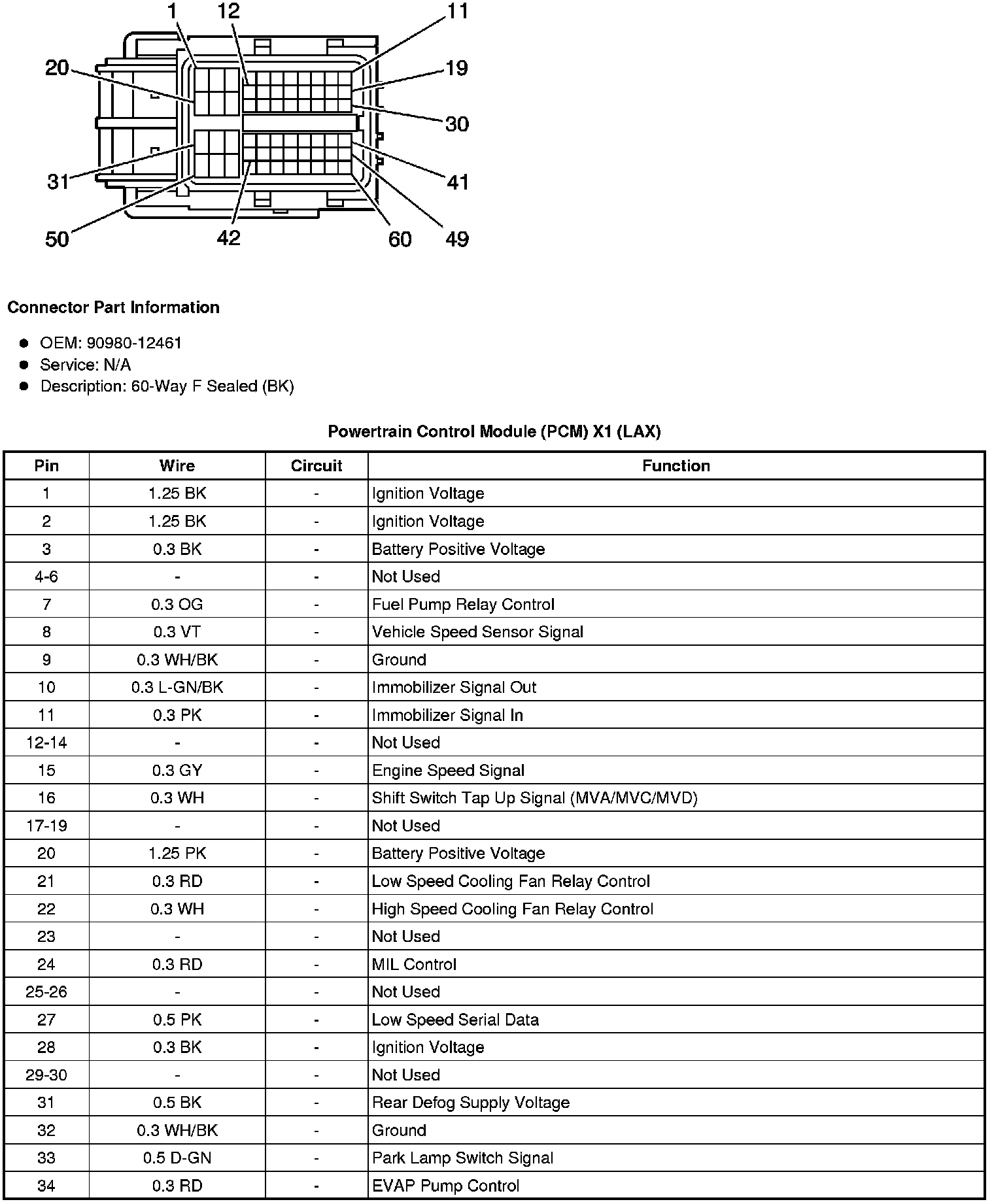

Powertrain Control Module (PCM) X1 (LAX)

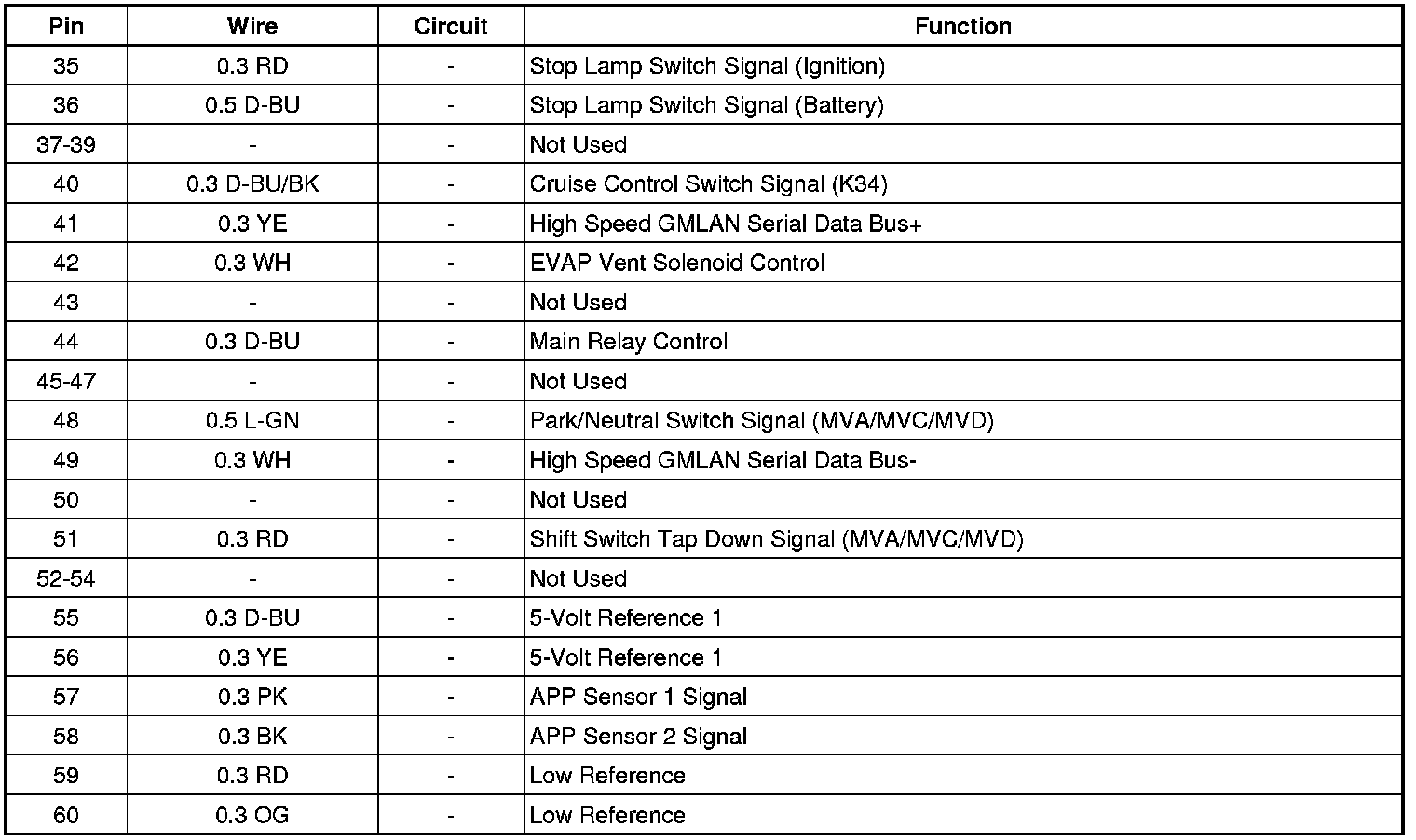

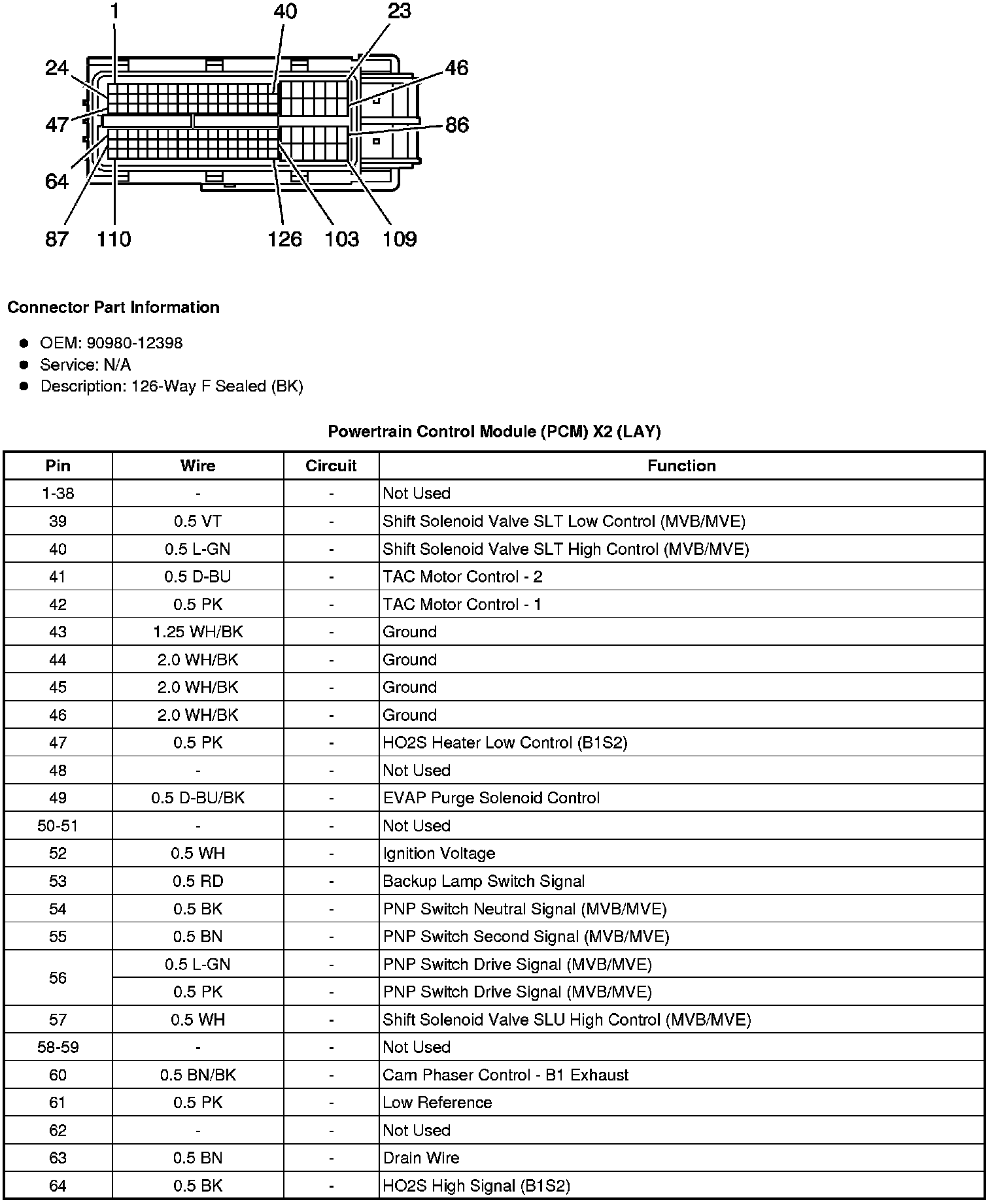

Powertrain Control Module (PCM) X2 (LAY)

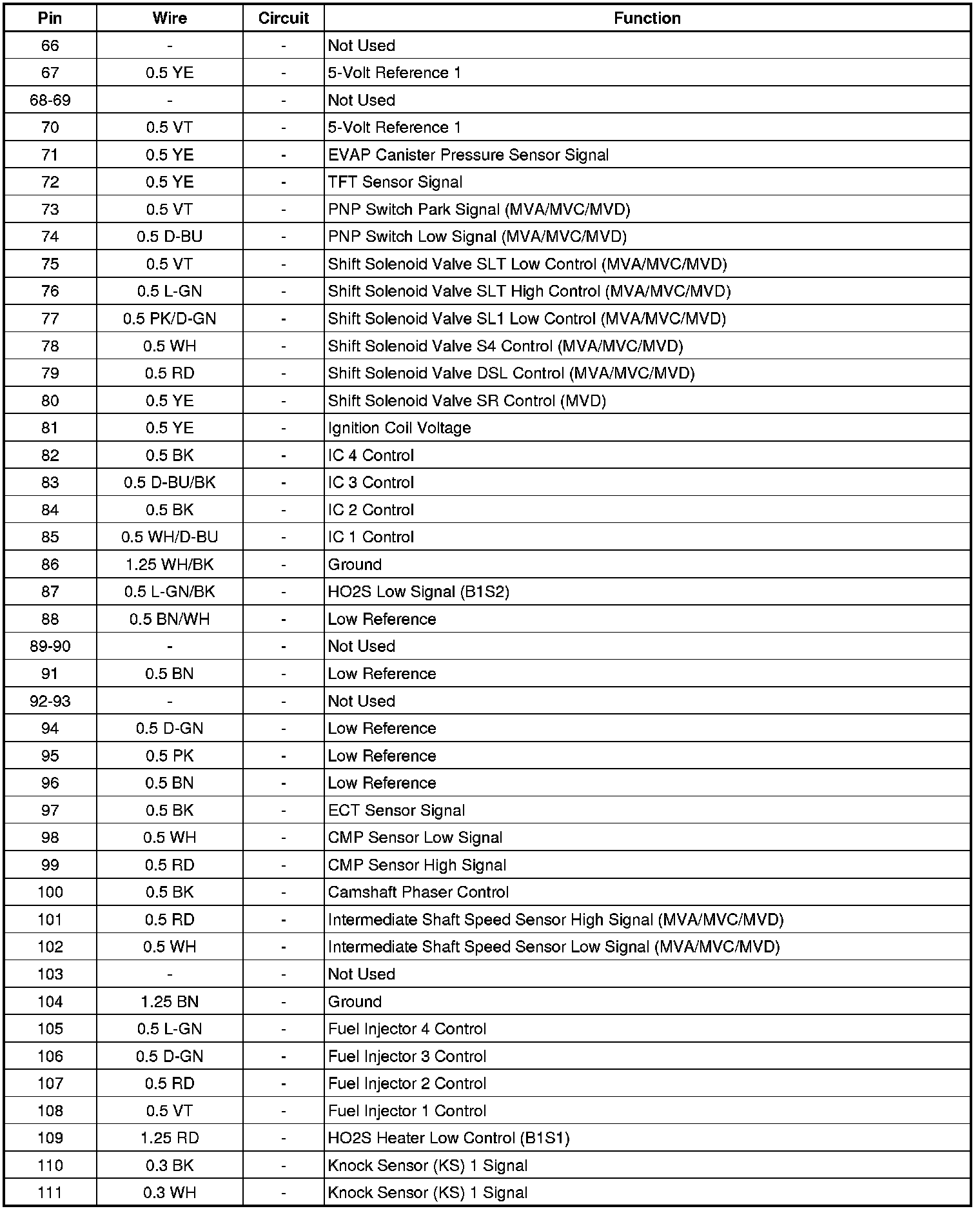

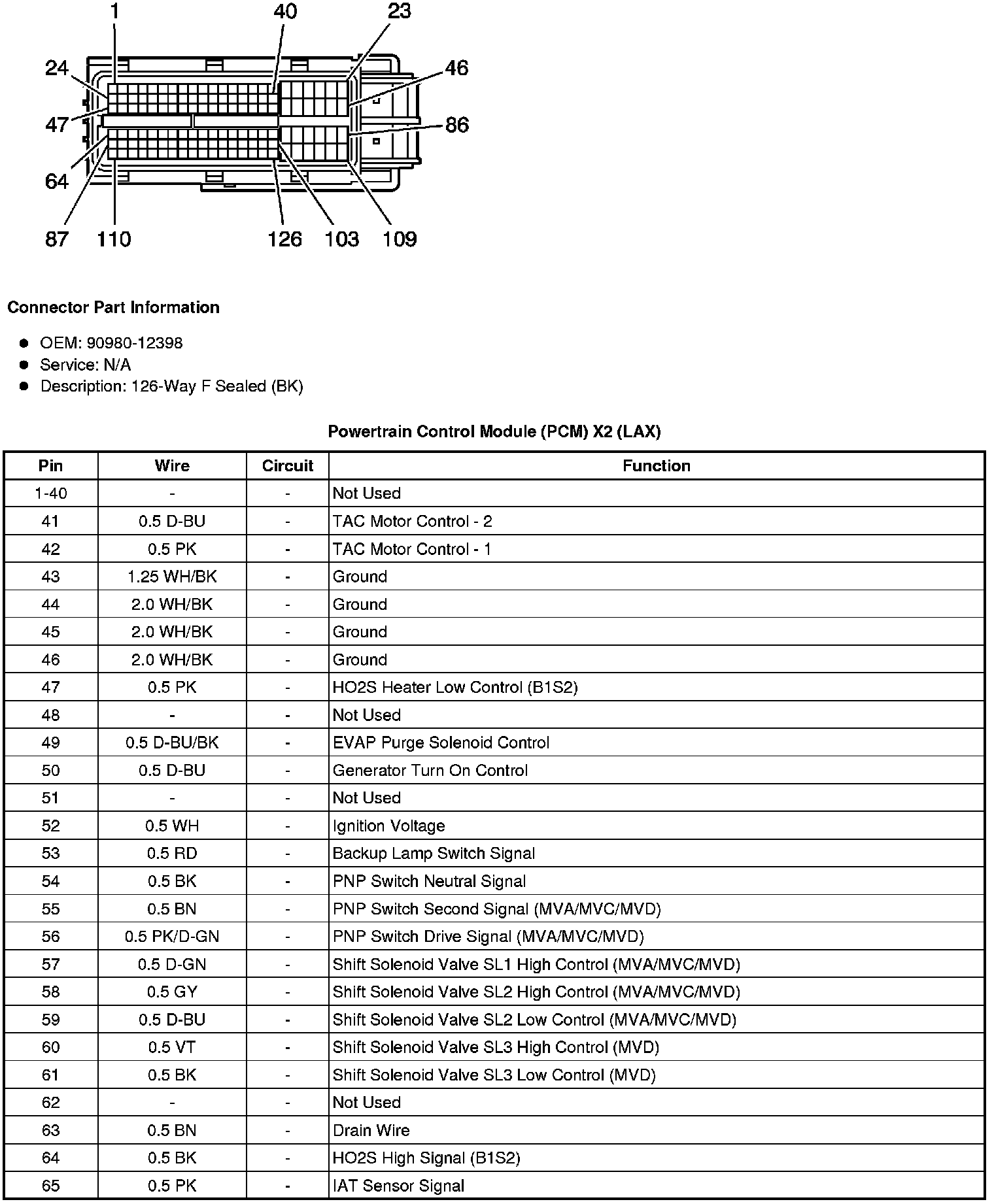

Powertrain Control Module (PCM) X2 (LAX)
