Junction Block - I/P




Electrical Center Identification Views

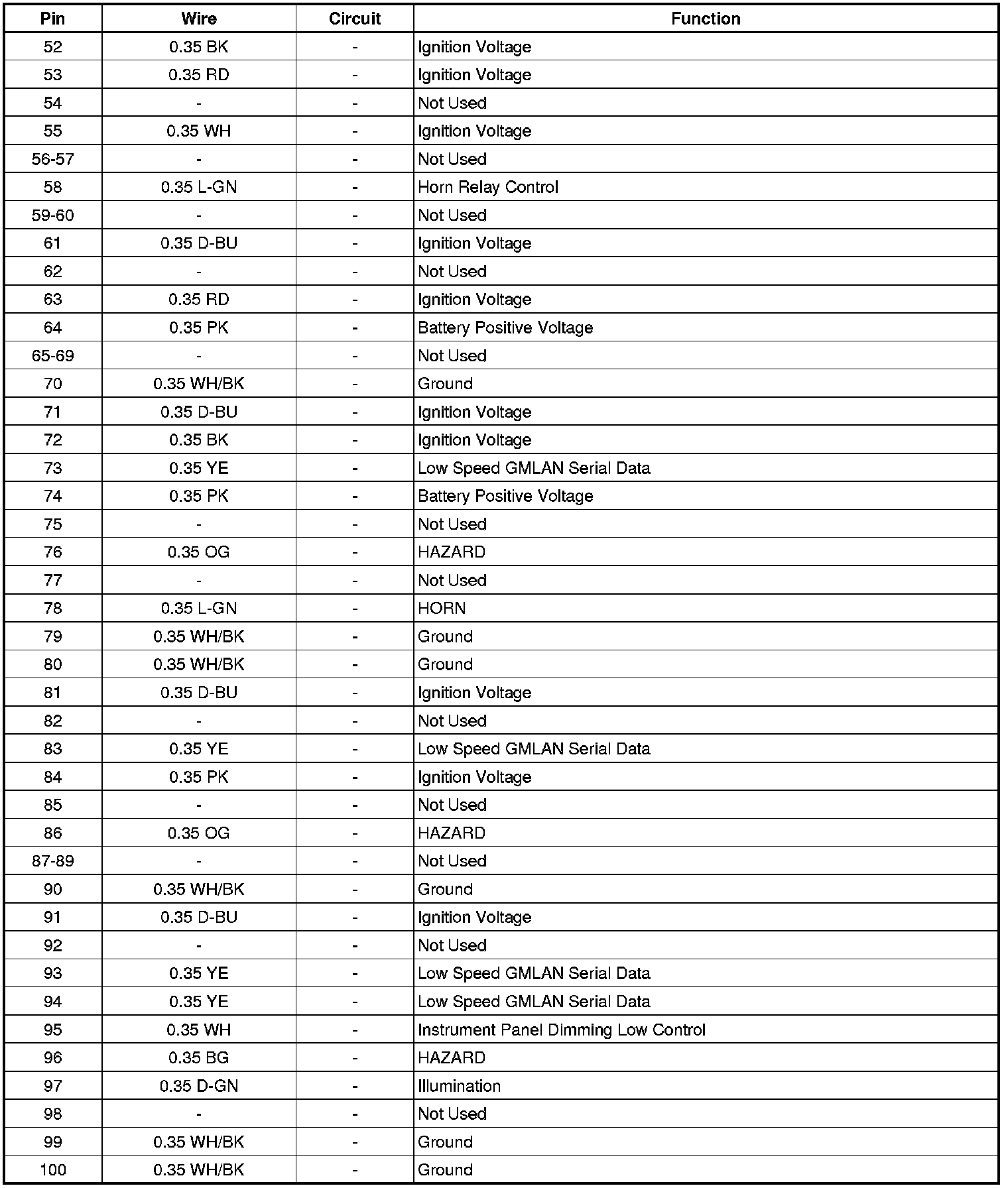

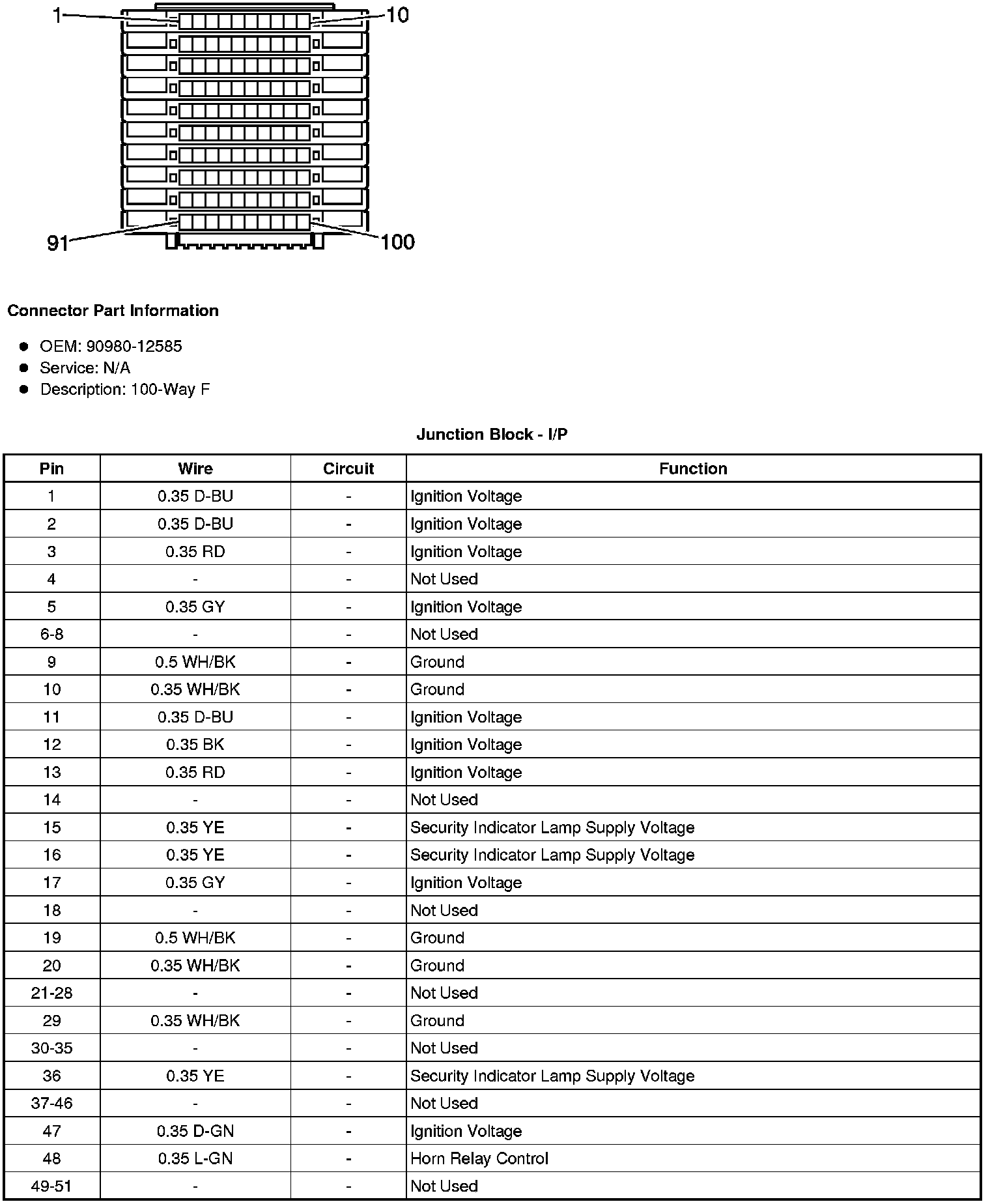

Junction Block - I/P









Junction Block - I/P Left X1





Junction Block - I/P Left X2





Junction Block - I/P Right X1





Junction Block - I/P Right X2
