Wiring Diagrams: UNDERDASH

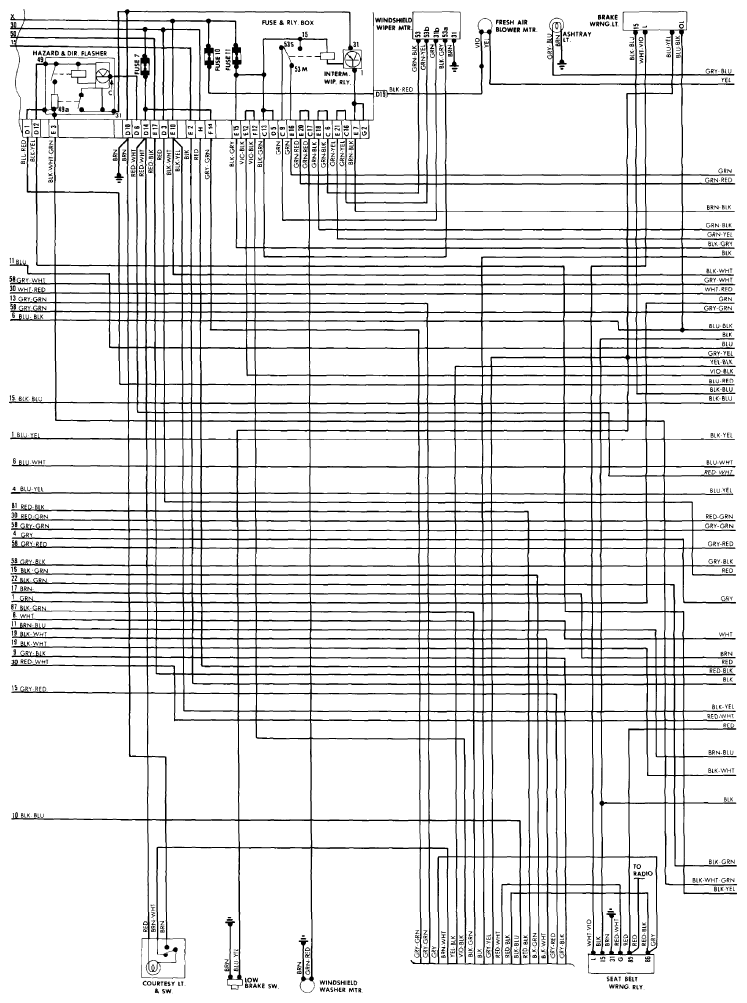

Fig 1: Wiring Diagram - Porsche 924 & 924 TURBO (3 of 4)
G09304510Courtesy of PORSCHE CARS NORTH AMERICA, INC.
