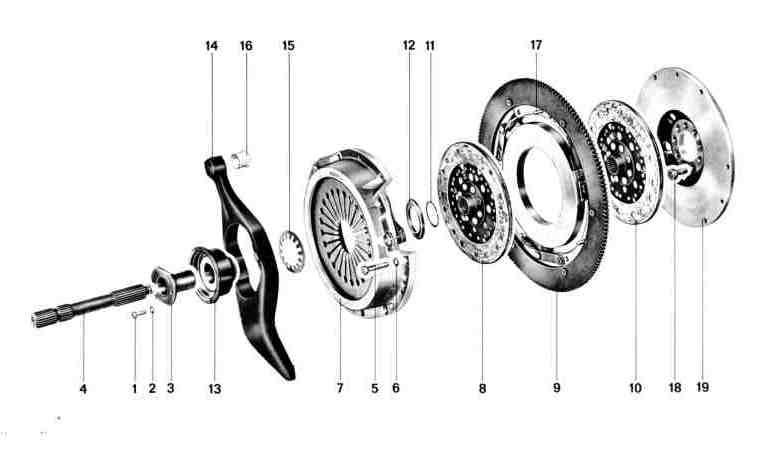

System Diagram

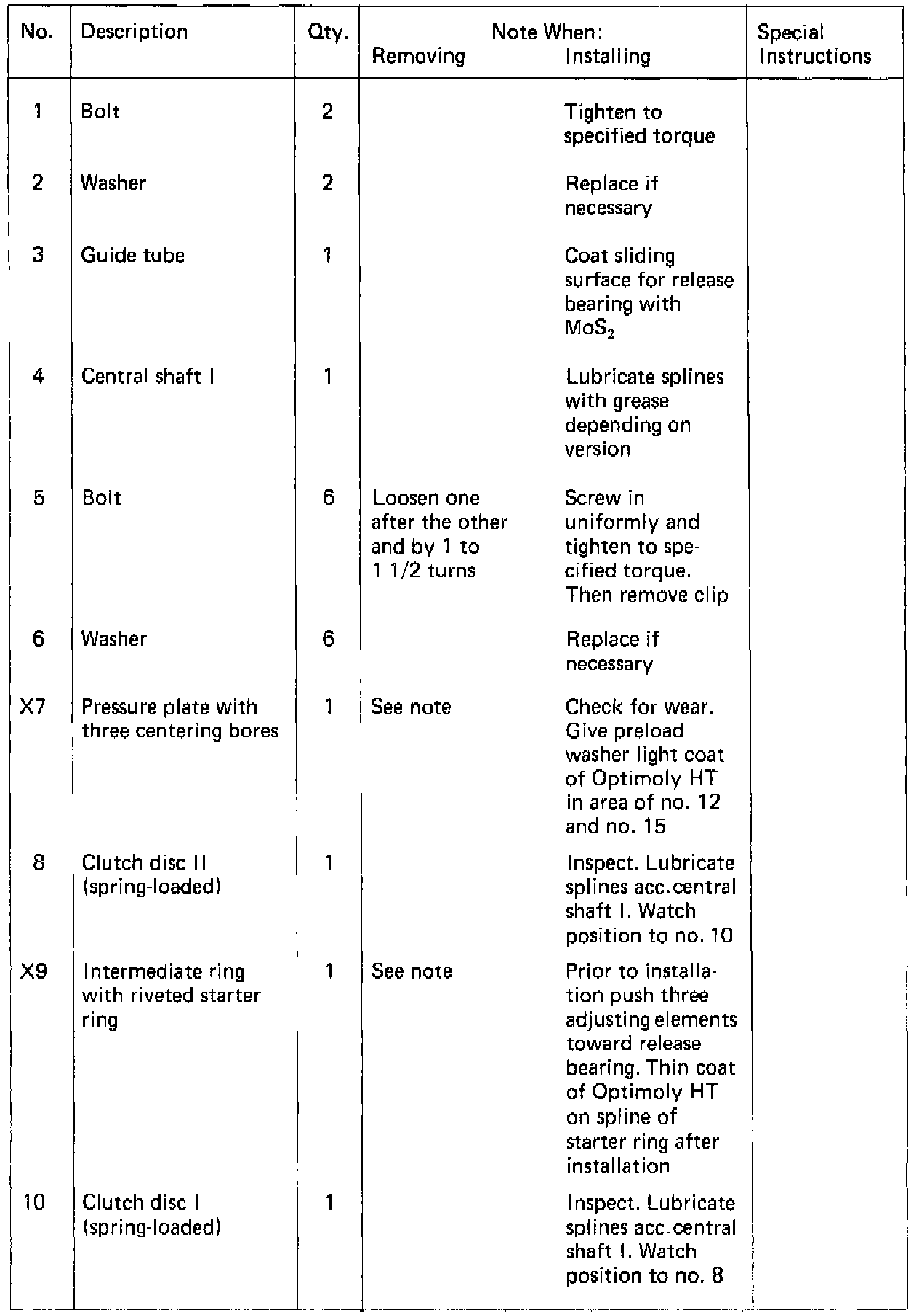

NOTE: Parts in table marked with "X" were balanced together in manufacturing and must therefore be marked prior to removing for installation in same position later (also refer to procedures).
