Housing Assembly HVAC

NOTE: Refer to images as a guide for disassembly and assembly.

1 Of 2:

2 Of 2:

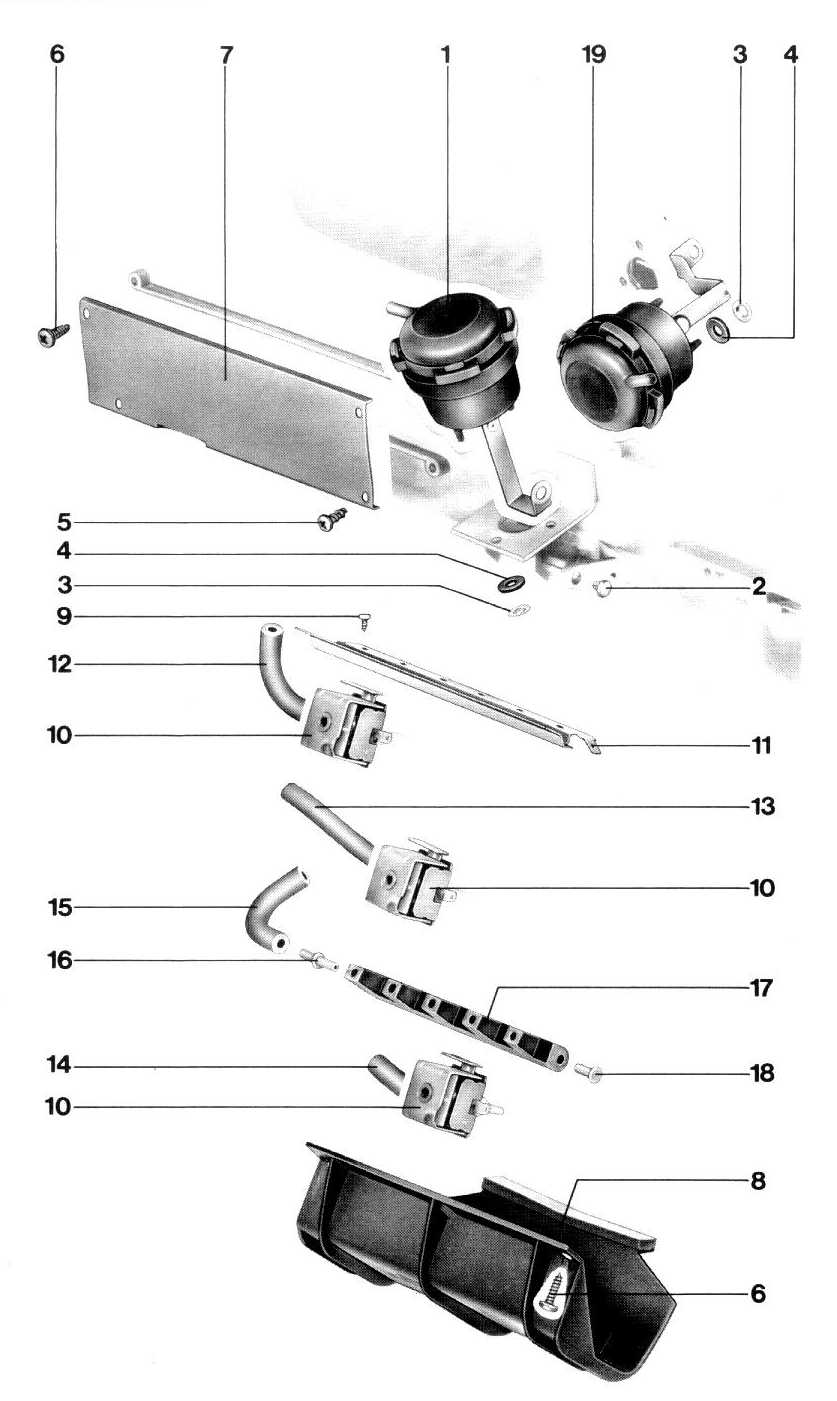

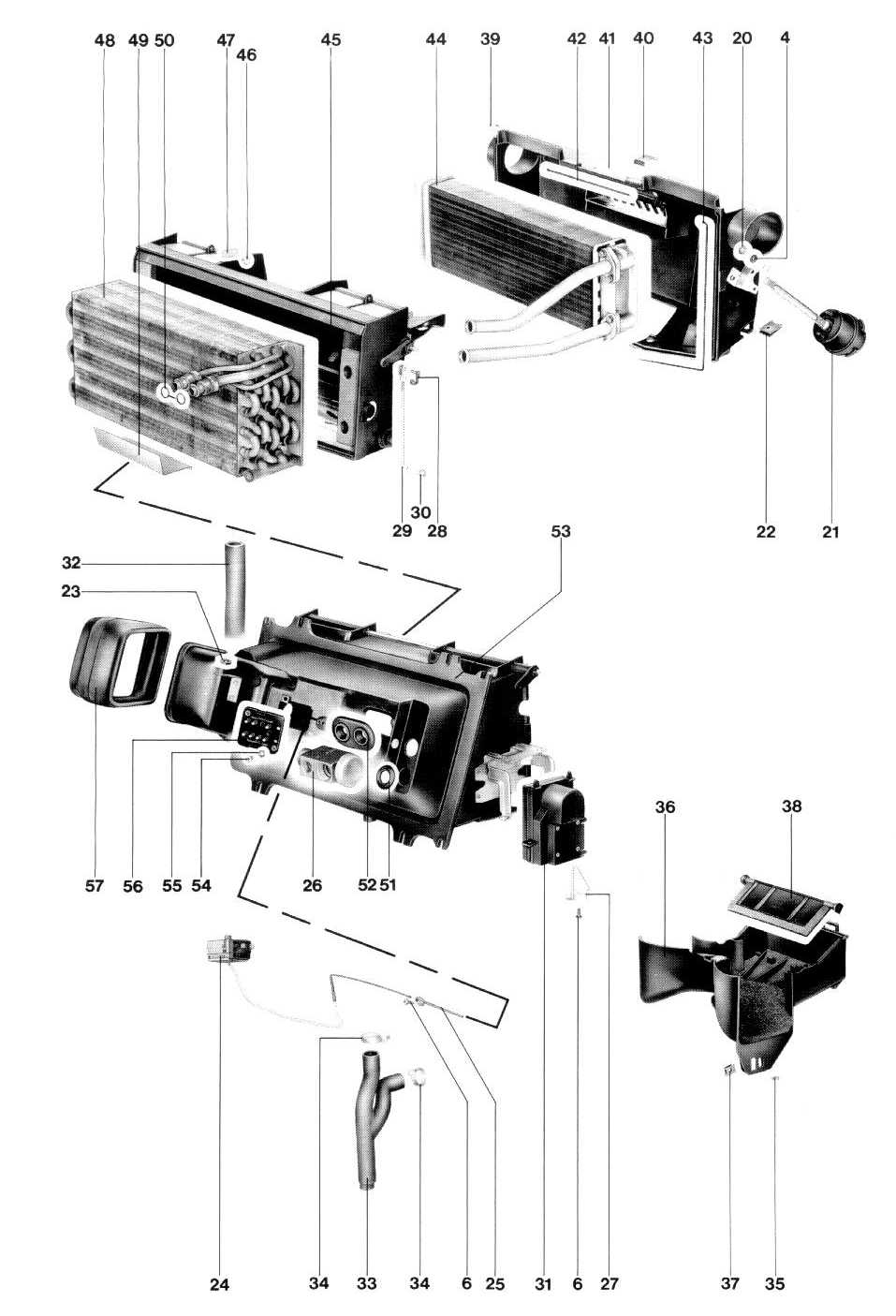

HEATER / AIR CONDITIONER EXPLODED VIEW

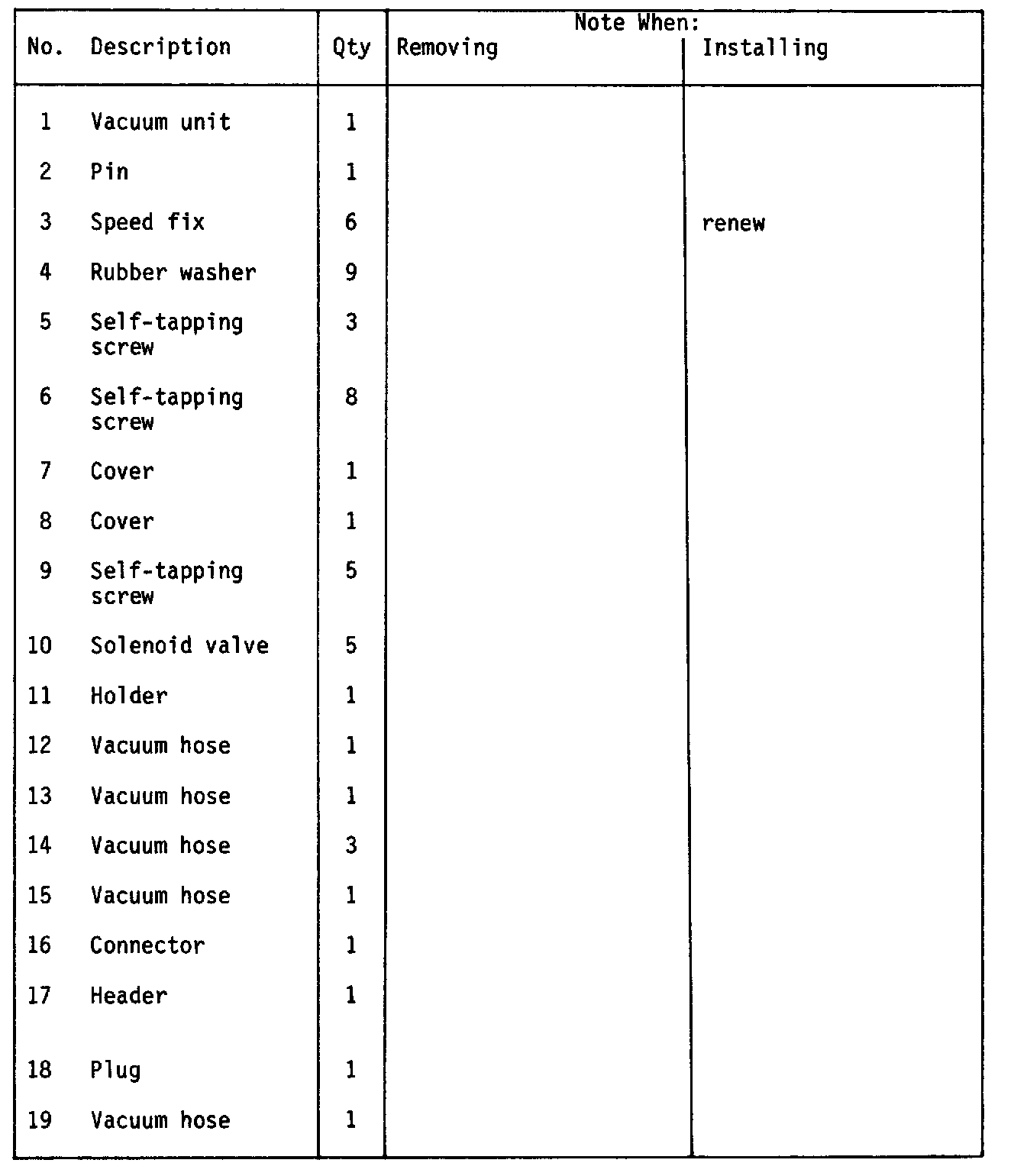

Component Key
1 through 19

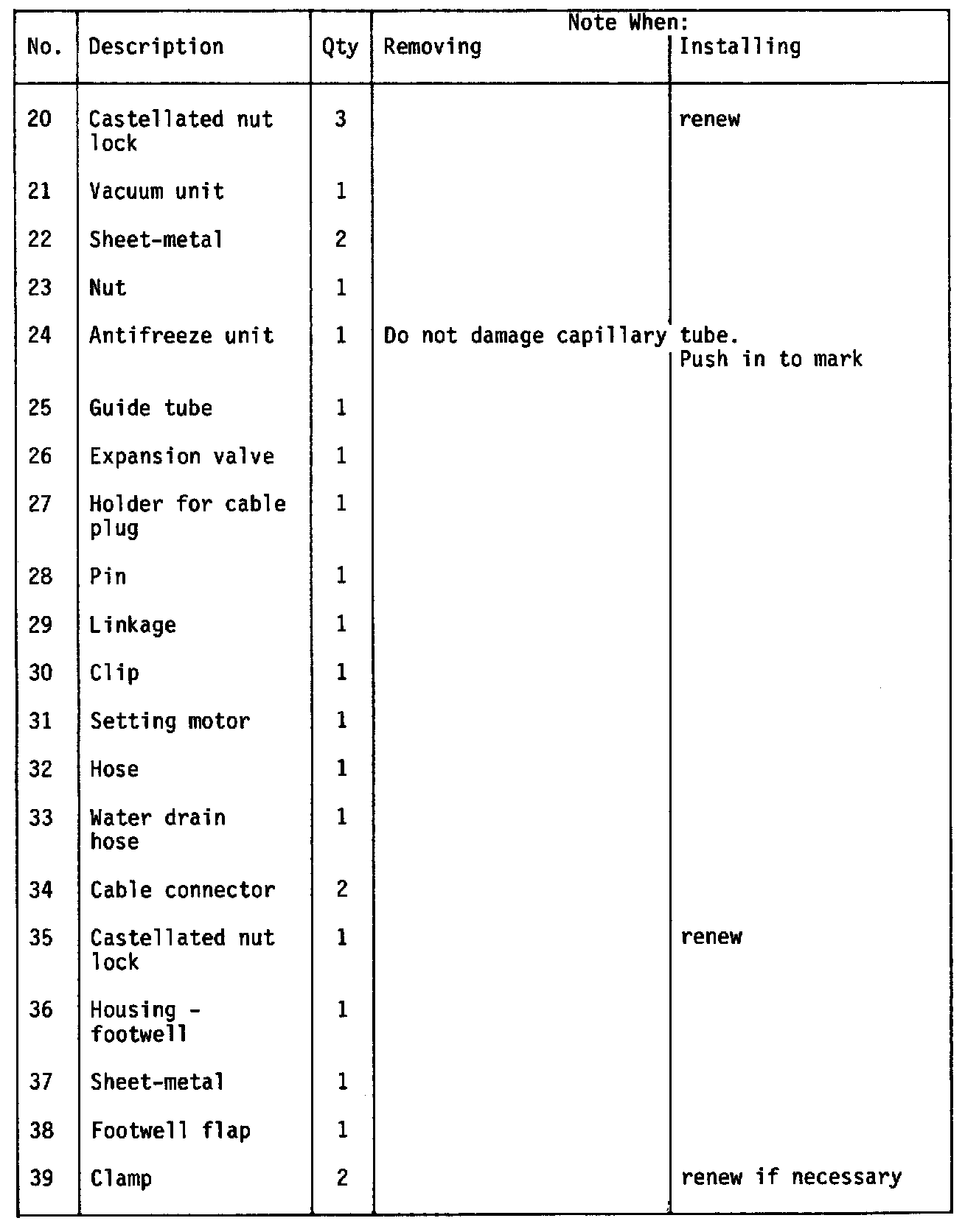

Component Key
20 through 39

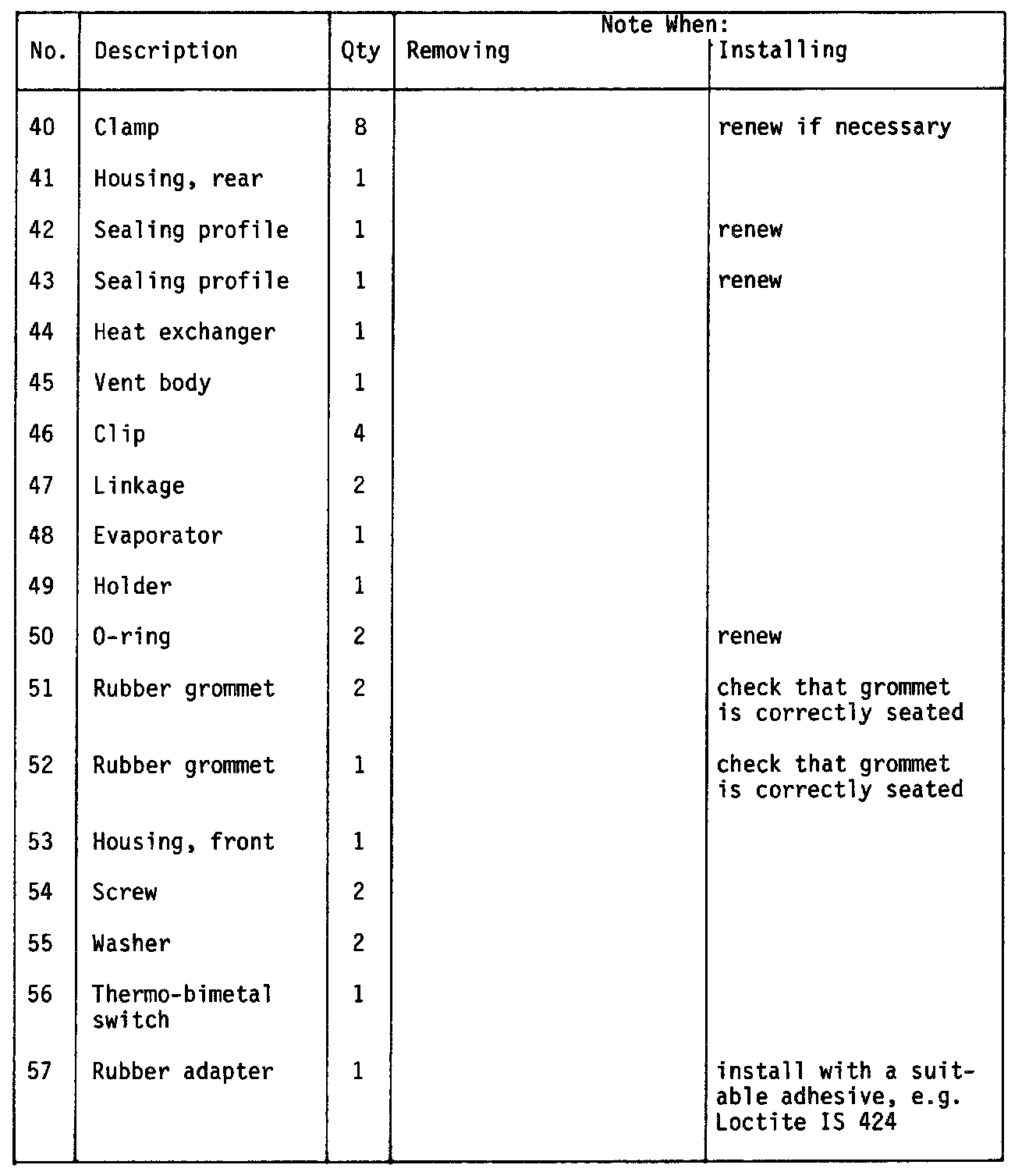

Component Key
40 through 57
