Ambient Temperature Sensor / Switch HVAC: Service and Repair

Removing and Installing Outside Sensor

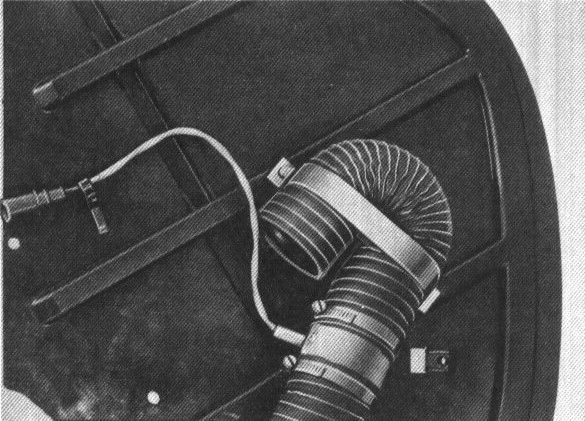

Outside sensor is located in fresh air hose of alternator.

1. Unscrew cover in front left wheel house.




2. Loosen hose straps on fresh air hoses and pull off of outside sensor housing. Disconnect plugs.
