Receiver Dryer: Service and Repair

1. Discharge air conditioner.

2. Remove air intake screens.

3. Disconnect plug for temperature and low-pressure switch.

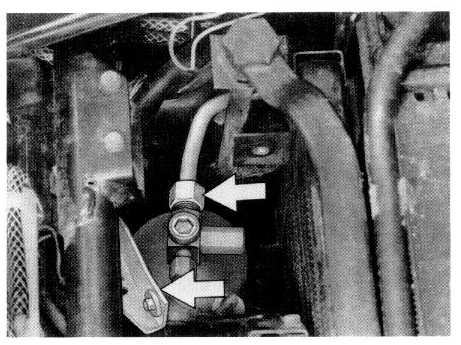

4. Detach bracket at top right of lock transverse member and swing aside.

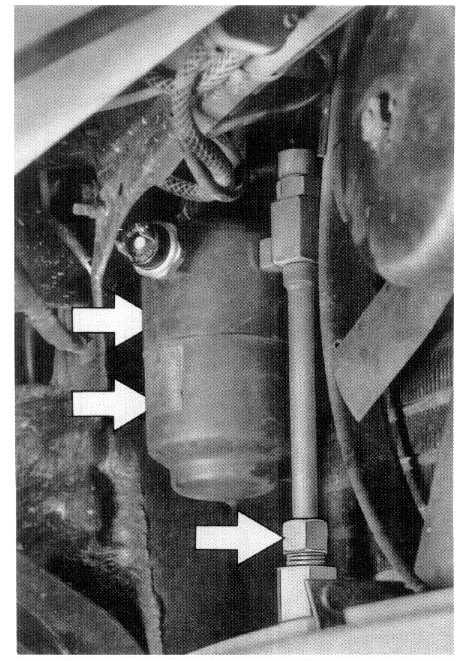

5. Disconnect feed lines.





6. Unscrew mounting bolts.

Note: Always fit a replacement Receiver Dryer if the system is defective or if the coolant circuit is opened.

7. Plug connectors and lines.

8. Reverse procedure to install.
