Ignition Switch Lock Cylinder: Service and Repair

REMOVING LOCK CYLINDER from 1981 Models

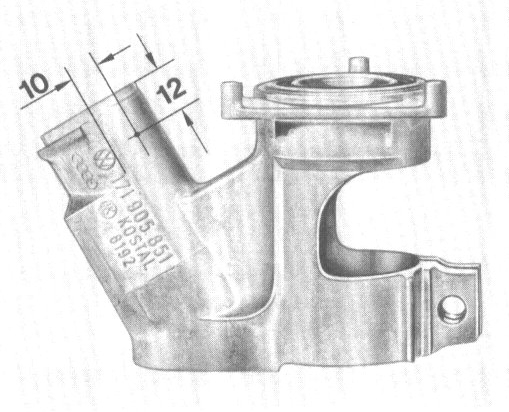

1. Mark steering lock housing according to size and drill an approx, 3 mm dia. hole.






2. Press in retainer with a suitable tool (mandrel or scribe) and pull lock cylinder out of housing at same time.
