Procedures

SETTING CRANKSHAFT TO TDC IN CYLINDER NO.1

Crankshaft Position (Engine Installed)

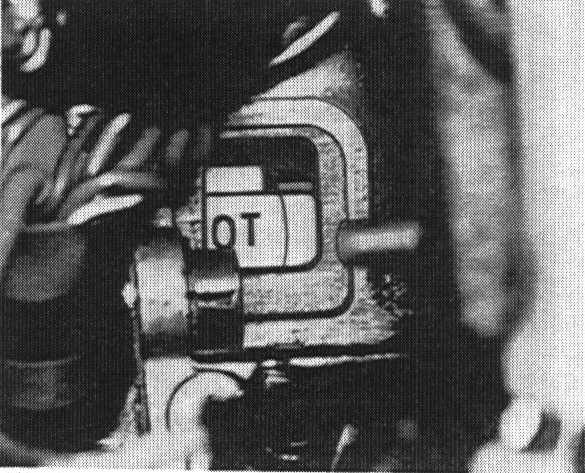

TDC mark on flywheel and cast boss on clutch housing must be aligned.

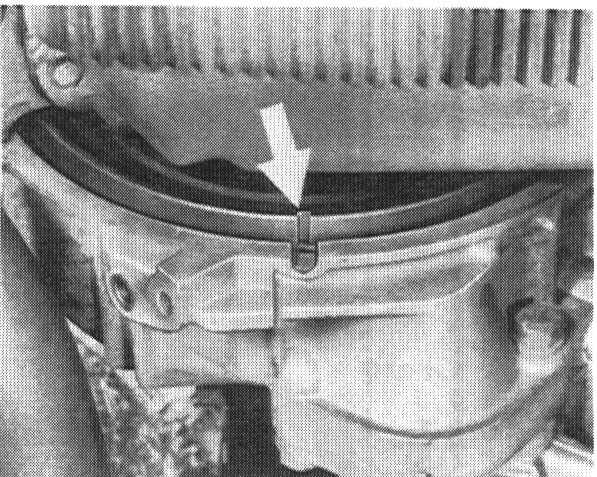

Additional TDC mark on flywheel, seen from underneath car. TDC is reached, if the approx. 5 mm wide groove in the flywheel is in the middle of the opening of the clutch housing.


Crankshaft Position (Engine Removed)

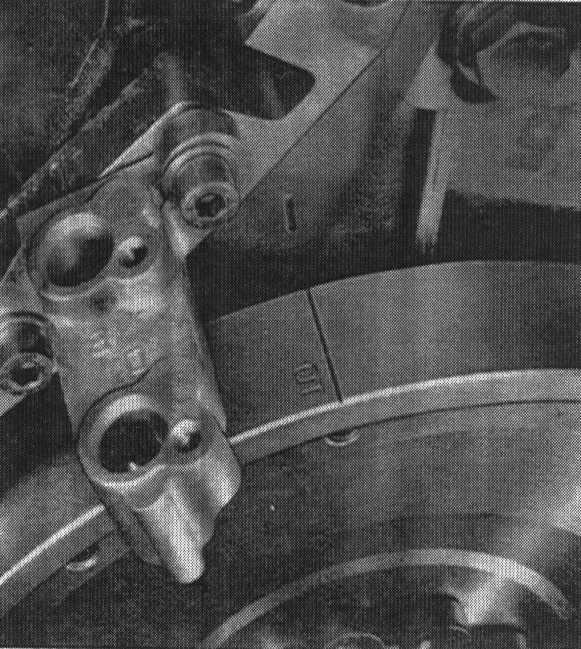

TDC mark on flywheel and cast mark on upper crankcase section must be aligned.
