Differential, Automatic Transaxle
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

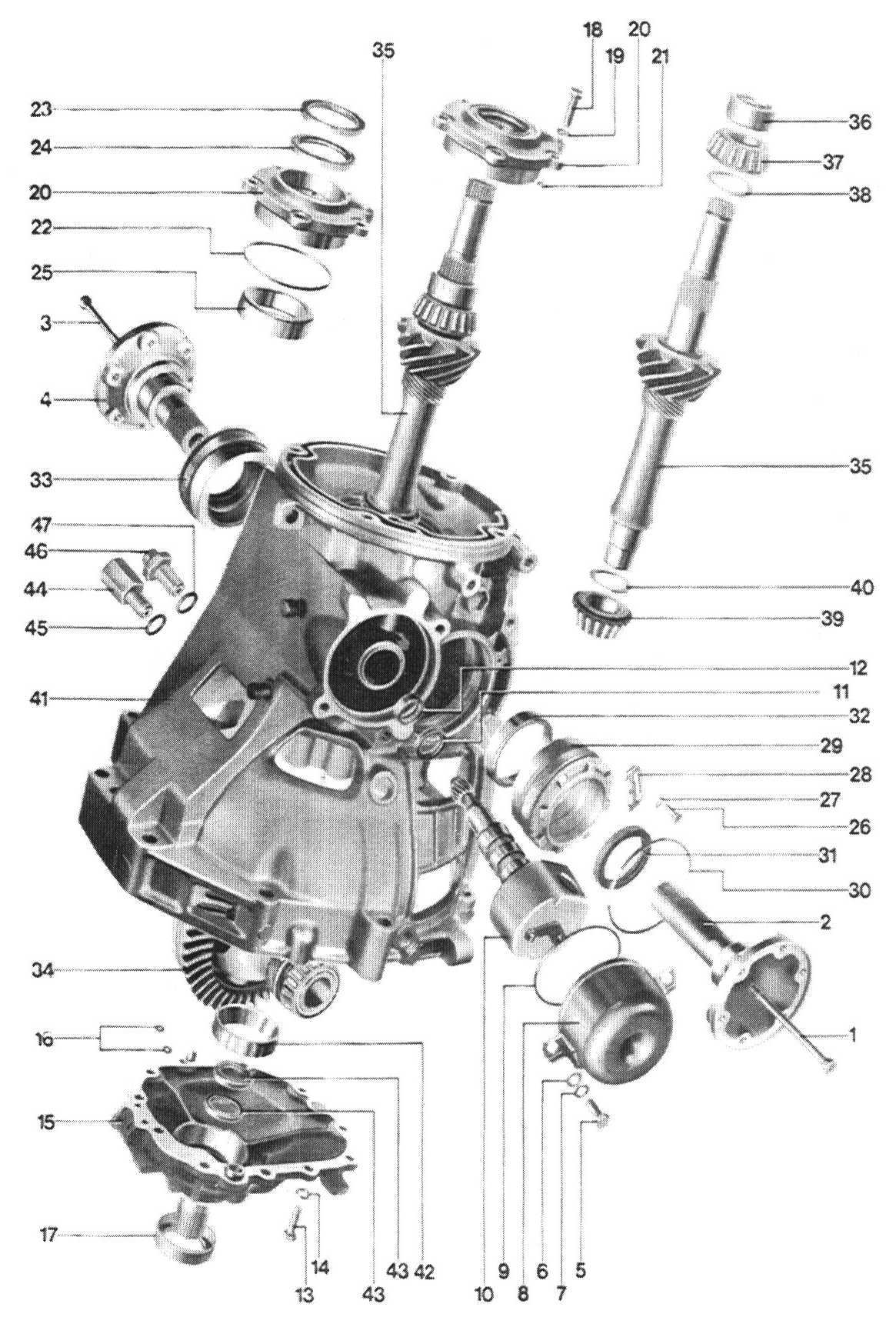

Exploded View
