Cabin Temperature Sensor / Switch: Service and Repair

REMOVING AND INSTALLING INTERIOR SENSOR BLOWER

1. Remove glove compartment.

2. Pull hose from interior sensor.

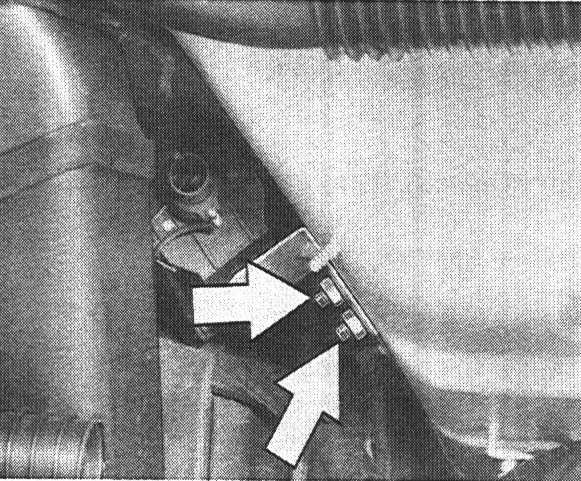

3. Loosen fastening nuts.

4. Disconnect plug.

Note: Make cable connection before installation.
