Compressor Clutch: Service and Repair

INSTALLING AND REMOVING MAGNETIC COUPLING

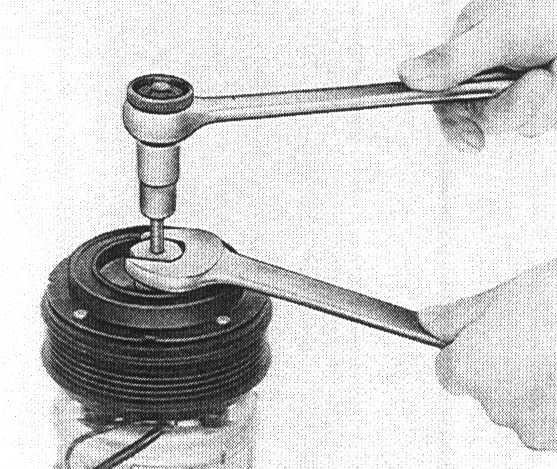

1. For loosening or tightening the fastening nut, use holding wrench to counter-hold.
Tightening torque: 16 Nm (12 ft lb)

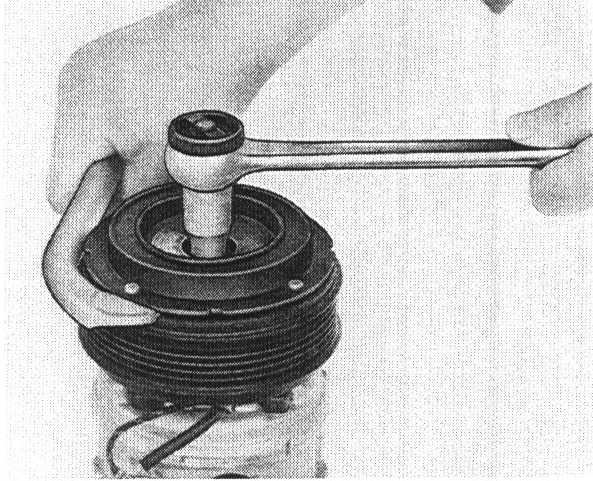

2. Remove coupling plate with puller.

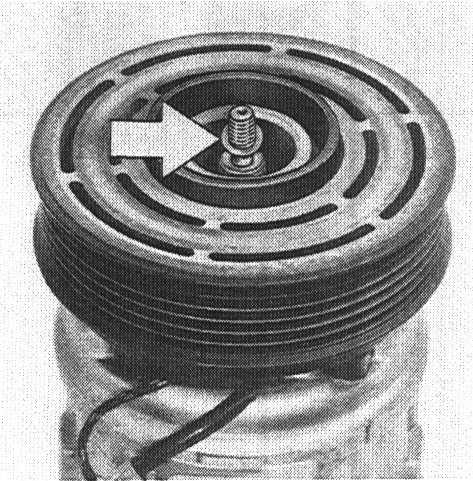

3. Remove shims.

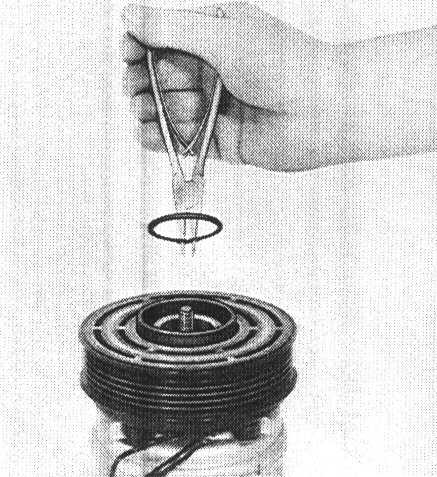

4. Remove retaining ring and belt pulley.

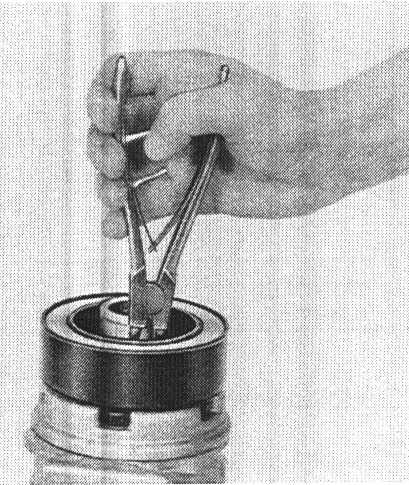

5. Remove retaining ring and magnet coil.

Note: Coil resistance 3.8 ± 0.2 ohm.


Installation




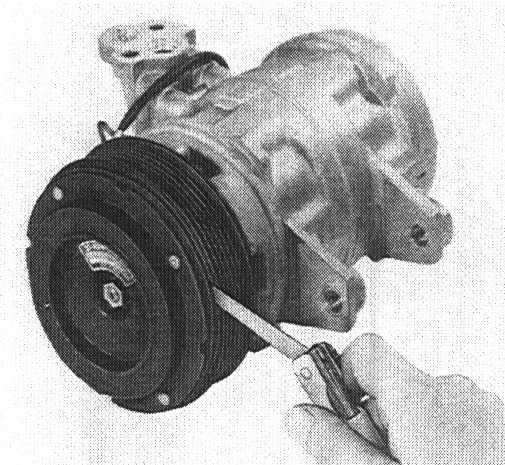

The air gap between the coupling plate and belt pulley is 0.4 - 0.7 mm.




If required, adjust air gap with shims.

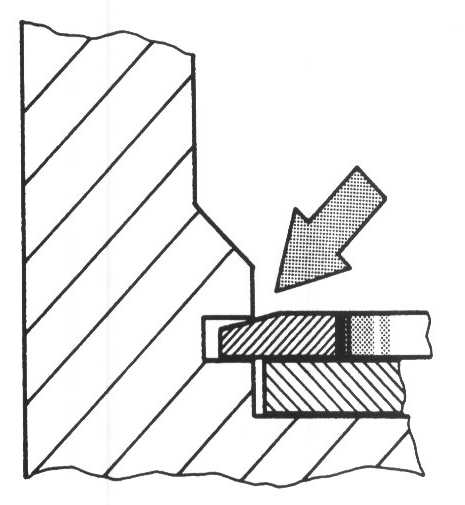

Install the two retaining rings so that the diagonal points upwards.
