Compressor HVAC: Service and Repair

REMOVING AND INSTALLING COMPRESSOR

1. Drain air-conditioning system.

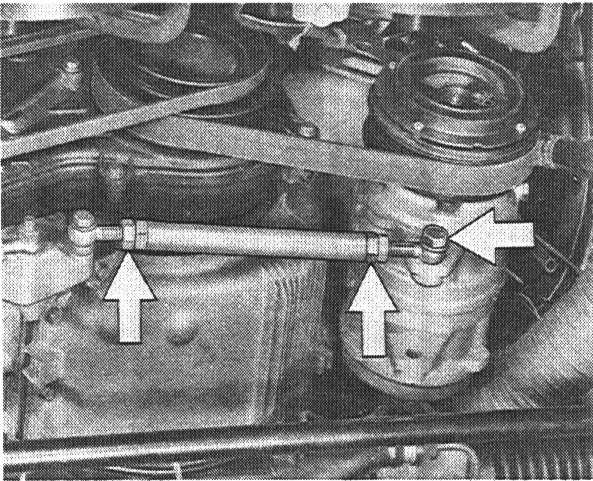

2. Loosen both lock nuts on clamp clip.

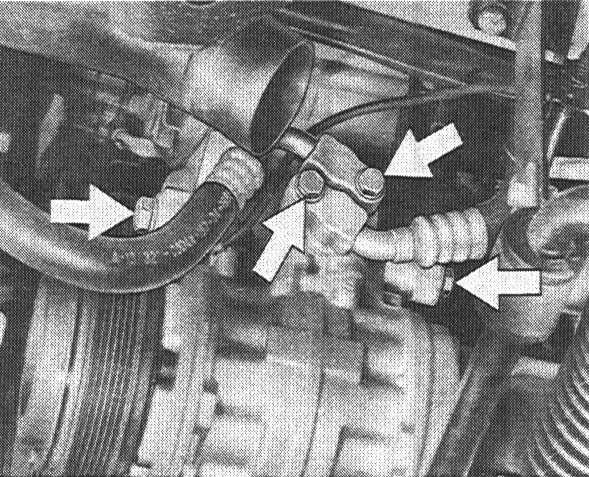

3. Loosen V-belt.

4. Loosen clamp clip fastening and remove V-belt.




5. Disconnect plug.

6. Loosen hose connections.

Note: The fastening screws are microencapsulated. Use new screws during installation.
In order to facilitate installation, remove the generator ventilation hose.

7. Unscrew compressor fastening screws.
