Receiver Dryer: Service and Repair

REMOVING AND INSTALLING REFRIGERANT TANK

1. Drain air-conditioning system.

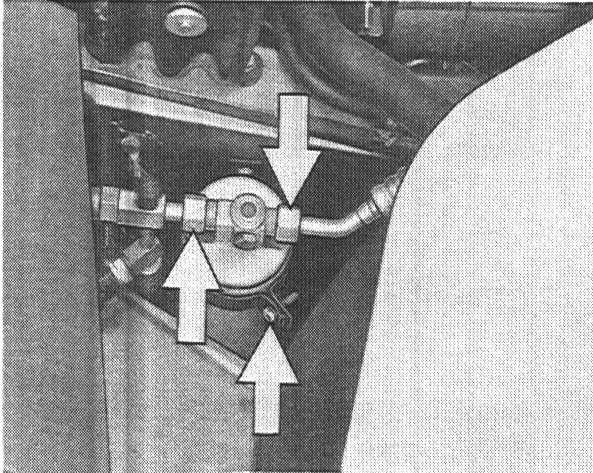

2. Loosen hose connections.

3. Loosen clamp.

4. Pull tank out from above.

Note: During installation, make sure that the connection nipple marked "IN" points forward.
The tank must be replaced in case of system malfunction and after every opening of the refrigerant system.
