Steering System - Power: Description

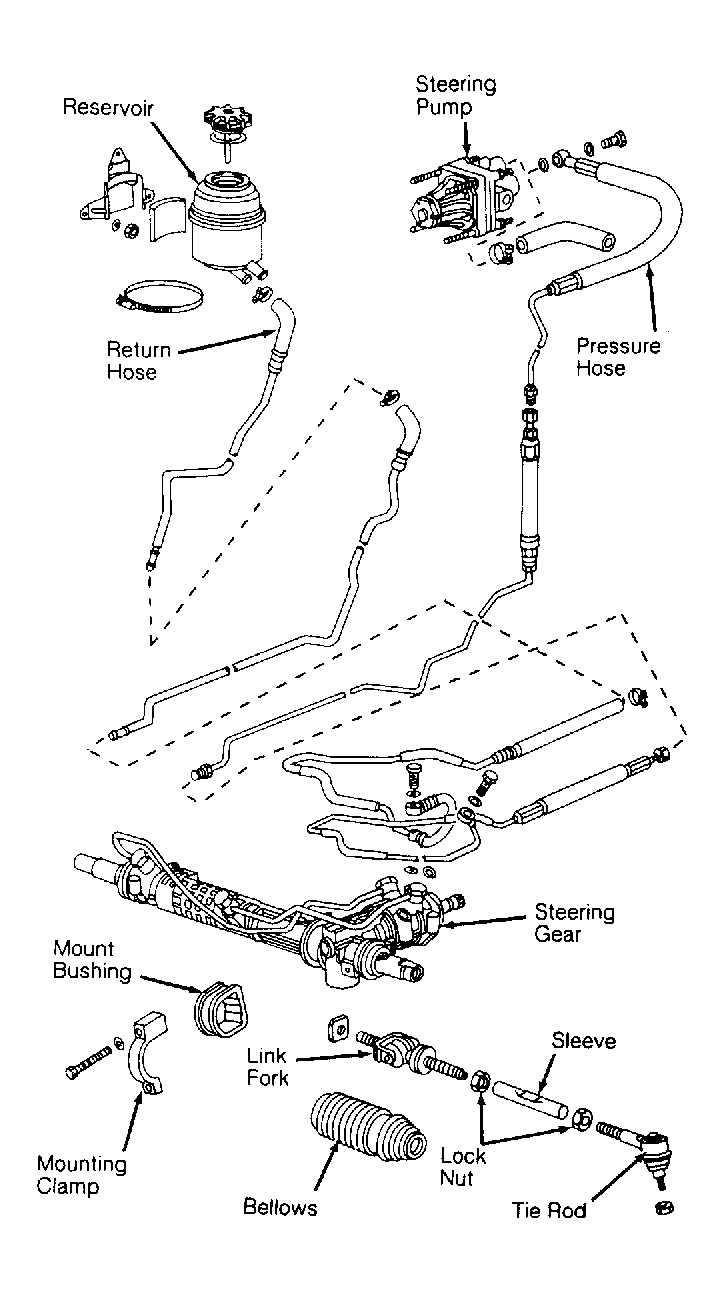

Power steering system consists of a rack and pinion steering gear, steering pump, fluid reservoir and flexible connecting lines. See Figure . Rack is protected from dirt by rubber bellows. Pinion and bearing are assembled as one unit and use an adjustable spring-loaded plunger. Tie rods connect steering rack to steering knuckles.
