Adjusting Camber

CAUTION: On vehicles equipped with the Porsche M 030 Sport Type Suspension, take care not to bend the front brake pipe when adjusting camber.
  1. Remove brake cooling duct from control arm. This makes the eccentric bolt and clamping bolt accessible.
  2. Turn the eccentric bolt (See Fig 1 ) until camber is at specification. See ALIGNMENT SPECIFICATIONS  .

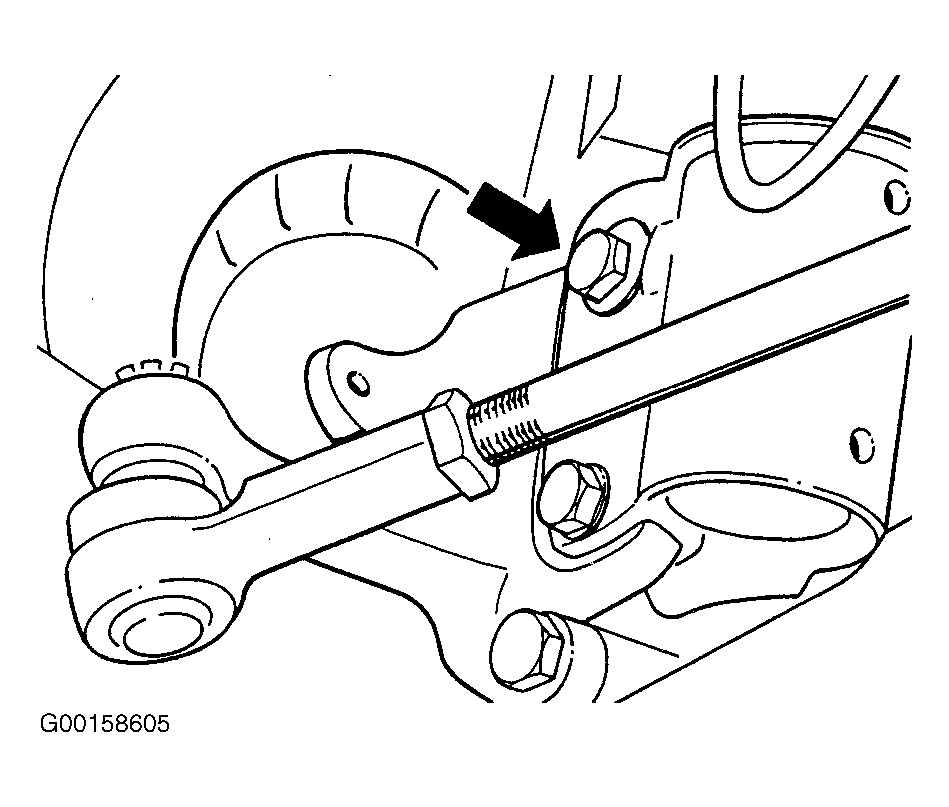

    Fig 1: Adjusting Camber
    G00158605Courtesy of PORSCHE OF NORTH AMERICA, INC.
