Adjusting Caster

  1. Remove undercar paneling. This makes the caster eccentric accessible.
  2. Loosen the self-locking nuts at caster eccentrics. See Fig 1 .
  3. Adjust using either a 19 mm or 32 mm open-ended wrench (depending on position of eccentrics). See ALIGNMENT SPECIFICATIONS
  4. Use correct tightening torques when finished with adjustments. See TORQUE SPECIFICATIONS  .

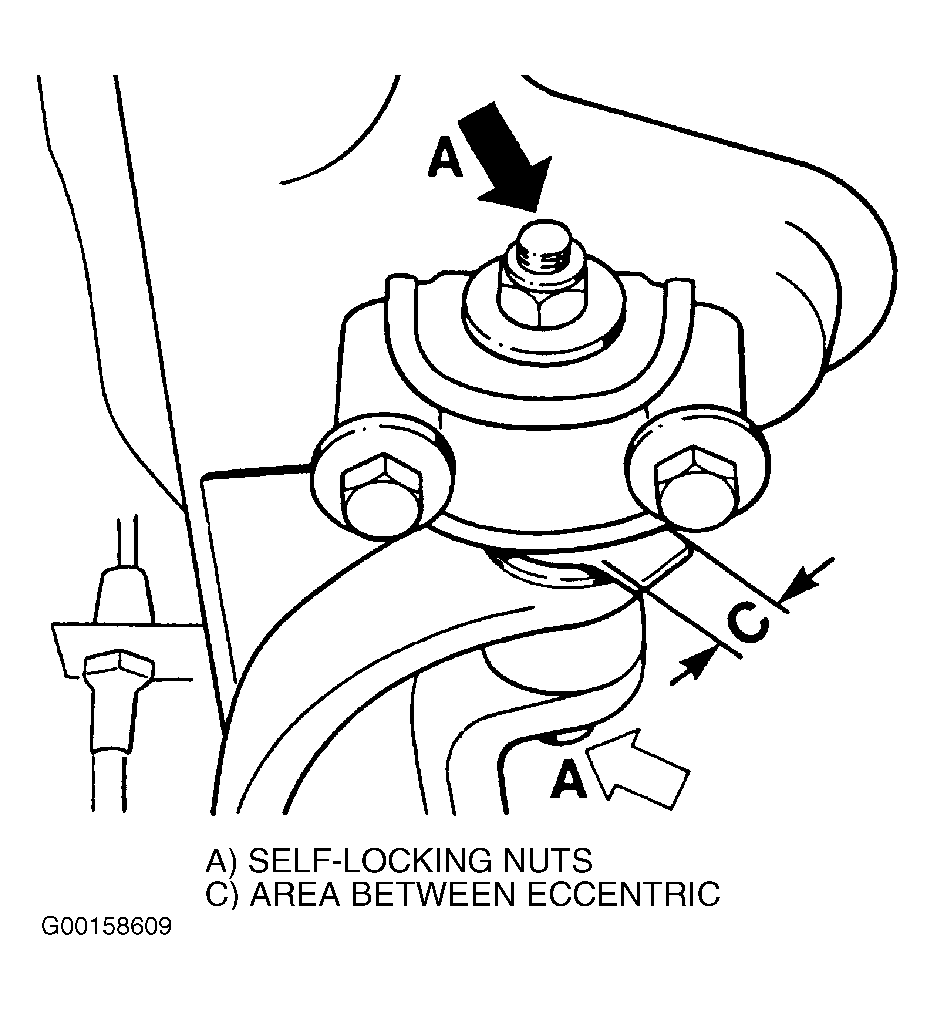

Fig 1: Adjusting Caster
G00158609Courtesy of PORSCHE OF NORTH AMERICA, INC.
