Ride Height Specifications

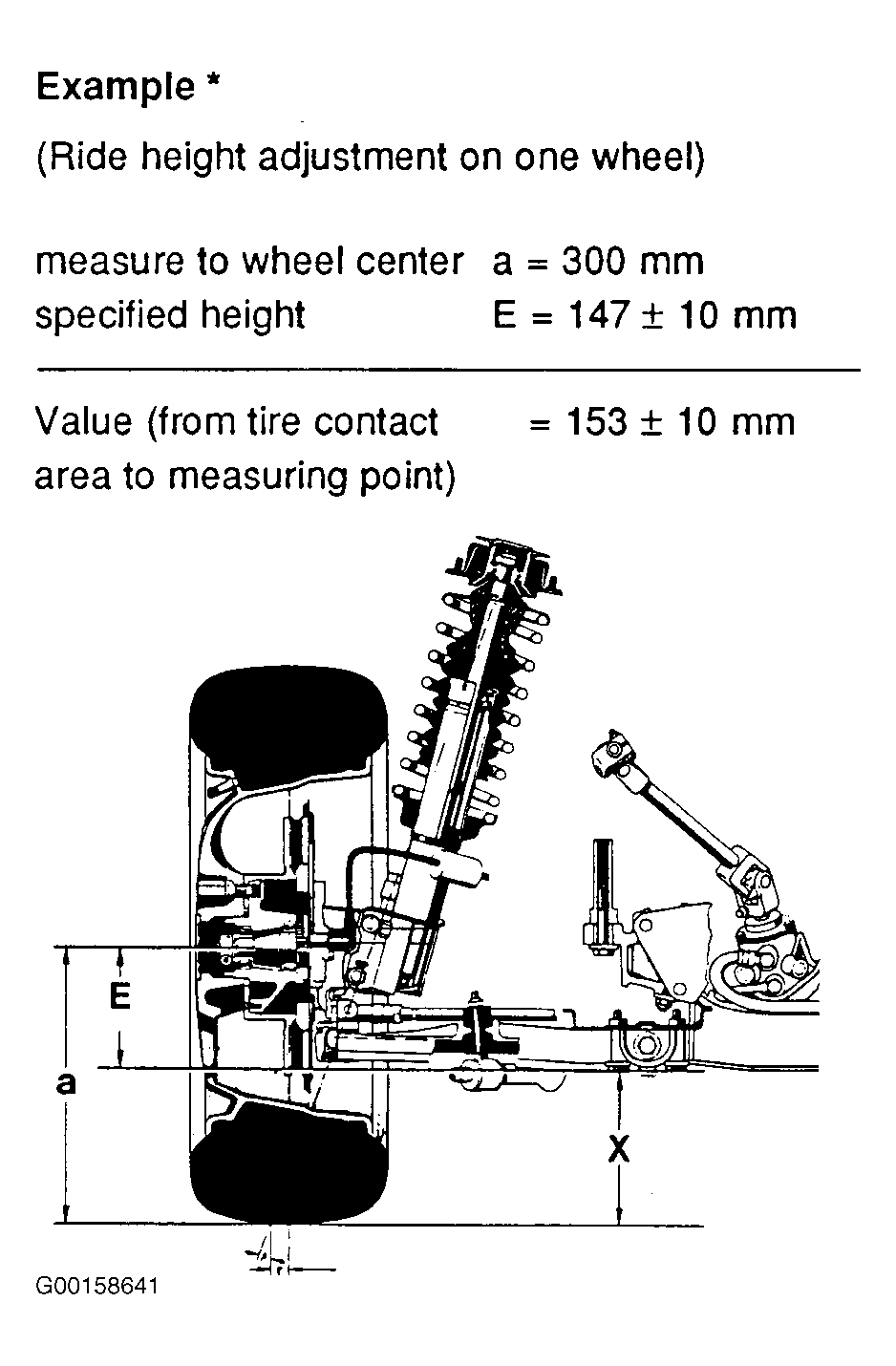

Fig 1: Front-End Ride Height Measurements

G00158641

Courtesy of PORSCHE OF NORTH AMERICA, INC.

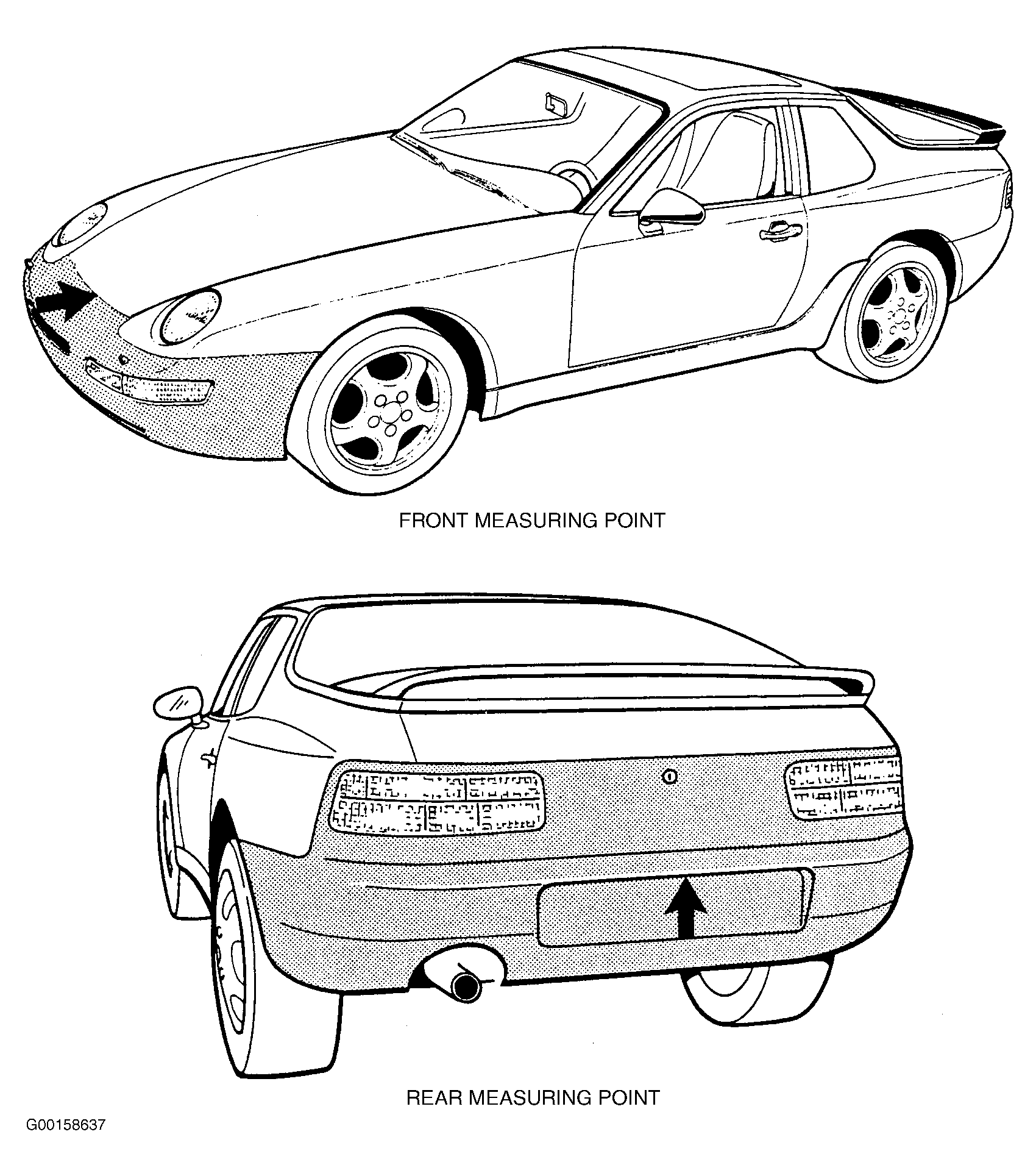

Fig 2: Identifying Body Measuring Points

G00158637

Courtesy of PORSCHE OF NORTH AMERICA, INC.

RIDE HEIGHT SPECIFICATIONS

Application

⁽¹⁾ Spring Brace Inclination (Degrees)

⁽²⁾ Height Setting (mm)

Front Axle

Coupe

N/A

127 +/- 10

Cabriolet

N/A

127 +/- 10

CS

N/A

147 +/- 10

M 030

N/A

127 +/- 10

CS M 030

N/A

127 +/- 10

Rear Axle

Coupe

18.5

-17 +/- 10

Cabriolet

Manual

19.5

-17 +/- 10

Tiptronic

20.5

-17 +/- 10

CS

14.0

-37 +/- 10

M 030

Manual

14.0

-17 +/- 10

Tiptronic

15.0

-17 +/- 10

CS M 030

9.0

-37 +/- 10

⁽¹⁾	Maximum difference left to right is .5°.

⁽²⁾	Maximum ride height difference left to right is 10 mm. See Fig 2 for bumper height measurement points to check ride height. Rear-end ride height should be 543 +/- 20 mm. Front-end ride height should be 611 +/- 20 mm.
