Adjusting Camber

  1. Remove stabilizer mount bolt at the trailing arm. For accessibility, it may also be necessary to remove the stabilizer mount from the stabilizer as well.
  2. Turn the eccentric bolt and adjust camber to specifications. See Fig 1 . See ALIGNMENT SPECIFICATIONS

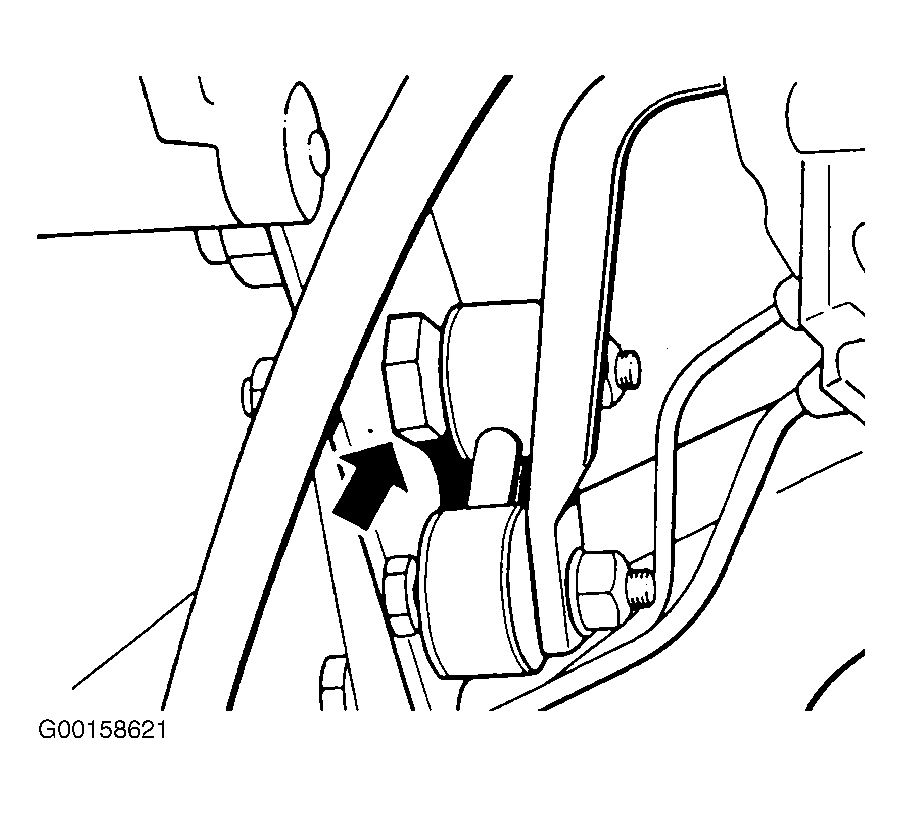

    Fig 1: Adjusting Rear Camber
    G00158621Courtesy of PORSCHE OF NORTH AMERICA, INC.
