Camber Adjustment: Front

Slightly loosen 2 nuts securing strut to steering knuckle. Install Camber Adjusting Eccentric (9265) over upper strut-to-steering knuckle bolt. See Fig 1 . Turn eccentric until front camber is set to specification. See WHEEL ALIGNMENT SPECIFICATIONS  . Tighten nuts to specification. See TORQUE SPECIFICATIONS  .

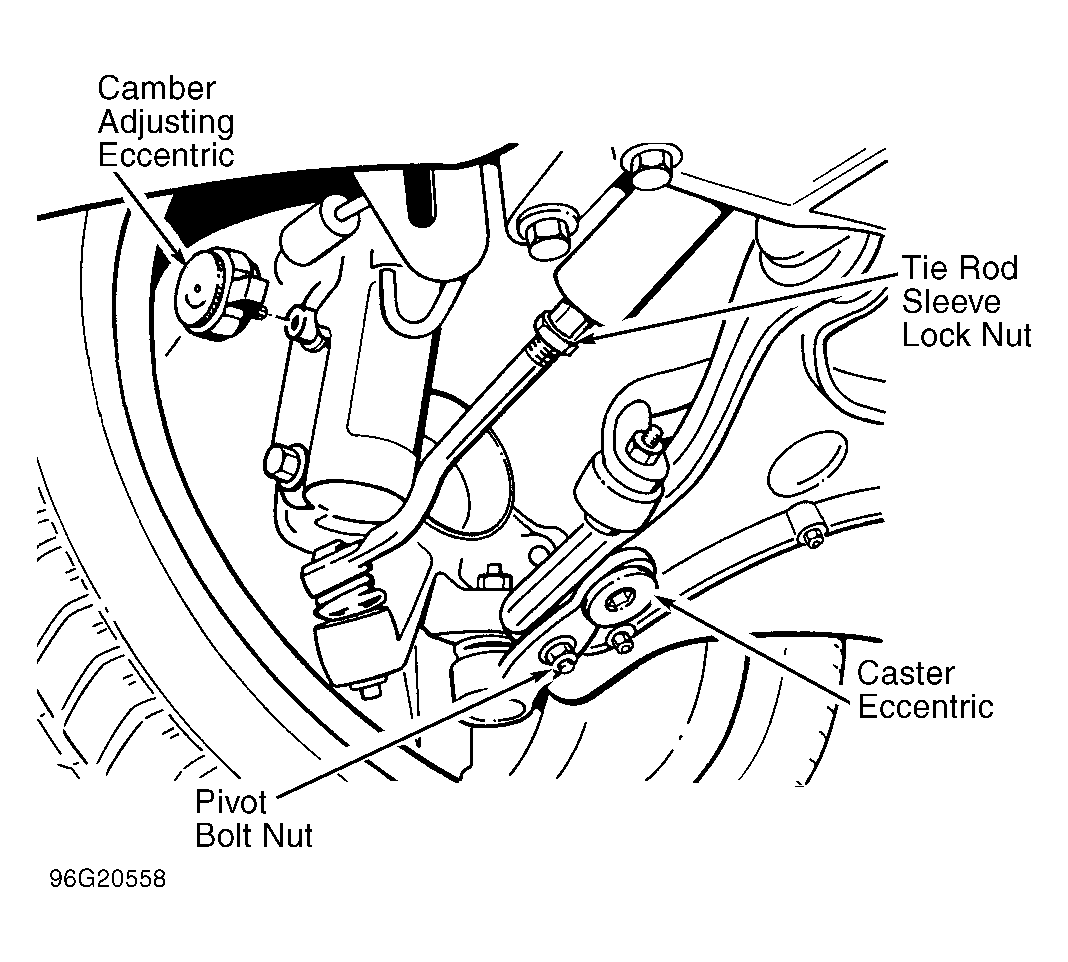

Fig 1: Adjusting Front Camber, Caster & Toe-In
G96G20558Courtesy of PORSCHE OF NORTH AMERICA, INC.
