Rear Toe-In

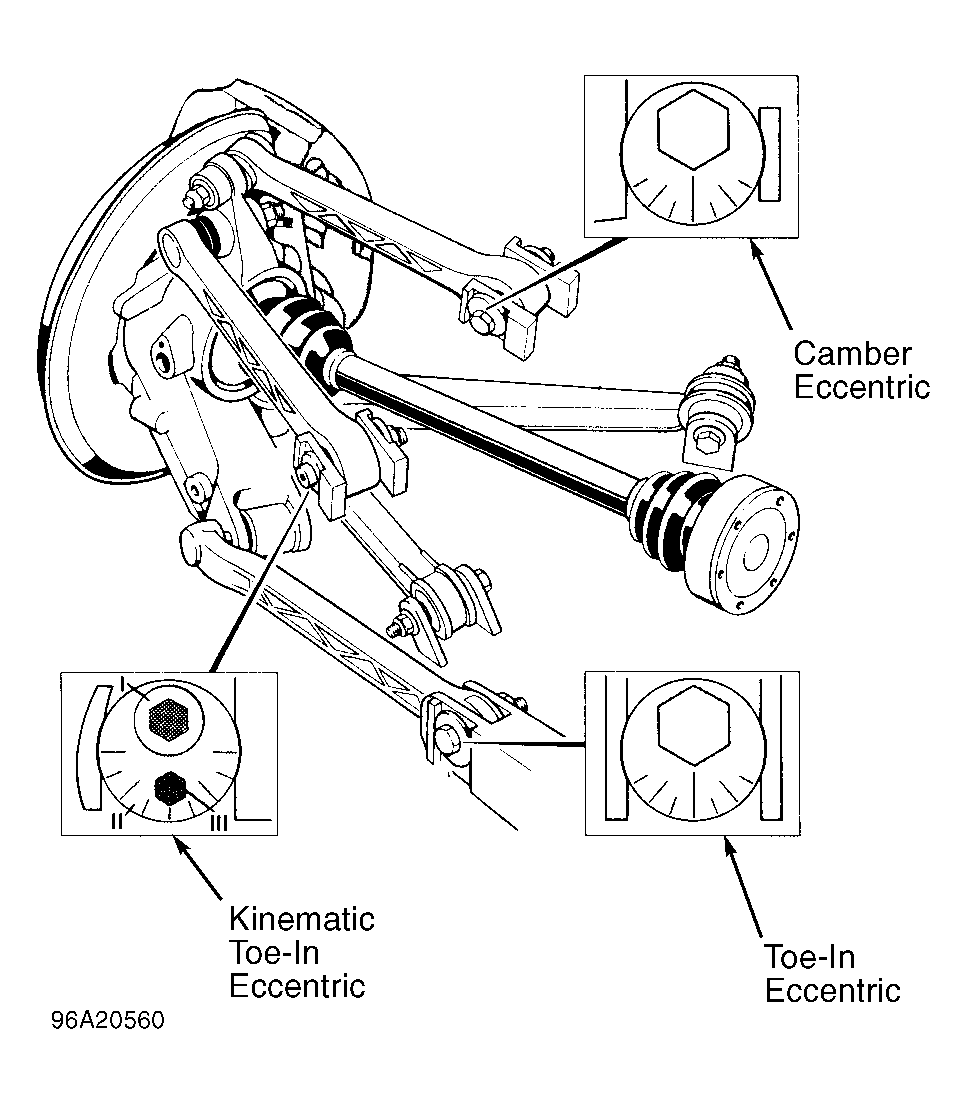

Remove cover for access to rear toe-in eccentric. See Figure . Loosen toe-in eccentric nut. Turn toe-in eccentric nut until rear toe-in is set to specification. See WHEEL ALIGNMENT SPECIFICATIONS  . Tighten eccentric nut to specification. Refer to TORQUE SPECIFICATIONS  .
