Fuse Block: Application and ID





Fuse Assignments

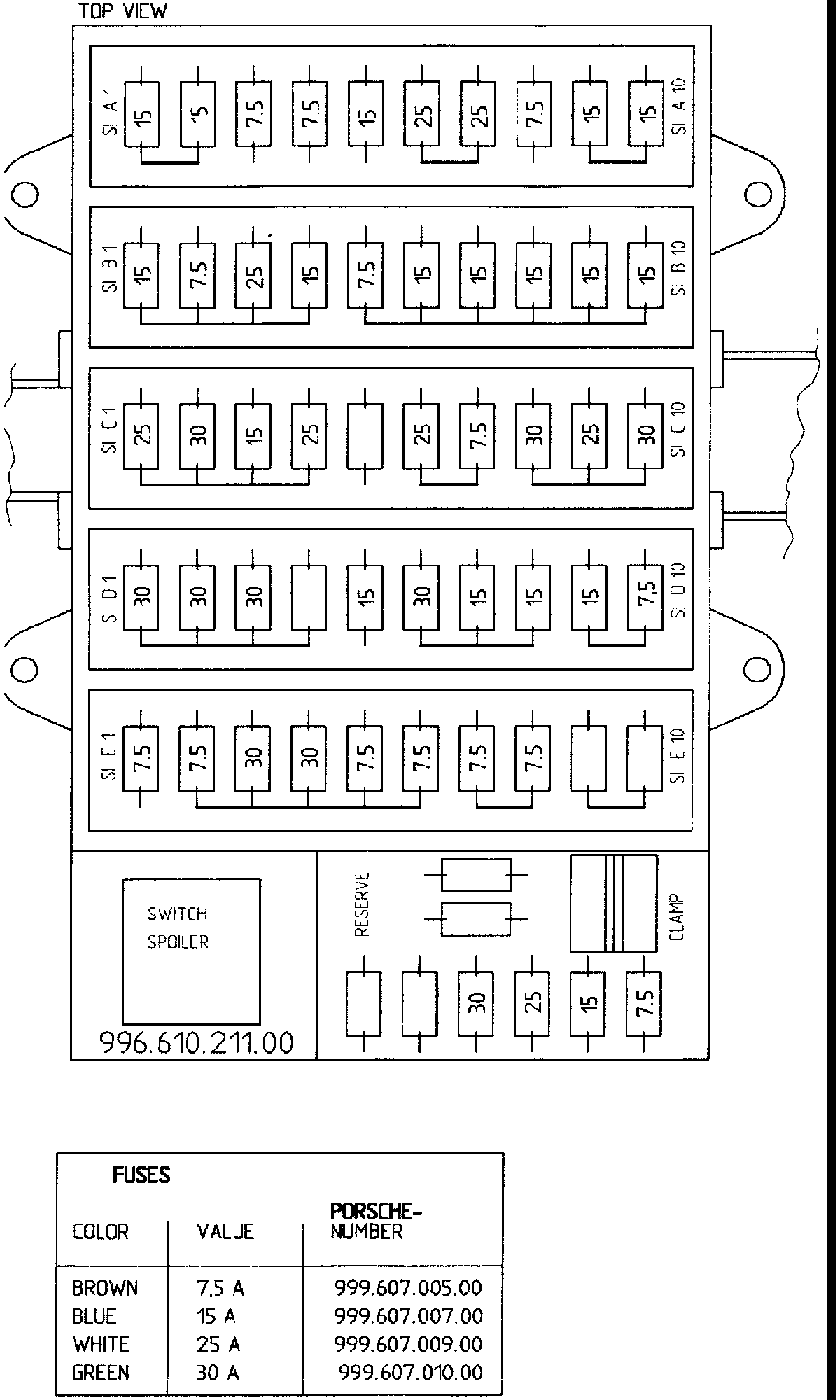

Fuse Block - Top View:





Fuses - Color, Rating, Part Number:

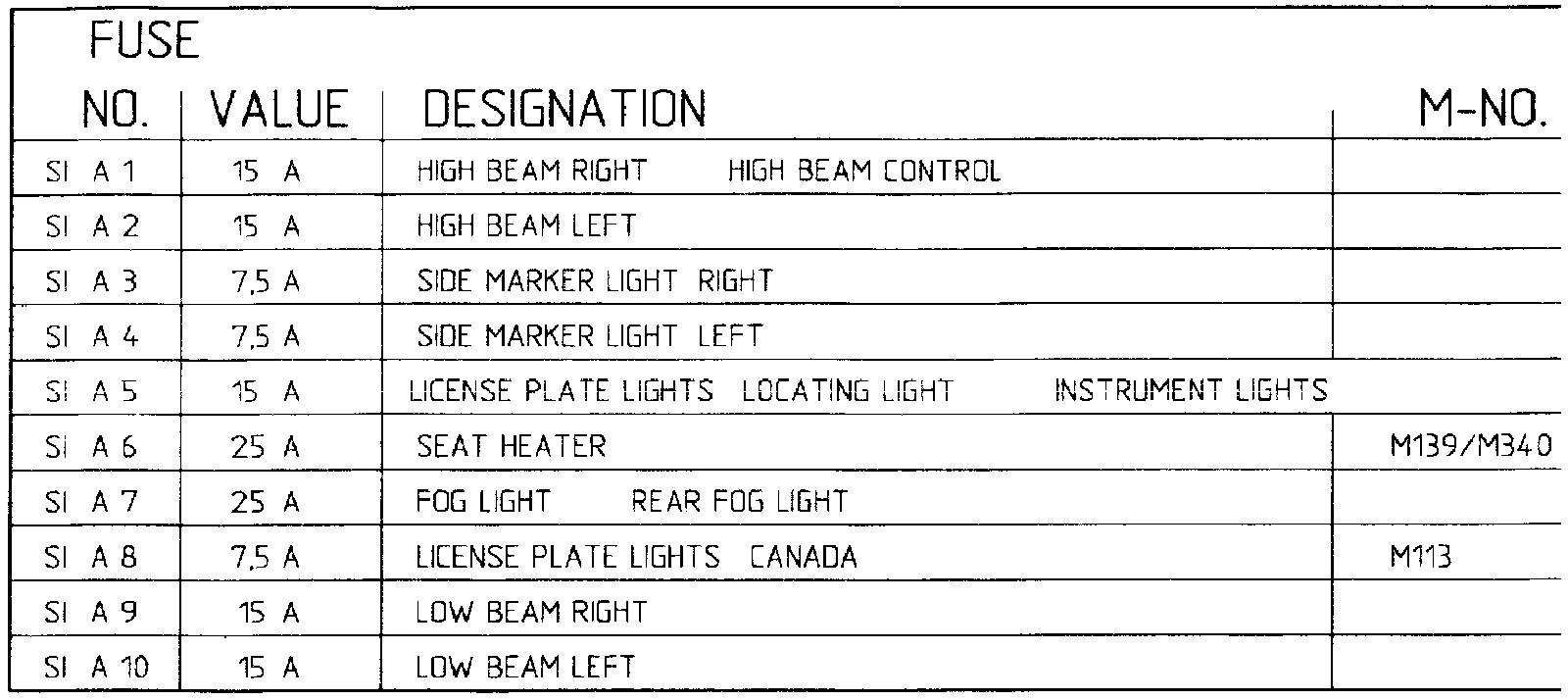

Fuse Holder A:

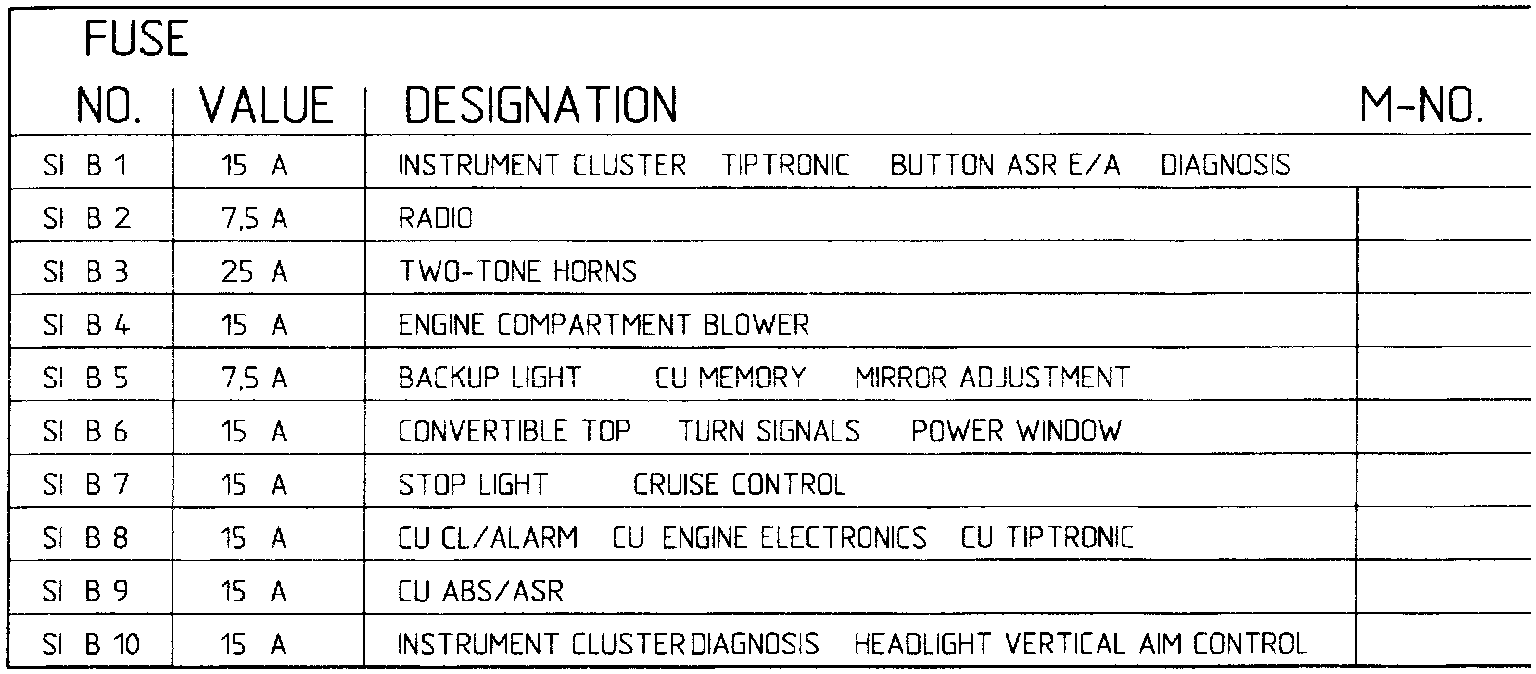

Fuse Holder B:





Fuse Holder C:

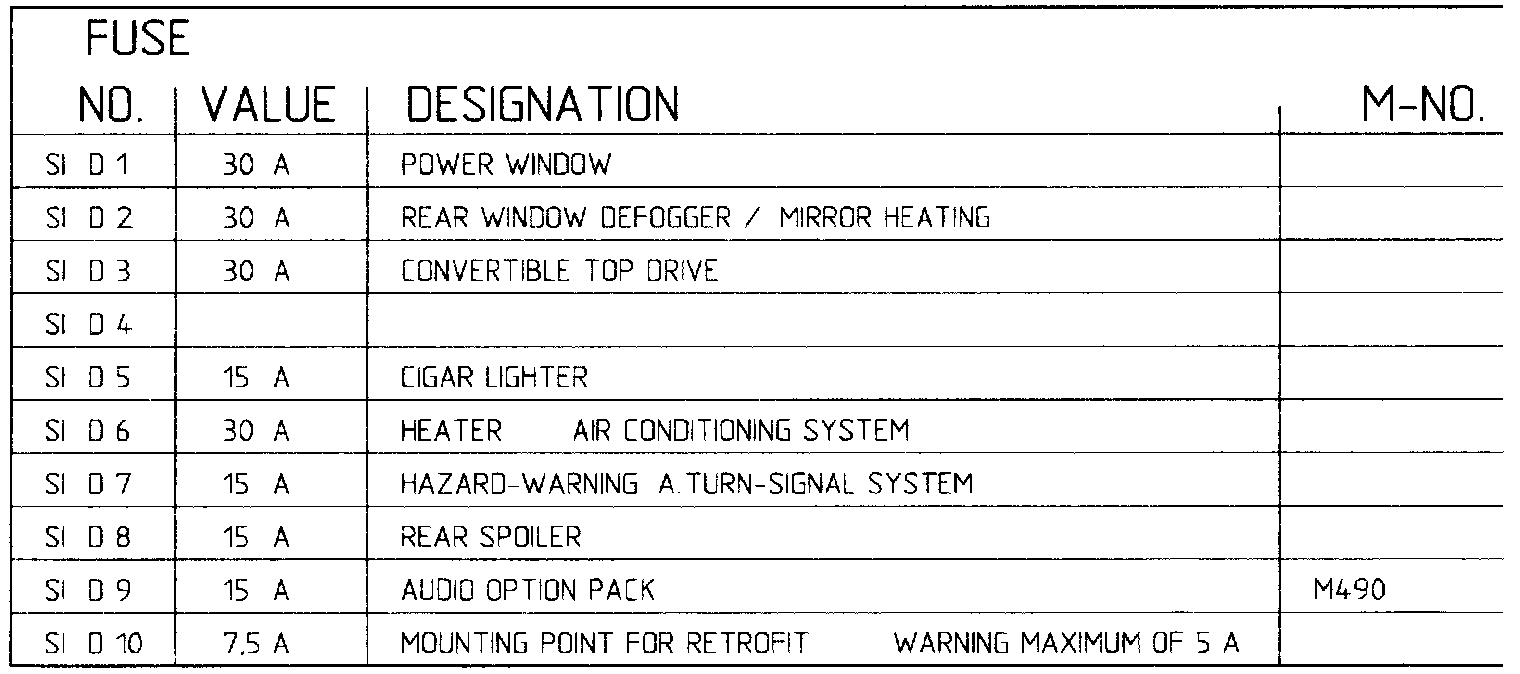

Fuse Holder D:

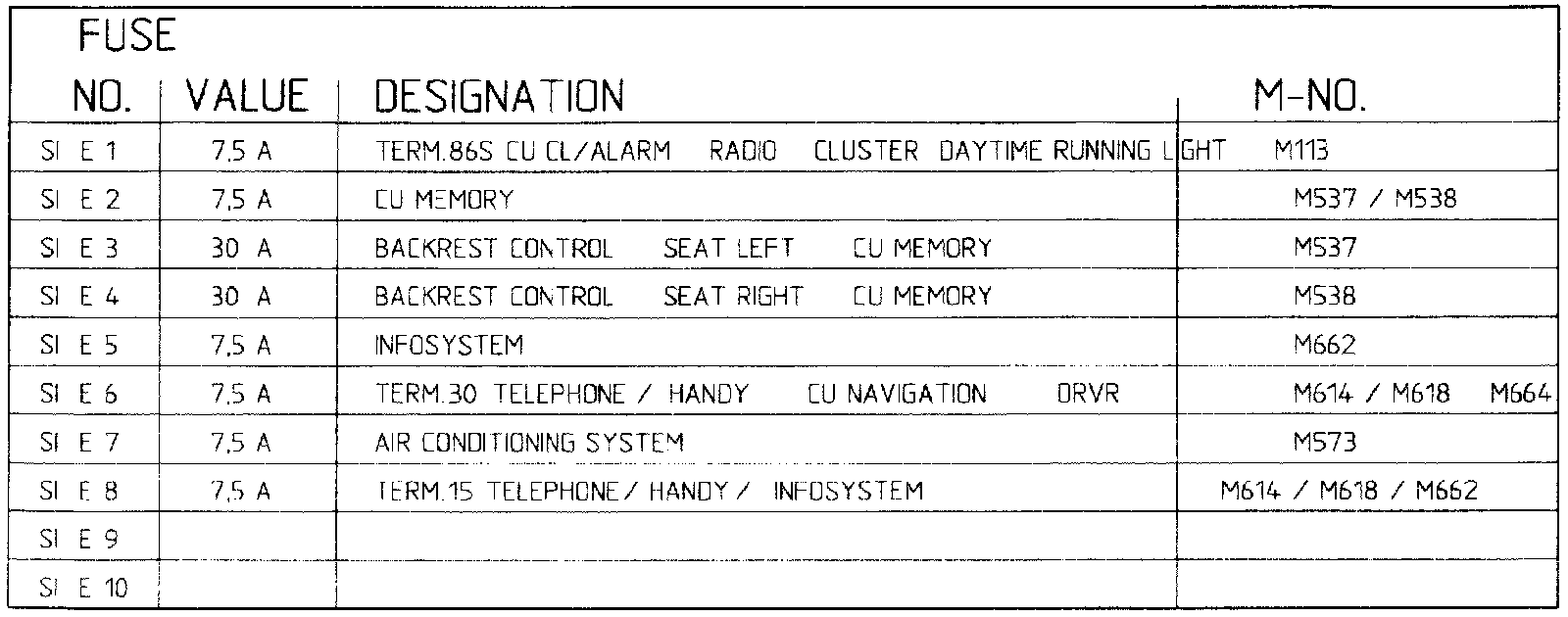

Fuse Holder E:





Fuse Holder - Various:
