Connector Locations

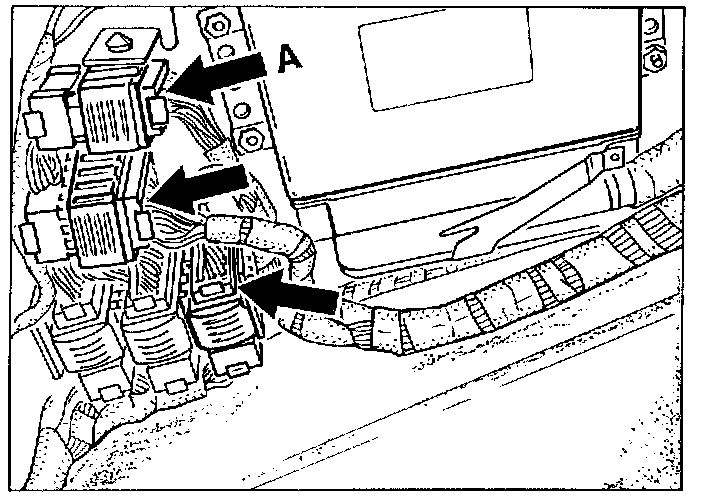

Plug connection X 3/2:

Image Legend:
A = Plug connection X 3/2

Plug connection X 3/2 (21-pole/blue) is located next to the ECM (DME control module) on the rear wall in the rear luggage compartment.
