DME Diagnosis: Tools: Notes

The following equipment is required for troubleshooting:

1. Porsche System Tester 2

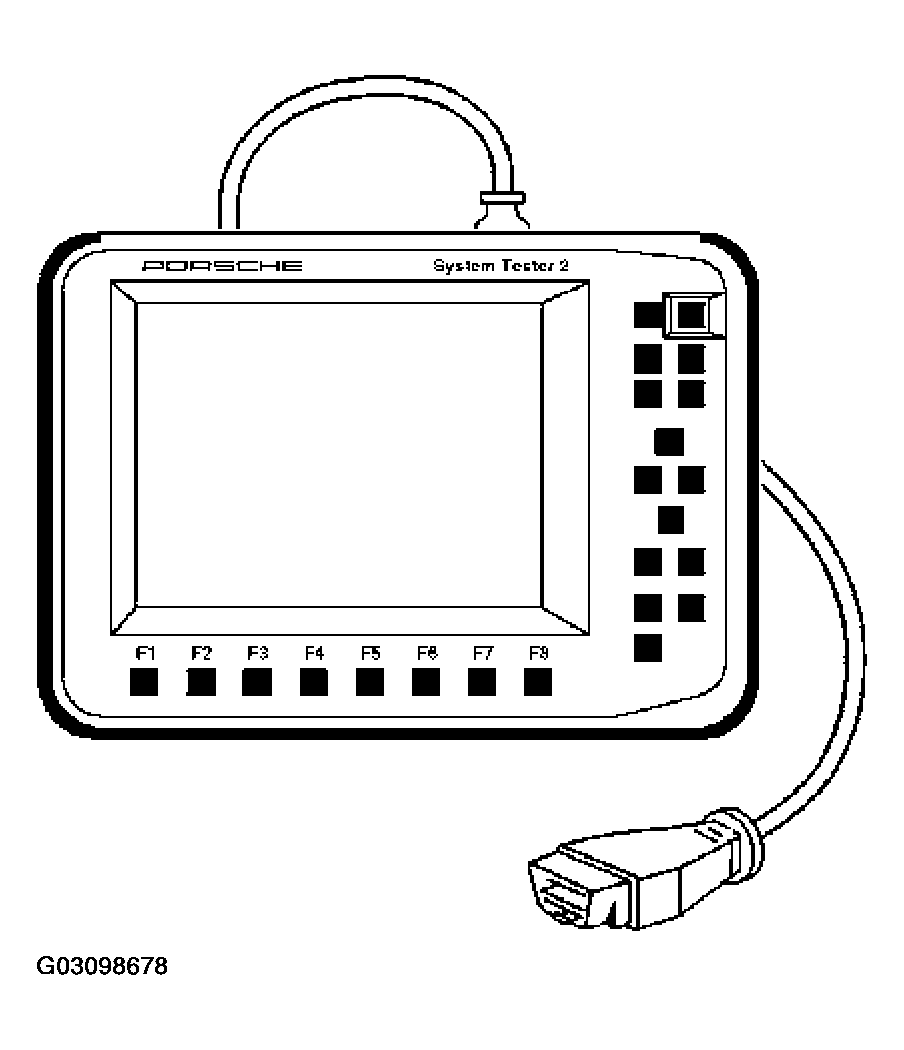

   Fig 1: Identifying Porsche System Tester 2

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
2. Test adapter 9616
   NOTE: The test adapter is connected between the pulled-off DME control module connector and the DME control module. It protects the contracts of the control module connector and helps the user to find the individual pins.

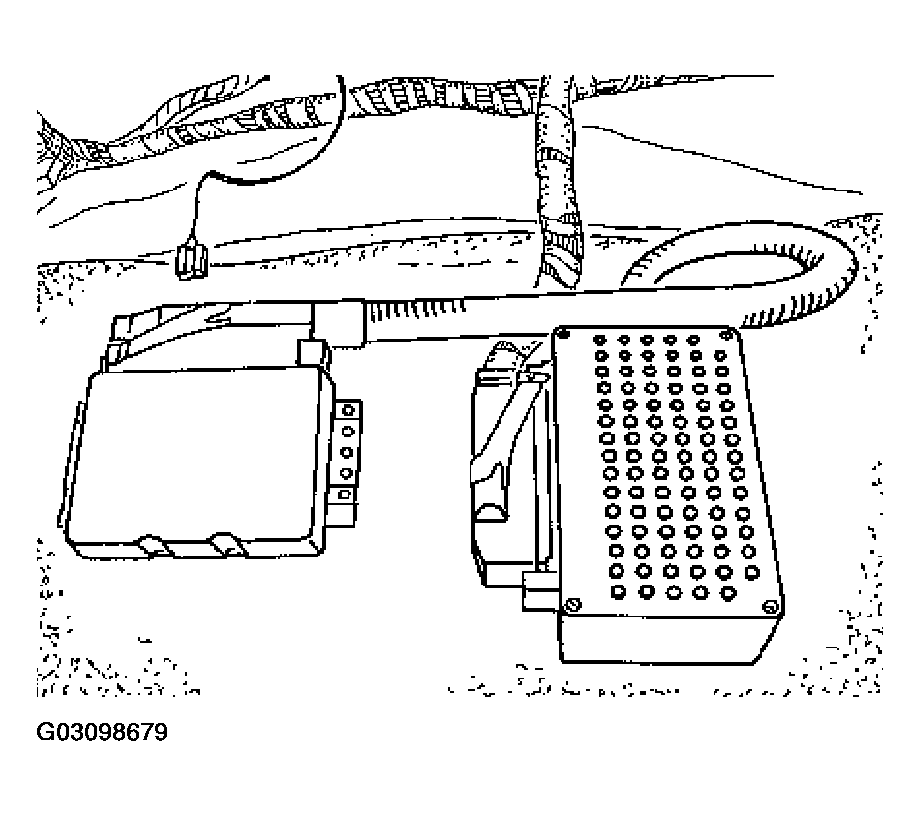

   Fig 2: Identifying Test Adapter 961

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
3. Commercially available digital multimeter

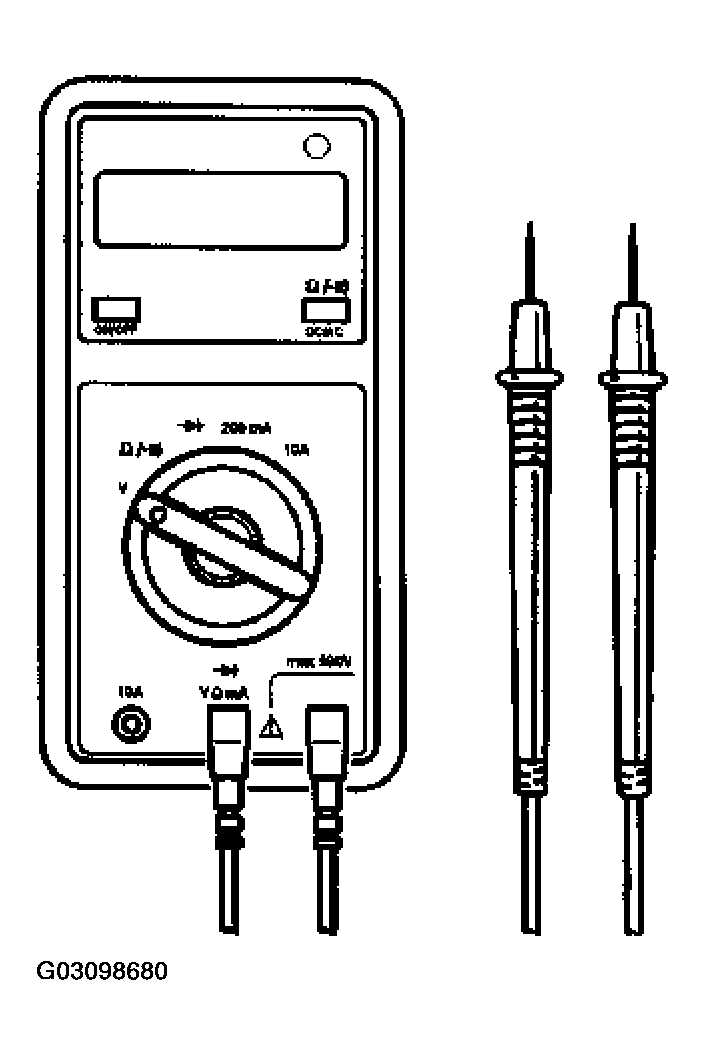

   Fig 3: Identifying Commercially Available Digital Multimeter

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
4. Relay extractor 9235
   Fig 4: Identifying Relay Extractor 923

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
