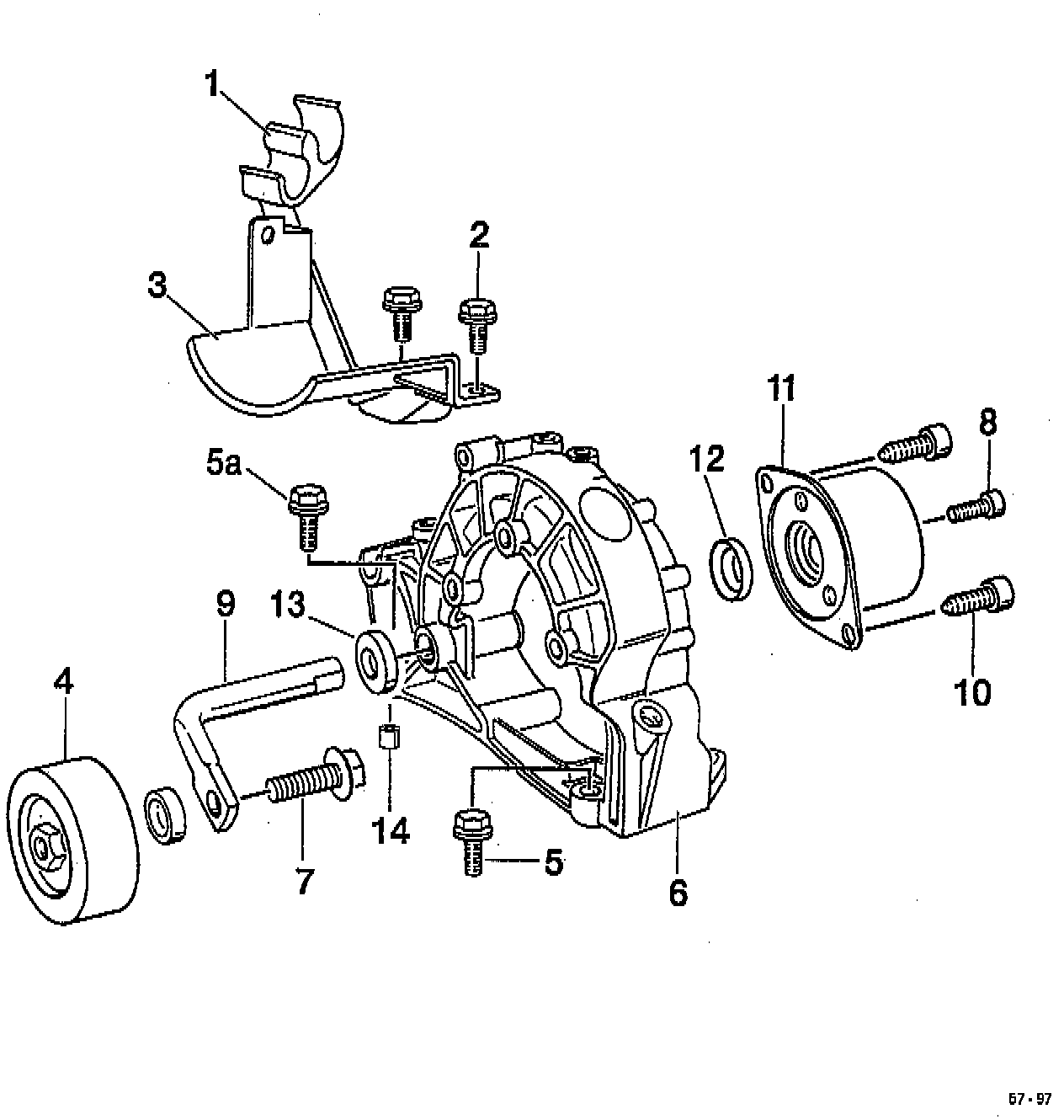

Drive Belt Tensioner

LEGEND
1 A/C Line Holder
2 Hexagon Head Bolt 6x16 mm
3 Cover
4 Tensioning Roller
5 Hexagon Head Bolt 8x25 mm
5a Hexagon Head Bolt 8x35 mm
6 Bracket For Hydraulic Pump And Belt Tensioner
7 Hexagon Head Bolt (micro-encapsulated)
8 Pan Head Screw
9 Lever
10 Pan Head Screw
11 Tensioning Element
12 Dust Cap
13 Dust Cap
