Relay Carrier/Support Locations

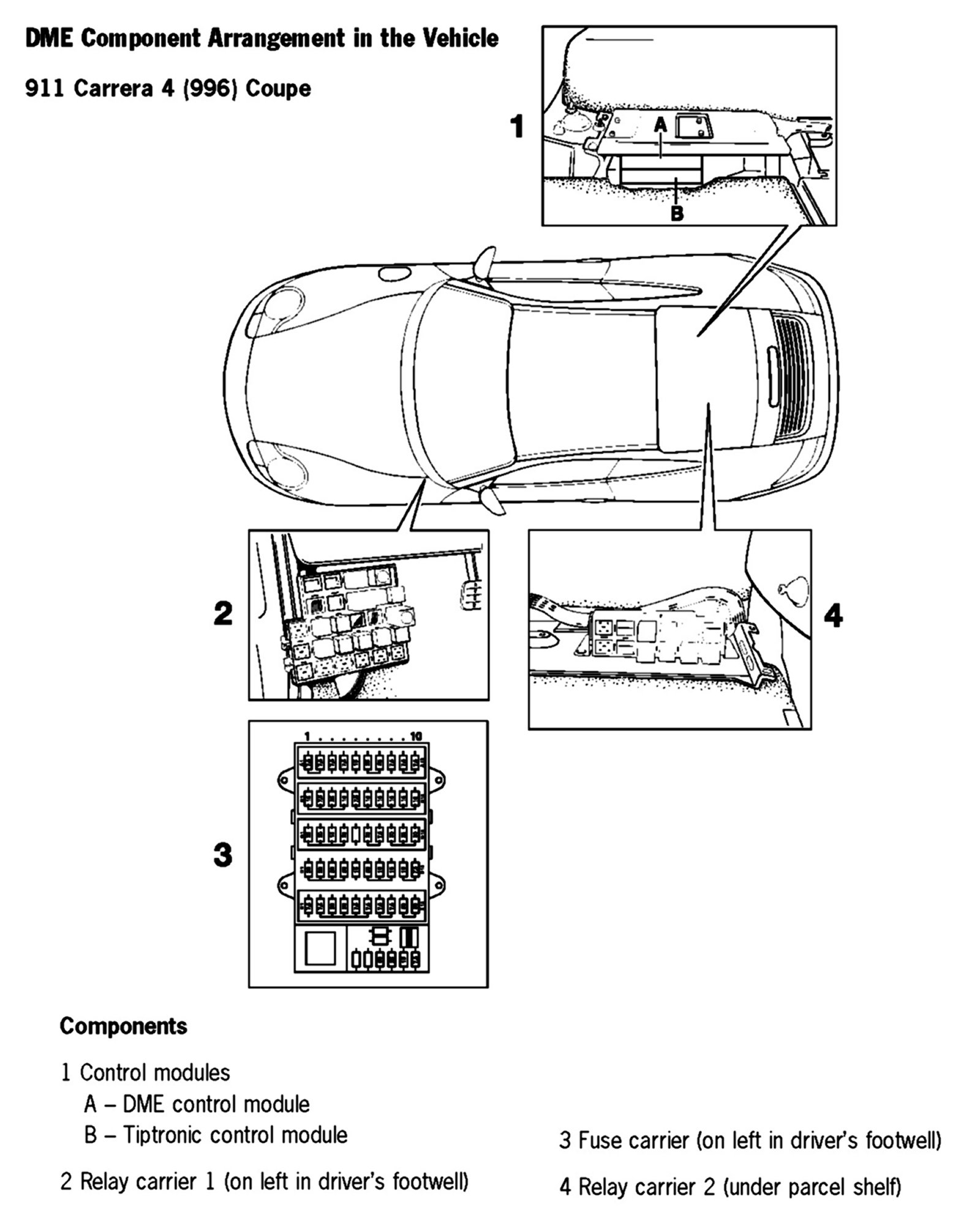

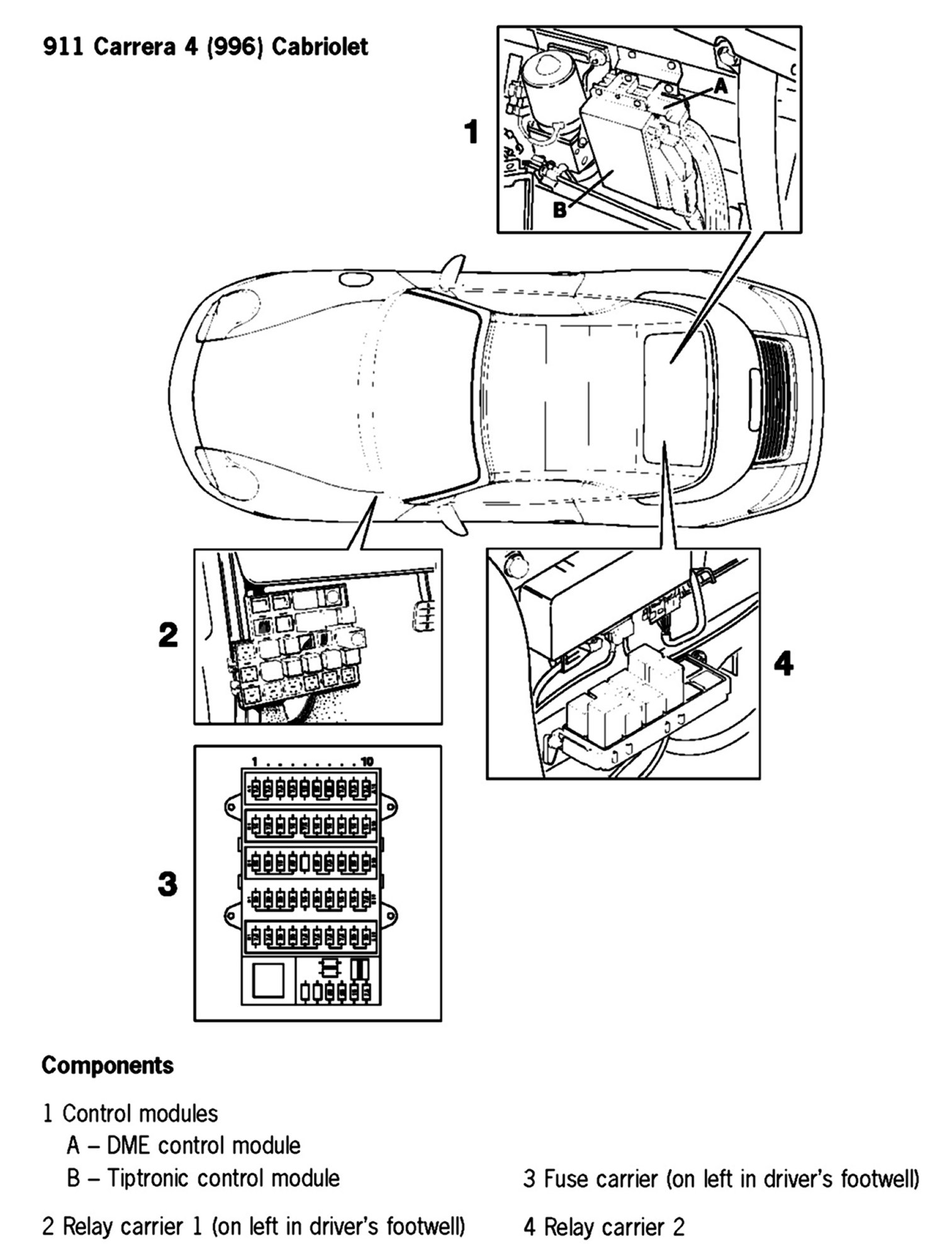

Relay Support Locations









Relay holder 1

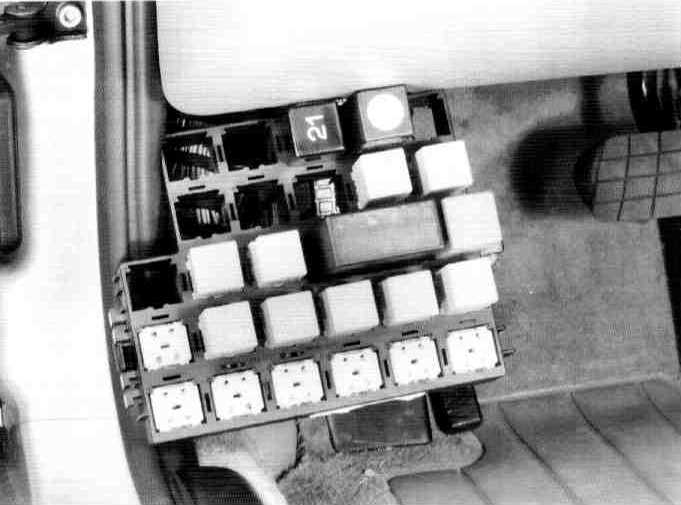

Relay Holder 1:

Relay holder 1 is located above the fuse holder, below the control panel.

To allow easier access, the relay holder can be loosened, unclipped, and then lowered into the footwell.


Relay holder 2

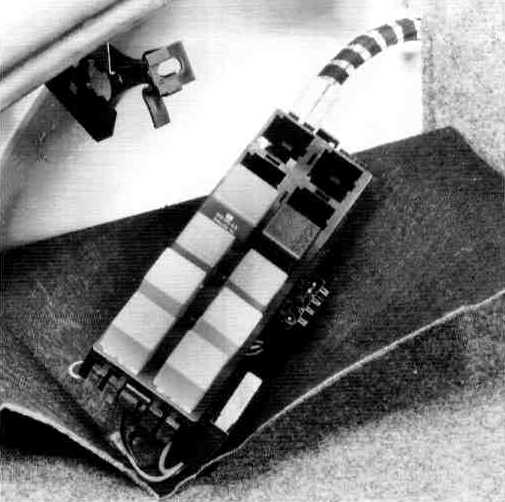

Relay Holder 2 (Shown Removed):

Relay holder 2 is located on the left-hand side of the rear luggage compartment. It can be unclipped and pulled out.
