DTC P1503: Throttle Jacking Unit, Position Error - Signal Implausible: Wiring Diagram

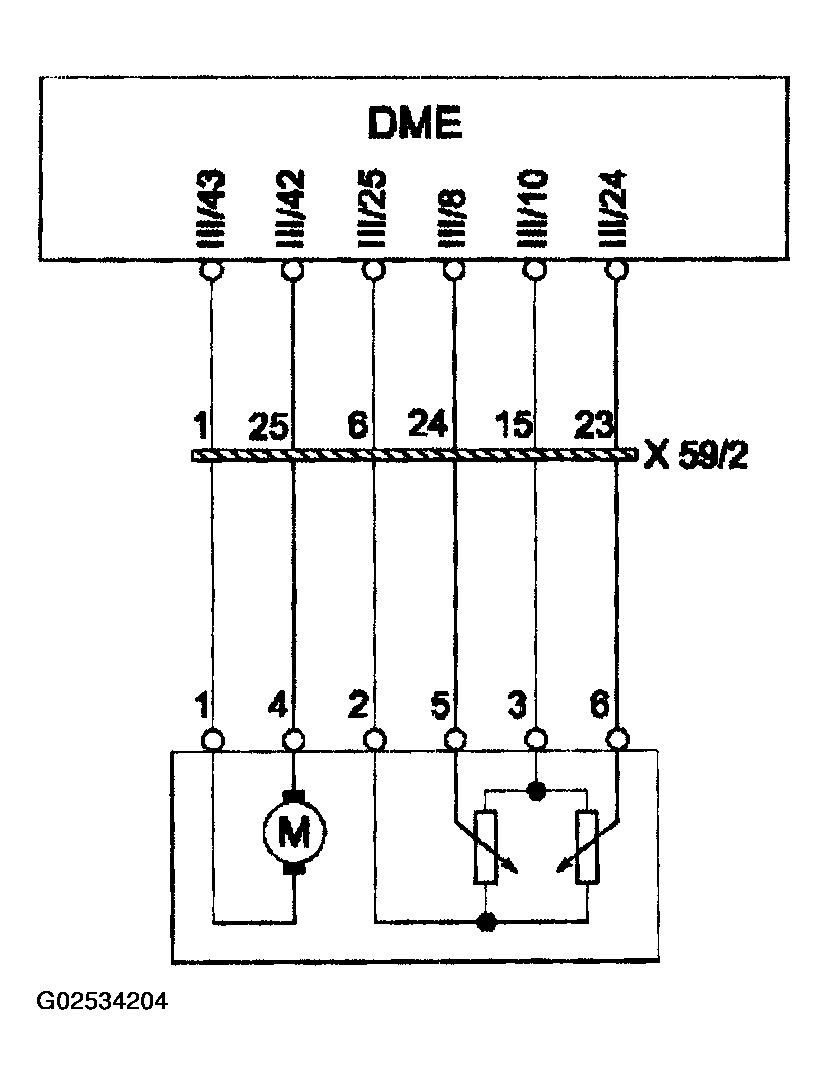

Fig 1: DTC P1503 Wiring Diagram
G02534204Courtesy of PORSCHE OF NORTH AMERICA, INC.
