DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P1505: Throttle Jacking Unit, Control Range - Above Limit
>>
Diagnosis Procedure
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnosis Procedure: Notes

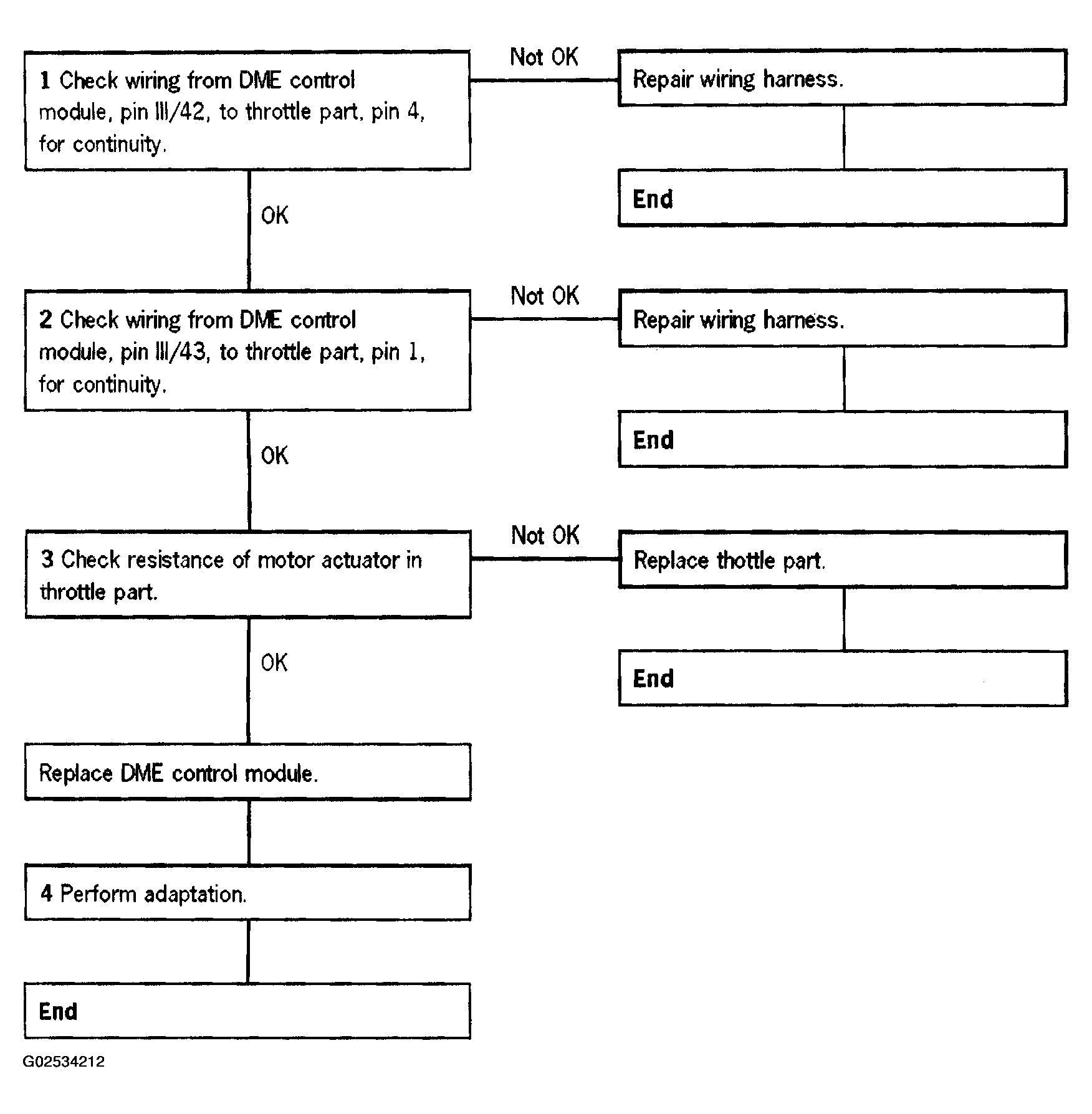

Fig 1: DTC P1505 Diagnostic Procedure (Open Circuit)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

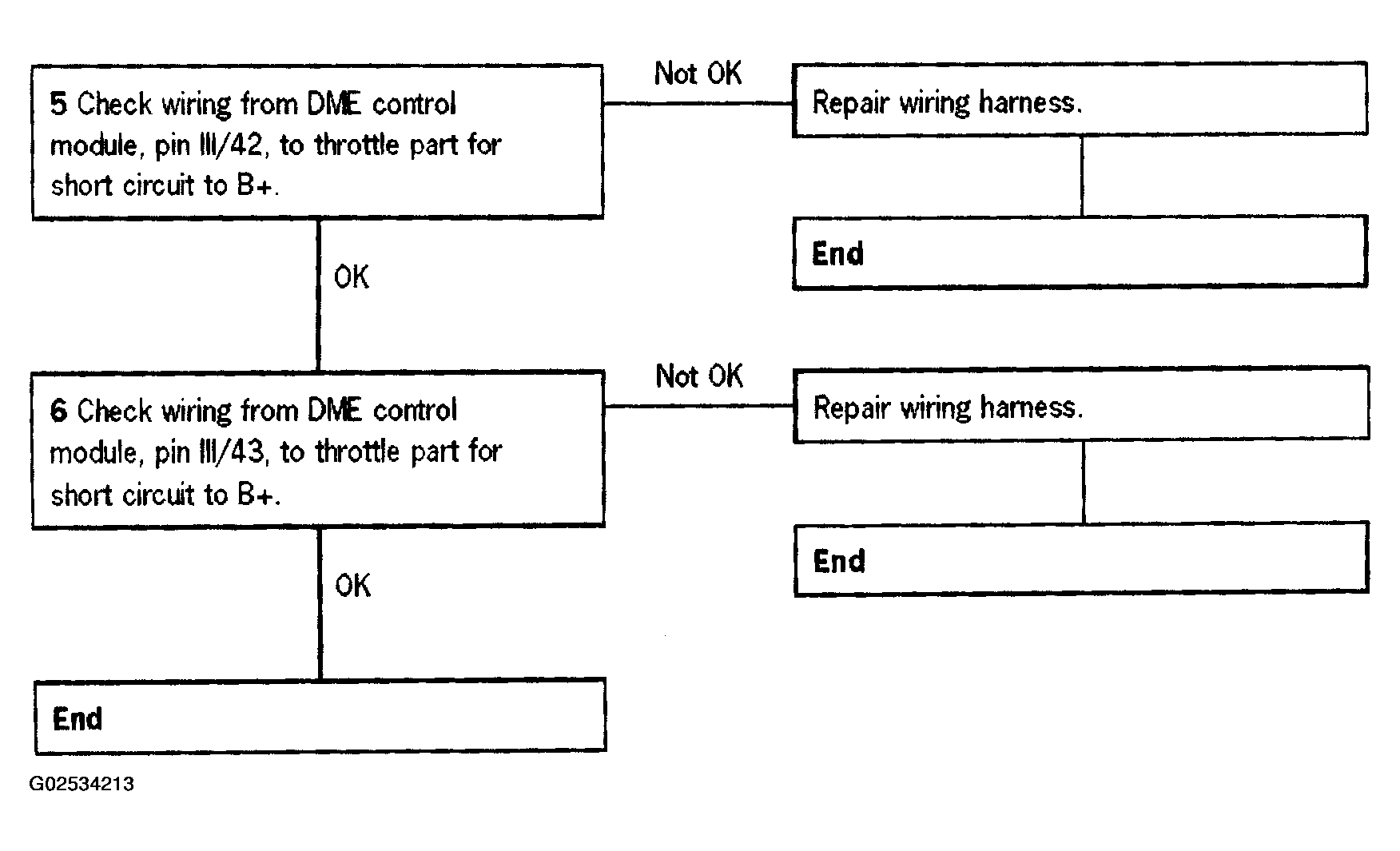

Fig 2: DTC P1505 Diagnostic Procedure (Below Limit)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

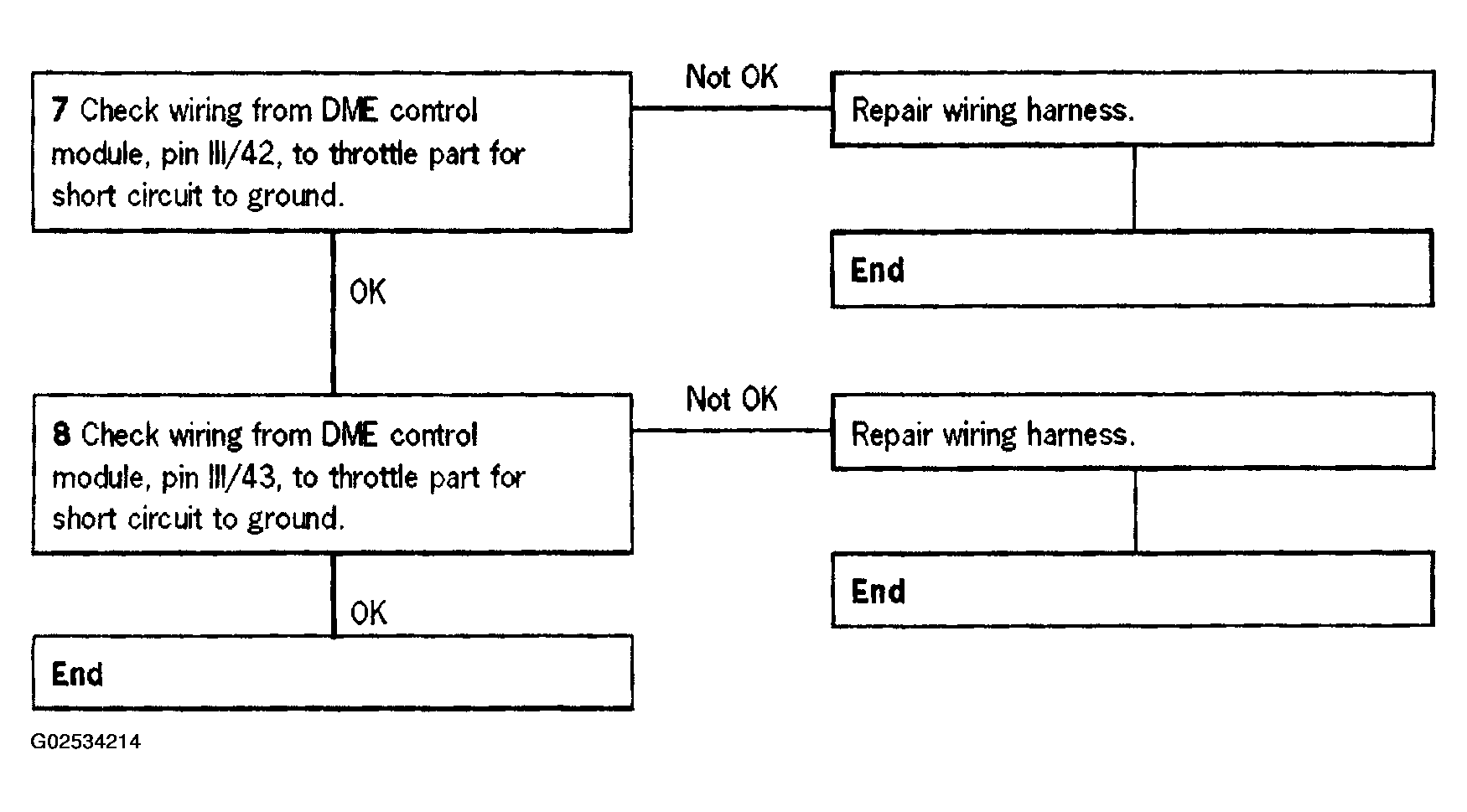

Fig 3: DTC P1505 Diagnostic Procedure (Above Limit)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
