DME 7.2 - 911 CARRERA & BOXSTER
>>
DTC P1503: Throttle Jacking Unit, Position Error - Signal Implausible
>>
Diagnosis Procedure
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnosis Procedure: Notes

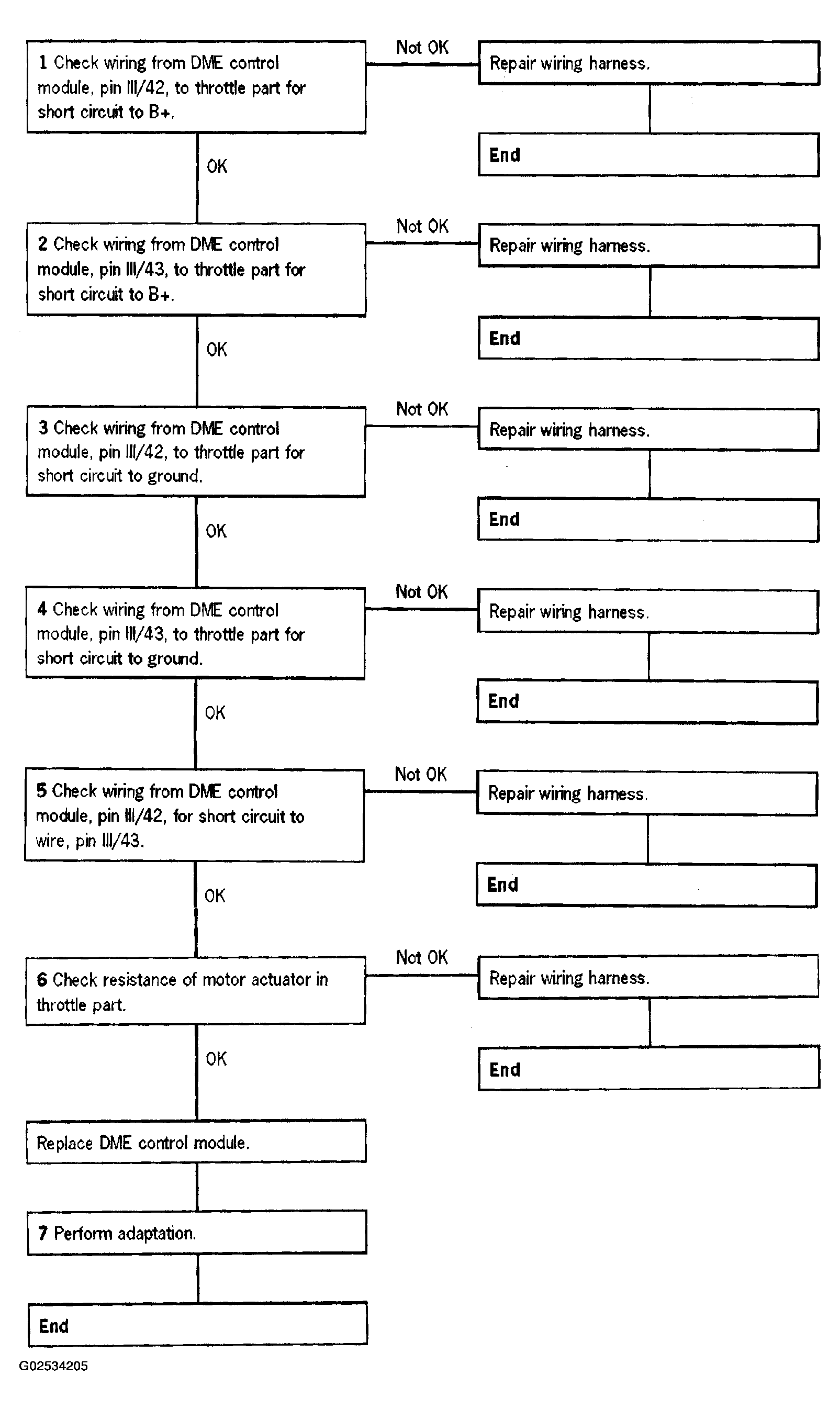

Fig 1: DTC P1503 Diagnostic Procedure
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
