Tiptronic diagnosis: Tools

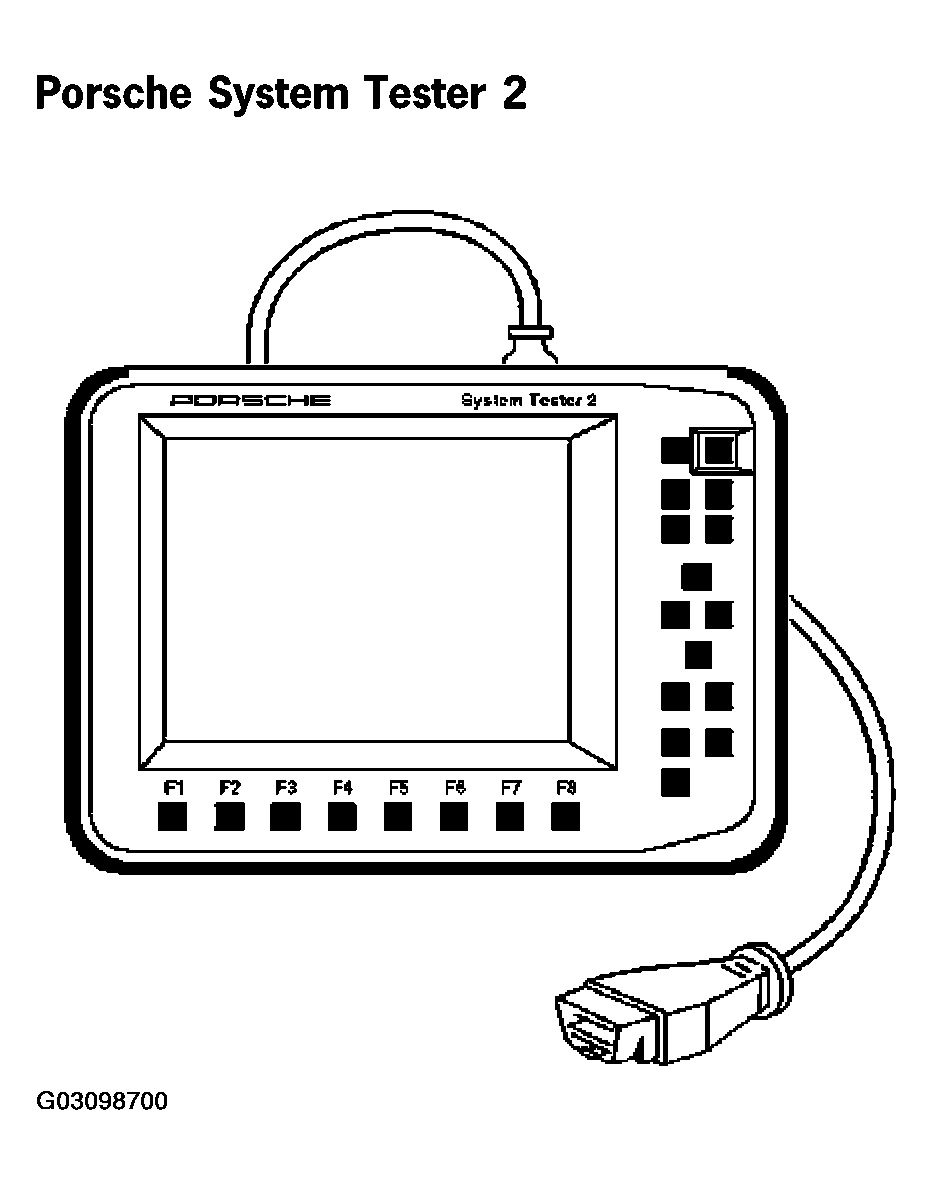

Fig 1: Identifying Porsche System Tester 2

Courtesy of PORSCHE OF NORTH AMERICA, INC.

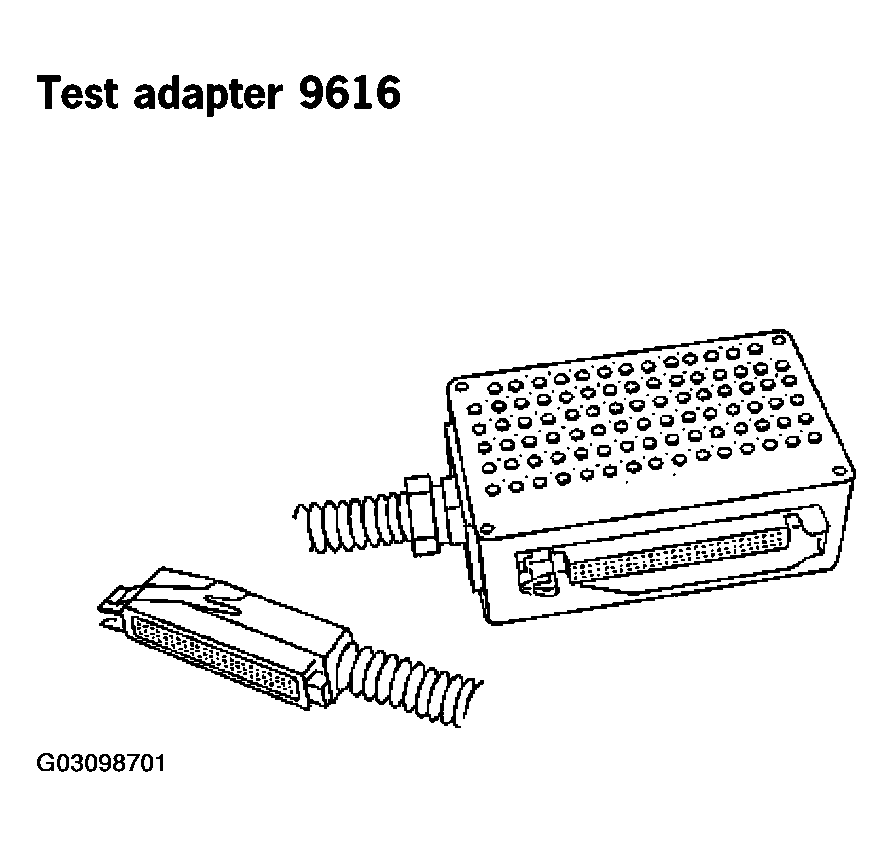

Fig 2: Identifying Test Adapter 9616

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: The test adapter must be used for all tests on electrical leads (for example, transmission control module - connector/sensors).
It does not damage the plug-in contacts and facilitates location of the individual pins.
