Installing Subwoofer

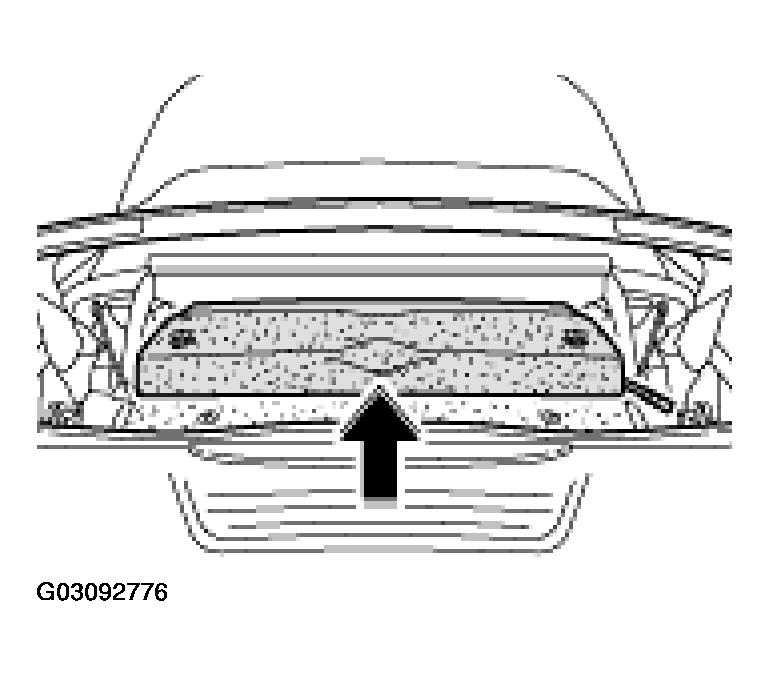

Position the subwoofer from behind on the engine compartment lid.

Fig 1: Positioning Subwoofer From Behind On Engine Compartment Lid
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Engage the tension cables from the tension bow and engage the cloth covering from the convertible top.
Open convertible top to approx. 50%.

Fig 2: Engaging Tension Cables From Tension Bow And Engage Cloth Covering From Convertible Top
Courtesy of PORSCHE OF NORTH AMERICA, INC.

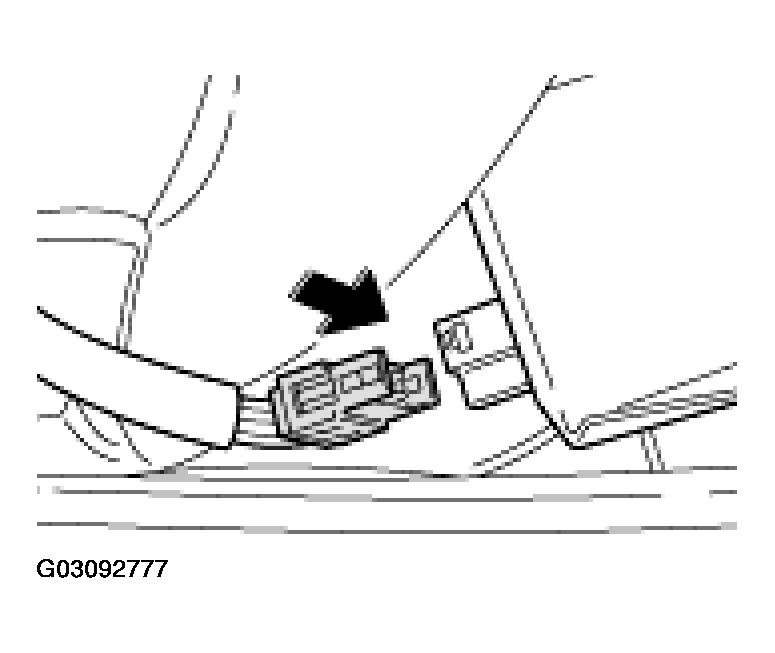

Insert the plug connection from the subwoofer until the connector audibly engages.

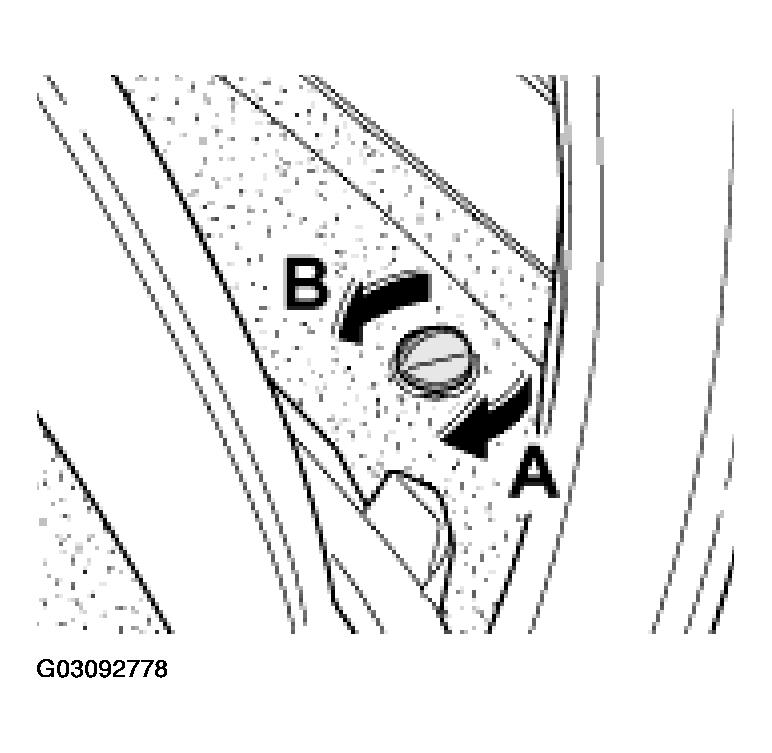

Screw down the plugs on the left and right -A- . See Fig 3 .

Fig 3: Screwing Down The Plugs On The Left And Right
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check subwoofer for tightness and function. Close convertible top.
