Removing And Installing Insulation For Convertible Top Compartment

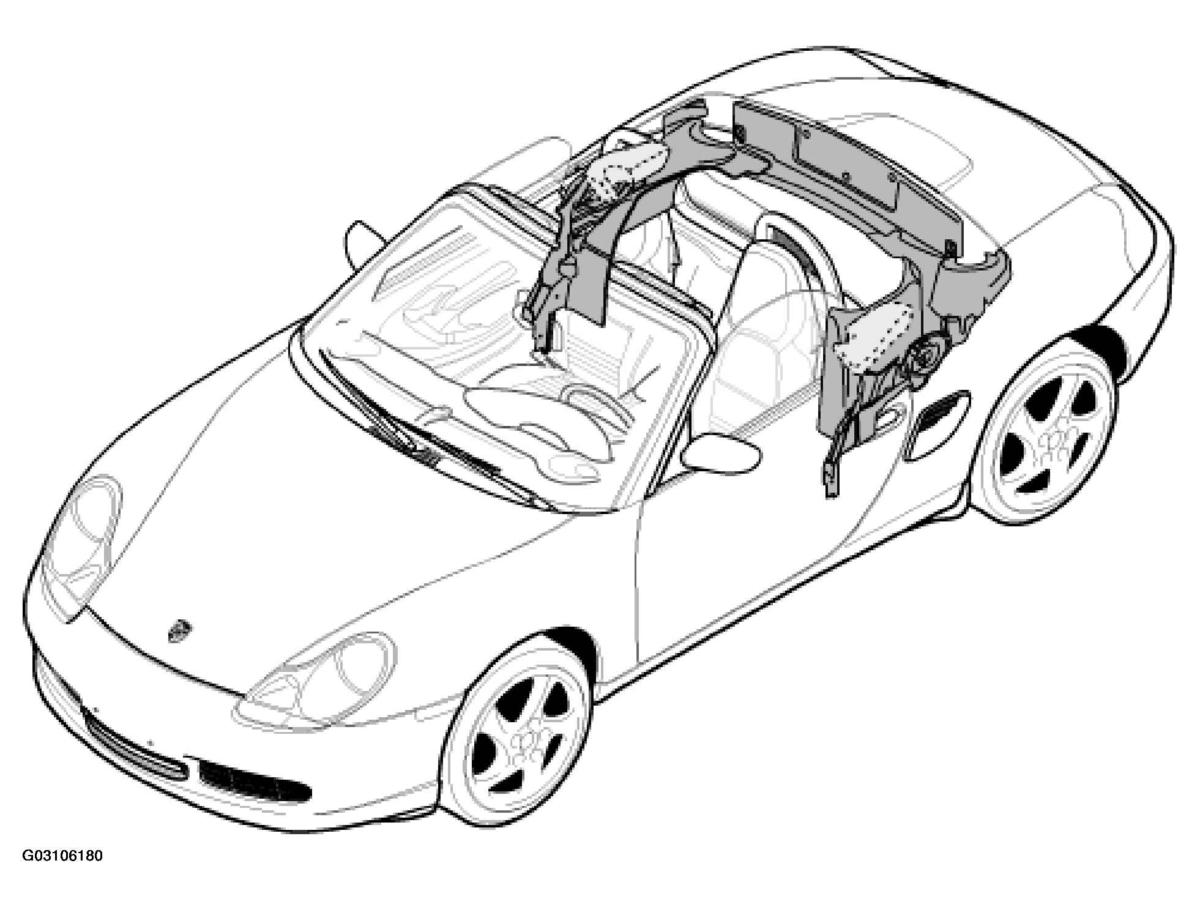

- Before removing the insulation -3, 4, 5, 6, 7, 8- , the following components must be removed. See Fig 2 .
Refer to REMOVING AND INSTALLING CONVERTIBLE TOP .
Refer to REMOVING AND INSTALLING CONVERTIBLE TOP GEAR .
NOTE:
- If the insulation is damaged, such as cracks, it must be replaced.

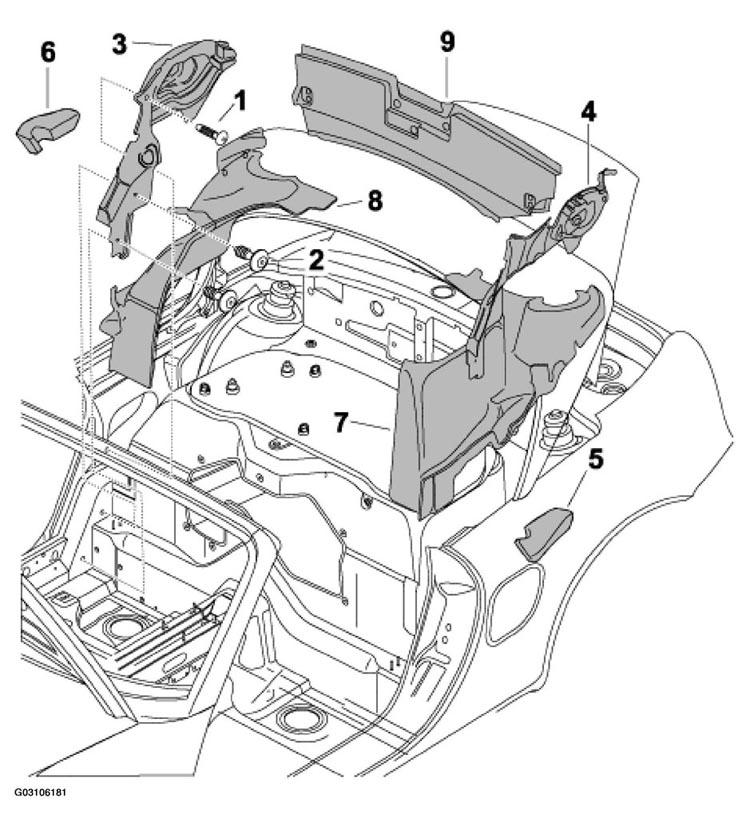

REMOVING AND INSTALLING PROCEDURE FOR INSULATION FOR CONVERTIBLE TOP COMPARTMENT
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Mounting plugs | 4 | Pull out. | |||
| 2(1) | Mounting plugs | 2 | Pull out. | |||
| 3(1) | Insulation, right, convertible-top rest on upper side | 1 | Carefully pull the insulation off -3- (1) | Puncture the mounting plugs -2- (1) | ||
| 4(1) | Insulation, left, convertible-top rest on upper side | 1 | Carefully pull the insulation off -4- (1) | Puncture the mounting plugs -2- (1) | ||
| 5(1) | Left roll-over bar seal | 1 | Carefully pull the insulation off -5- (1) | |||
| 6(1) | Right roll-over bar seal | Carefully pull the insulation off -6- (1) | ||||
| 7(1) | Insulation, left, convertible-top rest on lower side | 1 | Carefully pull the insulation off -7- (1) | Pull off the transparent film before fitting. | ||
| 8(1) | Insulation, right, convertible-top rest on lower side | 1 | Pull out carefully. | Pull off the transparent film before fitting. | ||
| 9(1) | Rear convertible top rest insulation | Pull off the transparent film before fitting. |
||||
|
||||||
