Disposal of airbag and belt tensioner units: Tools

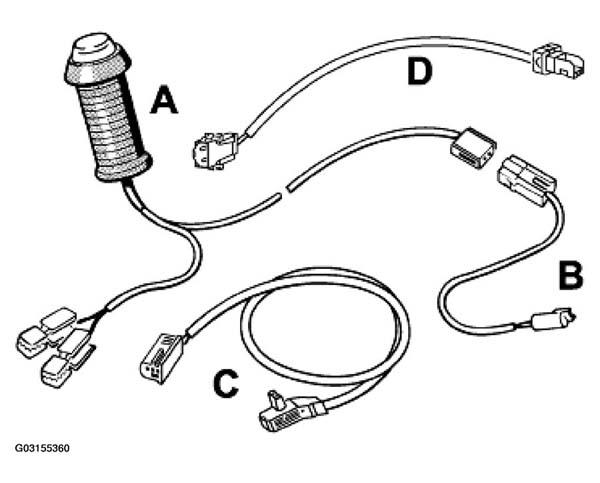

Fig 1: Identifying Tools
G03155360Courtesy of PORSCHE OF NORTH AMERICA, INC.

Ignition cable for belt tensioner

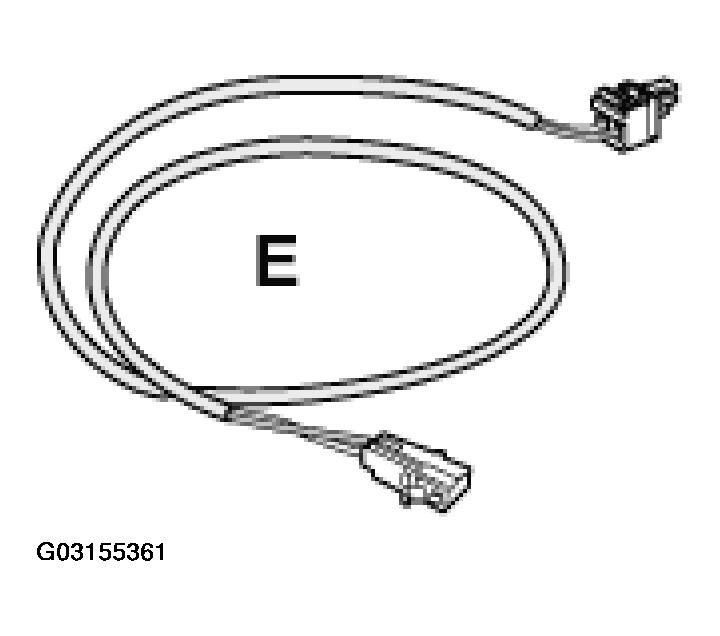

Fig 2: Identifying Ignition Cable For Belt Tensioner
G03155361Courtesy of PORSCHE OF NORTH AMERICA, INC.
SPECIAL TOOL

Item Designation Special tool Remarks
A Ignition device 9257(1)
B Ignition cable 9567 For driver's airbag
C Ignition cable 9566 For passenger's airbag
D Ignition cable 9257/2 For side airbag
E Ignition cable 9257/3 For belt tensioner
(1) Order if required
