Notes On Removal And Installation: Installation

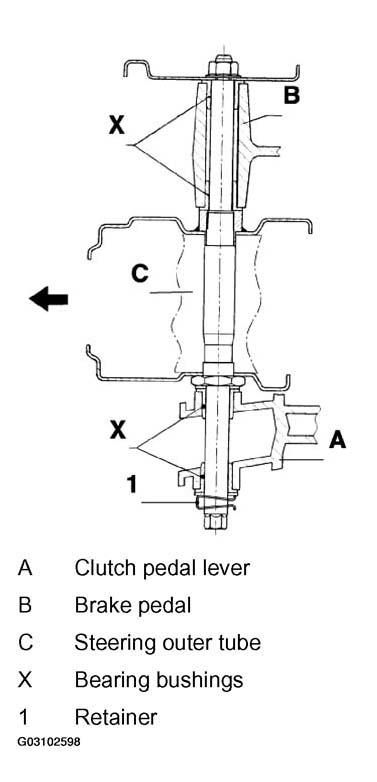

Inspect all bearing bushings X for clutch pedal lever and replace them if necessary. See Figure . Lubricate sliding surfaces of the bearing bushings X and the pedal bearing axle with Optimol, Optitemp LG 2, part No. 000.043.203.37.
Assemble boost spring, bracket and clutch pedal lever.
1. 2.1 Boxster Mod. `98 / partly Mod. `99
2. 2.2 Boxster from current Mod. `99
NOTE: Different types of boost springs can be fitted in the Boxster. Observe proper allocation when replacing the boost spring and/or the bracket.

In some cases, a modified (optimized) clutch pedal must also be used when replacing the boost spring.

Lubricating the boost spring bearing surfaces is sometimes necessary and sometimes prohibited (according to boost spring version).

Information can be found in CLUTCH BOOST SPRING: ALLOCATION AND GREASE SPECIFICATION .
1. 2.1 Boxster Mod. '98 / partly Mod. '99
  Identification/distinction: Boost-spring push rod open on one side, boost spring components not coated.

  Grease pin for boost spring (arrow) with mating bearing on the boost spring push rod, the boost spring bearing (arrows) and the bearing pins on the boost spring with Optimol, Optitemp LG 2, part No. 000.043.203.37. First remove old grease with solvent naphtha.

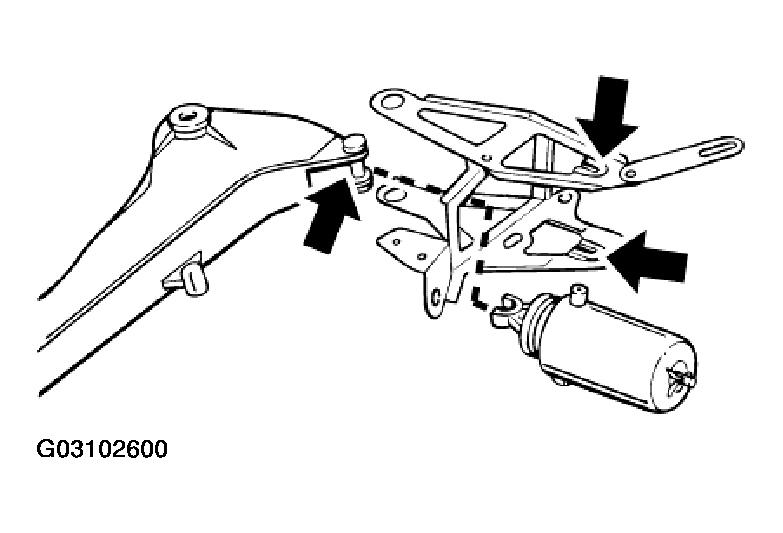

  Fig 1: Greasing Pin For Boost Spring (Arrow) With Mating Bearing On Boost Spring Push Rod
  Courtesy of PORSCHE OF NORTH AMERICA, INC.

  Lubrication necessary (arrows)
2. 2.2 Boxster from current Mod. '99
Identification/distinction: Push rod closed / boost spring components coated. The date of introduction for this boost spring is contained in the Parts Catalogue.

Engage the hexagon-socket bolts of the boost spring into the hexagon on the clutch pedal (arrow).

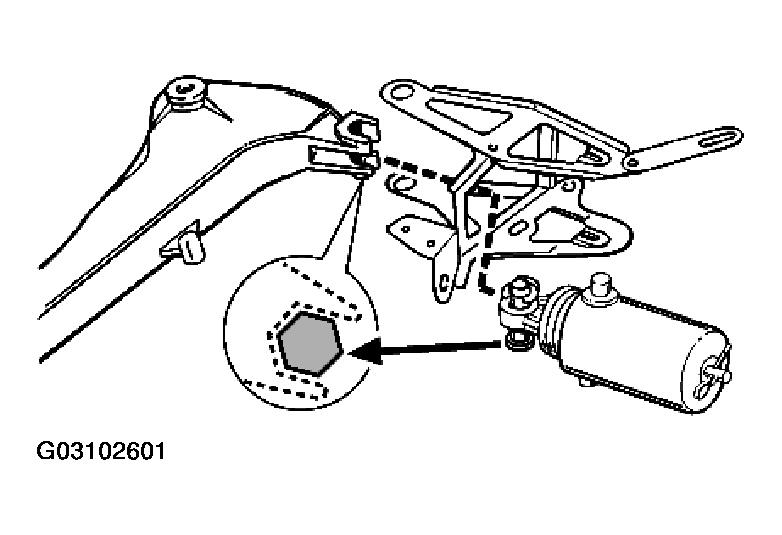

Fig 2: Engaging Hexagon-Socket Bolts Of The Boost Spring Into The Hexagon On The Clutch Pedal
Courtesy of PORSCHE OF NORTH AMERICA, INC.

IMPORTANT: Do not lubricate since the sliding surfaces of this boost spring version are coated. `Do not lubricate' applies to all sliding surfaces (boost spring pins, boost spring bearing in the bracket, bearing pins on the boost spring, and the boost spring in the boost spring pot).

Do not lubricate (prohibited)
NOTE:
- Silver bracket (986.423.571.00) and boost spring with white marking (986.423.081.08 Mod. `98 / partly Mod. `99 or 986.423.081.11 from current Mod. '99) must be used only in this combination and installed only in the Boxster.
Installation and adjustment specification for boost spring bracket. Install presumable boost spring bracket with clutch pedal lever. Not valid for Boxster vehicles before Mod. '98 (bracket cannot be unscrewed or adjusted).
To do this:
1. Tighten the three fastening nuts (arrows) only slightly (the bracket must still be movable).
2. Tighten the clutch master cylinder to 10 Nm (7.5 ft.lb) (if the clutch master cylinder was detached).
3. Press the clutch pedal against the direction of travel until the pull stop in the clutch master cylinder is reached.
4. Remove cotter pin (retaining pin) on the spring cup so that the clutch pedal is pressed against the rubber stop in the boost spring bracket.
5. The bracket is screwed down with the clutch pedal pressed back (to make full use of the slots). Tighten hexagon nuts (arrows) in the prescribed sequence. Tightening torque: 7.5 Nm (5.5 ft.lb). Sequence: 5a / 5b / 5c. See Fig 3 .

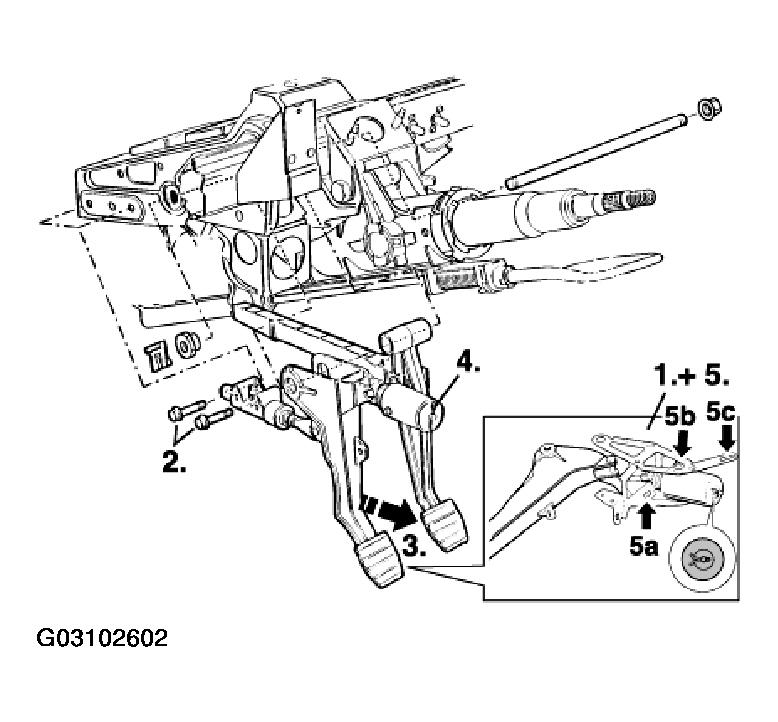

Fig 3: Identifying Bracket Screwed Down With Clutch Pedal Pressed Back
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- The push rod of the clutch save cylinder should not be lubricated in general (for all versions).
Fit new retainer on the pedal bearing axle. On vehicles as of Mod. '98, subsequently secure the retainer by wedging it with a mandrel.
Install clutch pedal switch. First pull operating plunger out of the switch as far as it will go. By means of its self-adjustment function, the switch then compensates for tolerances in the pedals.
Check the interlock switch adjustment on vehicles with interlock.
Adjustment specification for interlock switch:

The switch must be aligned so that, with the clutch pedal depressed, it is operated approx. 1 to max. 2 mm before the limit stop of the clutch slave cylinder is reached.

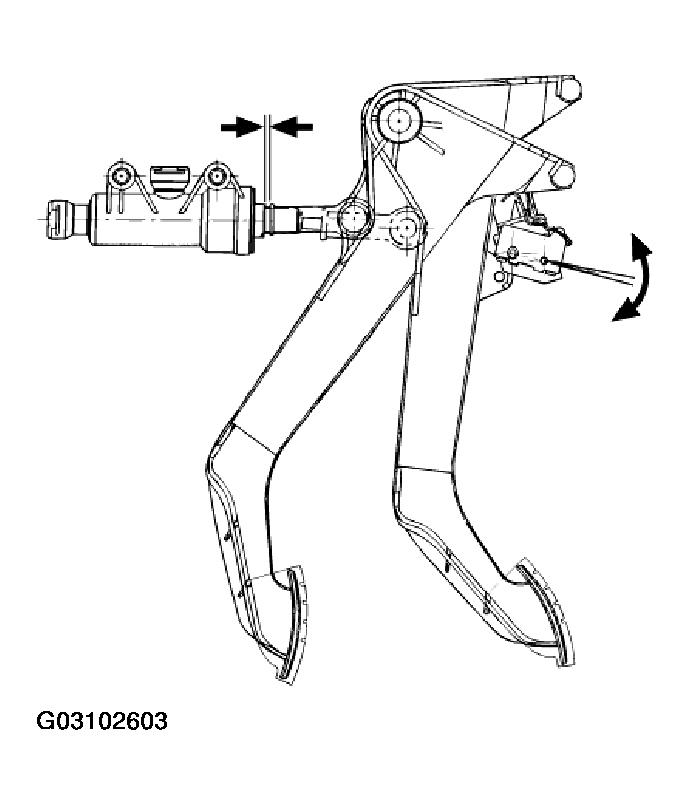

Fig 4: Identifying Clutch Pedal Switch
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install relay carrier, diagnostic socket and air duct.
Perform a function test on clutch and brake operation.
