Front Fender: Service and Repair

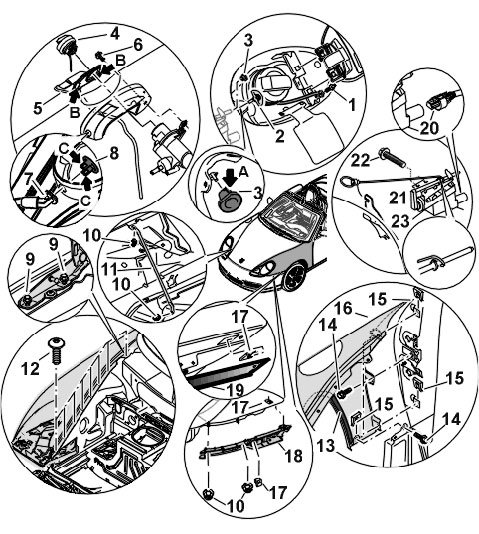

Removing And Installing The Wing










INFORMATION:
- Before removing the wing, the following parts must be removed:
- Refer to Removing and installing wheel
- Refer to Removing and installing wheel housing liner
- Refer to Removing and installing filler flap
- Refer to Removing and installing headlight mount
- Refer to Removing and installing headlights
- For the right wing, Refer to Removing and installing carbon canister
- For the left wing, Refer to Removing and installing tank for windscreen washer system
