Cooling System Component Identification

WARNING: This page is about a different variant/trim than selected.

Coolant is circulated through cooling system via a belt driven water pump. See Fig 1 .

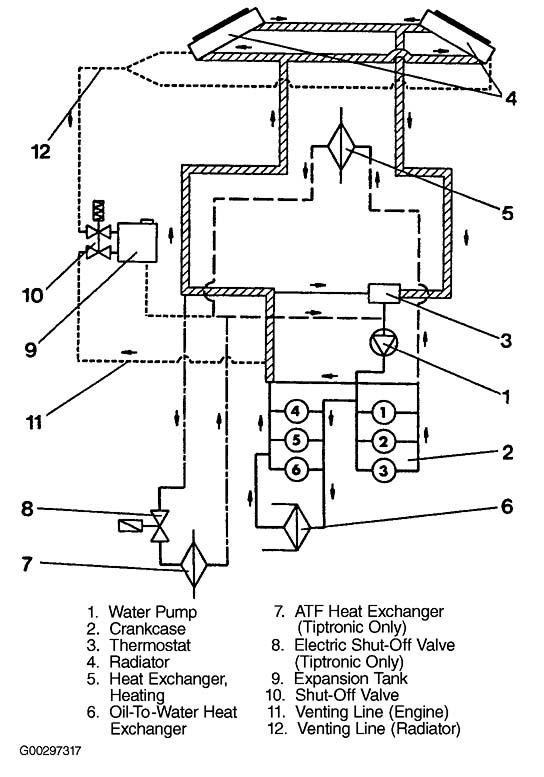

Fig 1: Identifying Cooling System Components & Coolant Flow (2.5L & 2.7L)
G00297317Courtesy of PORSCHE OF NORTH AMERICA, INC.
