Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

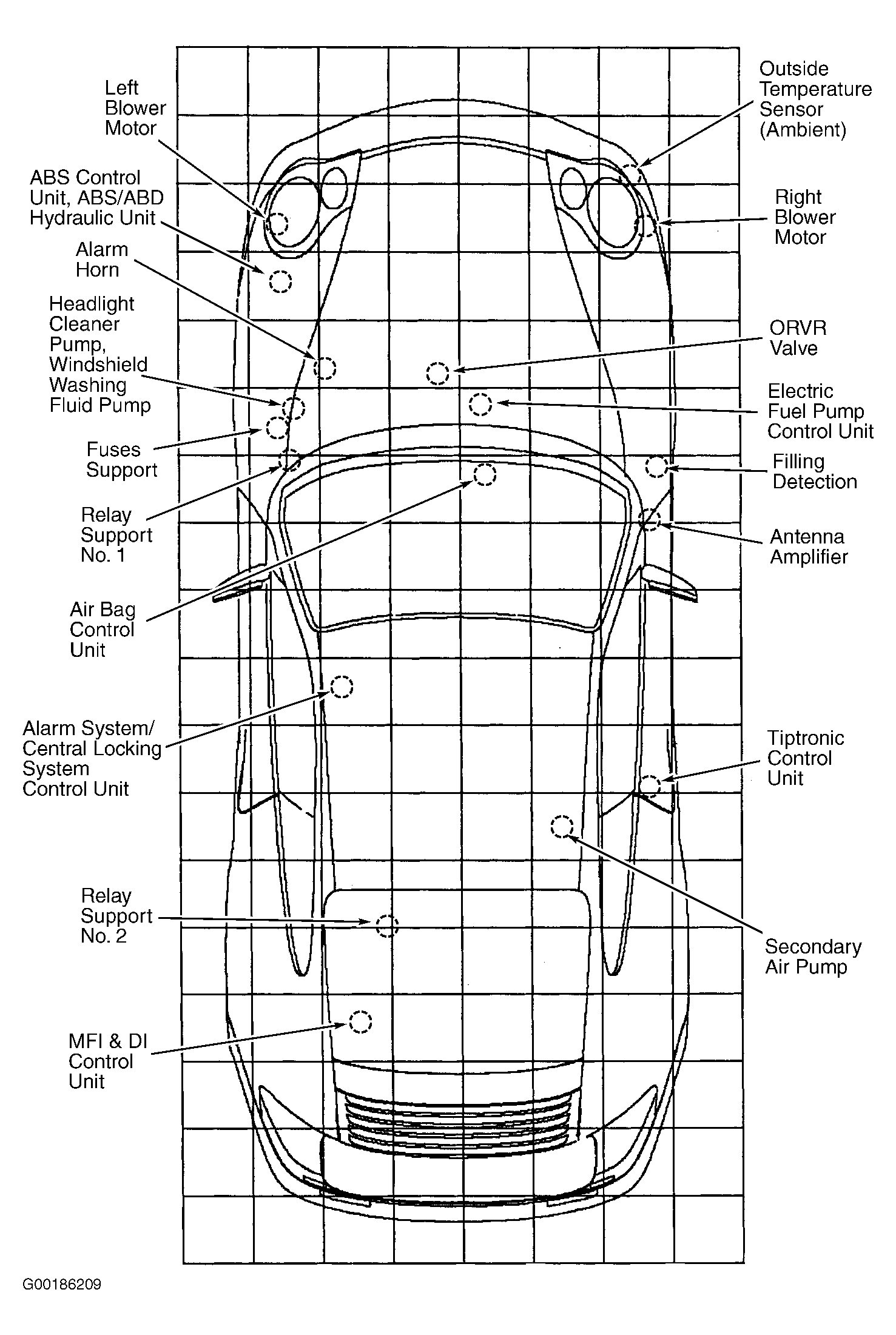

Fuses Support Behind left kick panel. See Figure .
Relay Support No. 1 At left kick panel. See Figure .
Relay Support No. 2 Behind left rear seatwell. See Figure .
