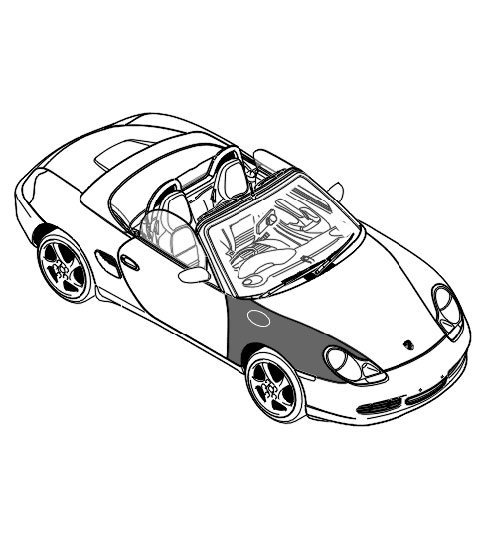

Front Fender: Service and Repair

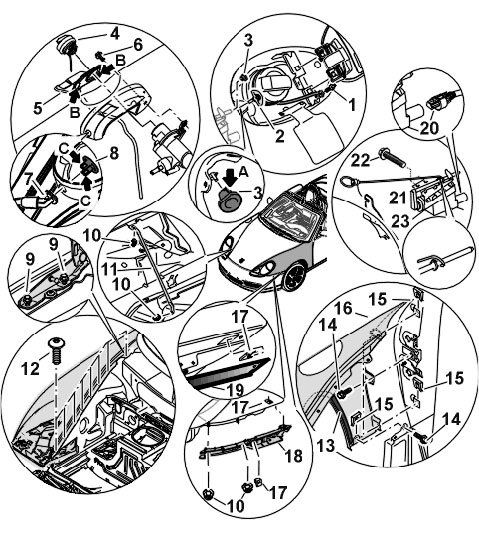

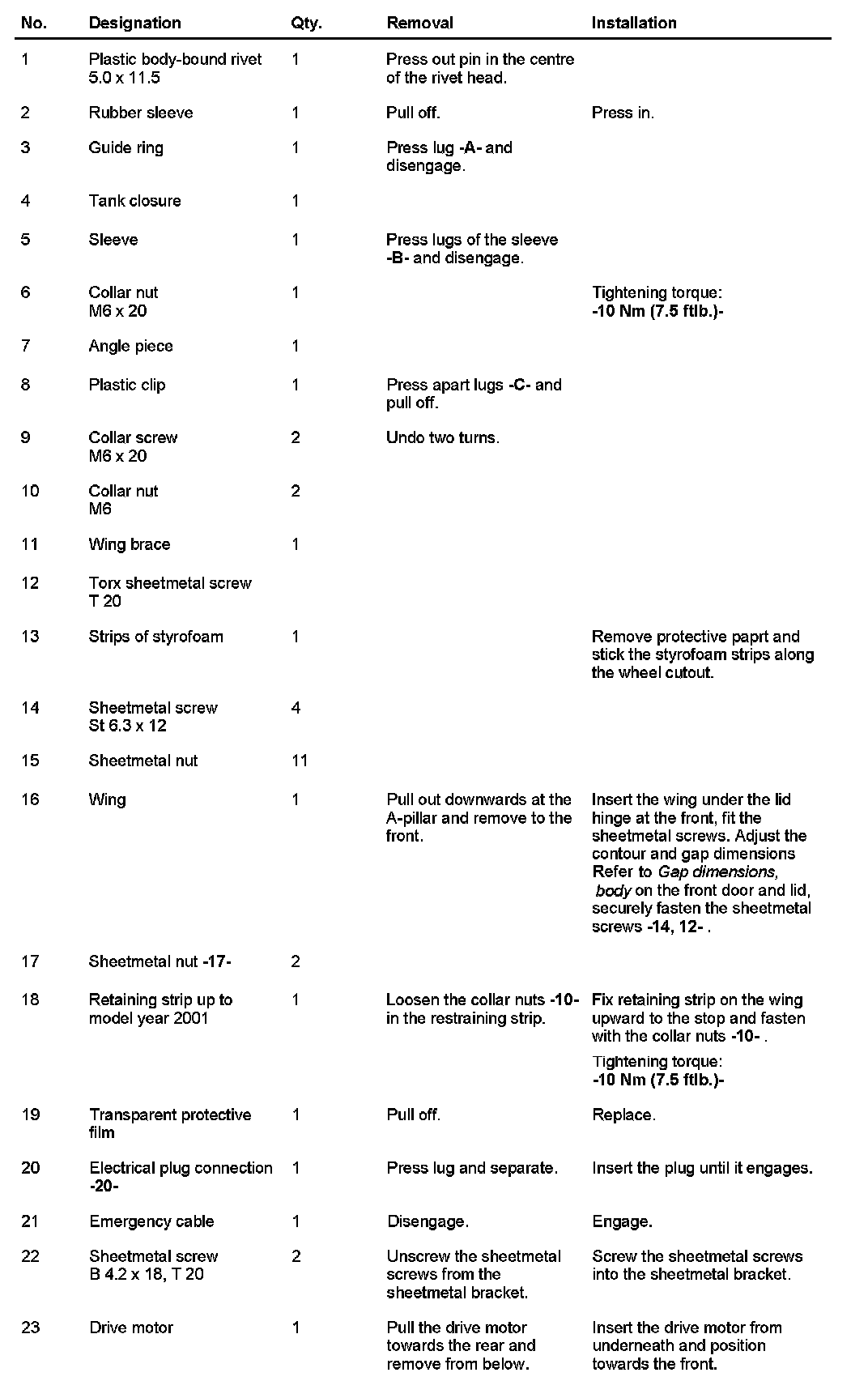

Removing And Installing The Wing










INFORMATION:
- Before removing the wing, the following parts must be removed:
- Refer to Removing and installing wheel.
- Refer to Removing and installing wheel housing liner.
- Refer to Removing and installing filler flap.
- Refer to Removing and installing headlight mount.
- Refer to Removing and installing headlights.
- For the right wing, Refer to Removing and installing carbon canister.
- For the left wing, Refer to Removing and installing tank for windscreen washer system.
