Brake Pedal Assy

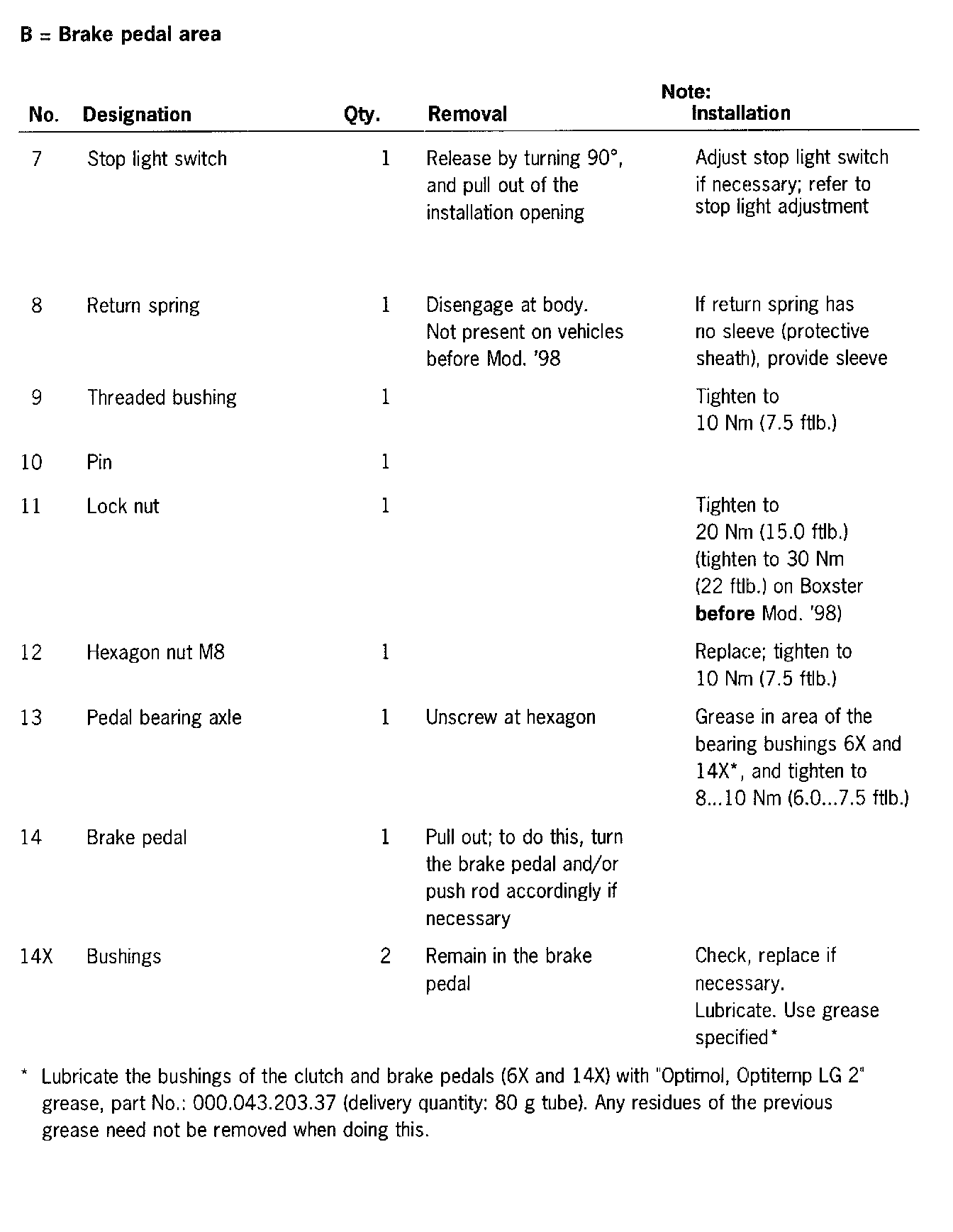

Part 1 Of 3:

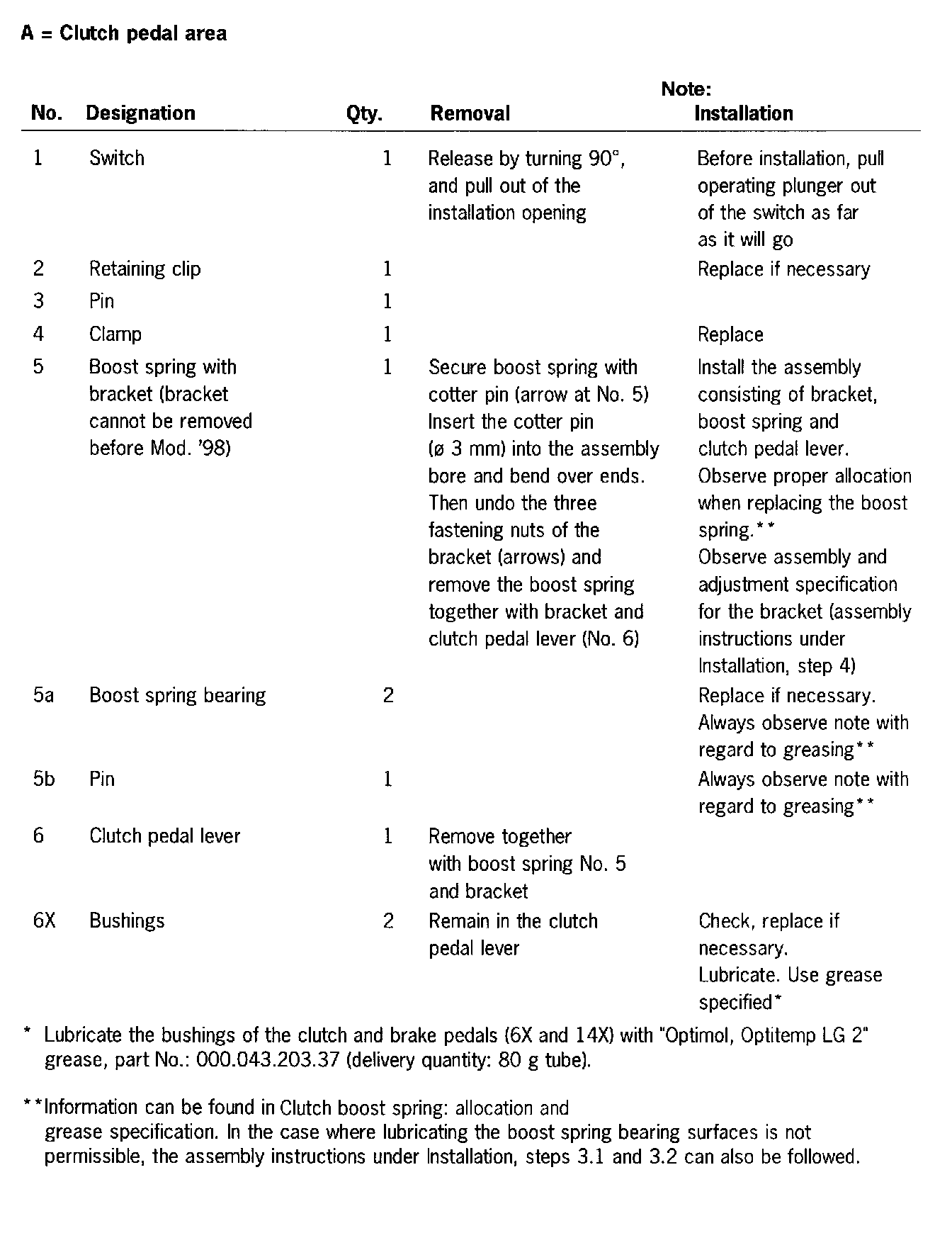

Part 2 Of 3:

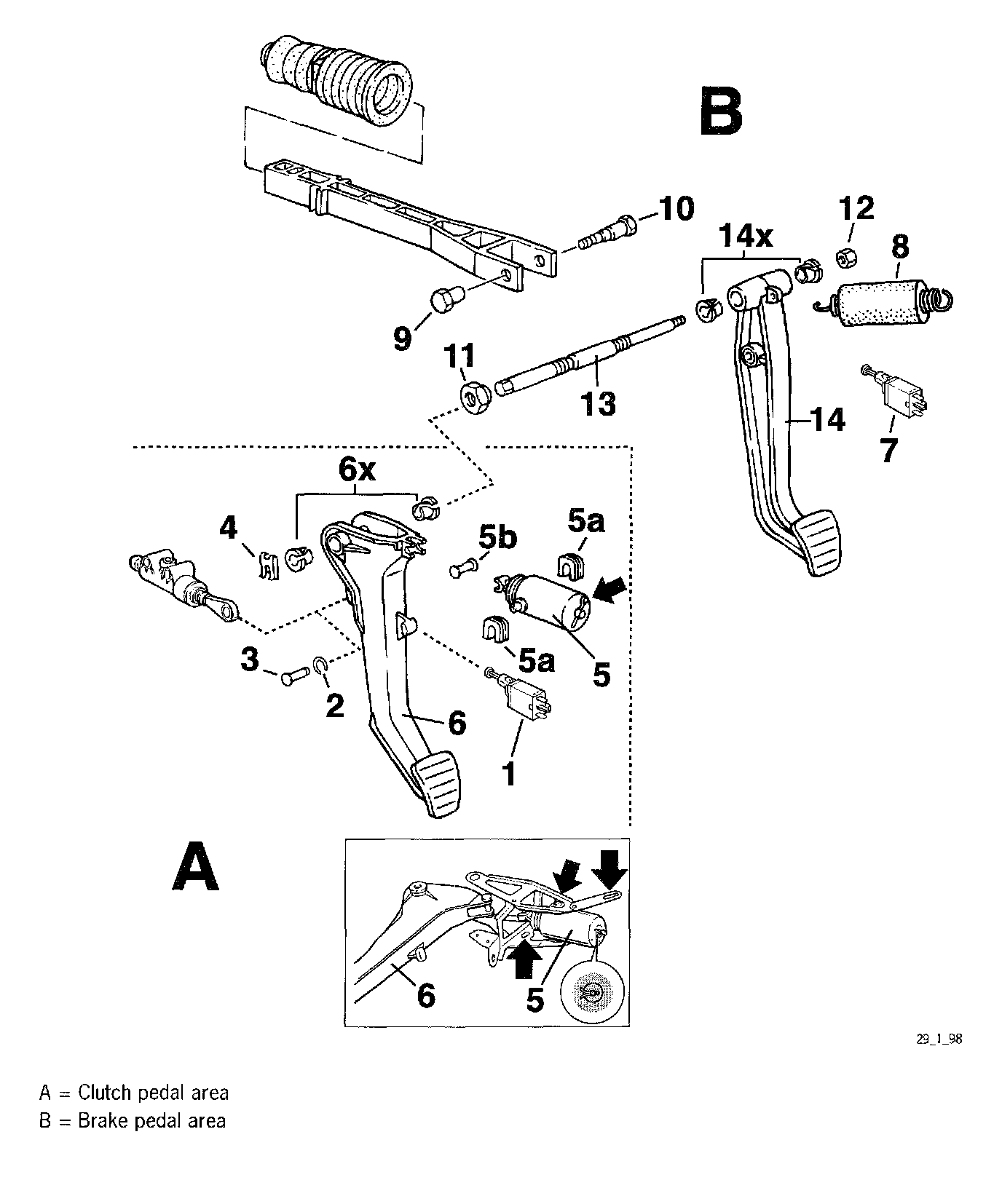

Part 3 Of 3:





Brake pedal replacement w/ related components
