Intake Air Duct

AIR GUIDE COWL:

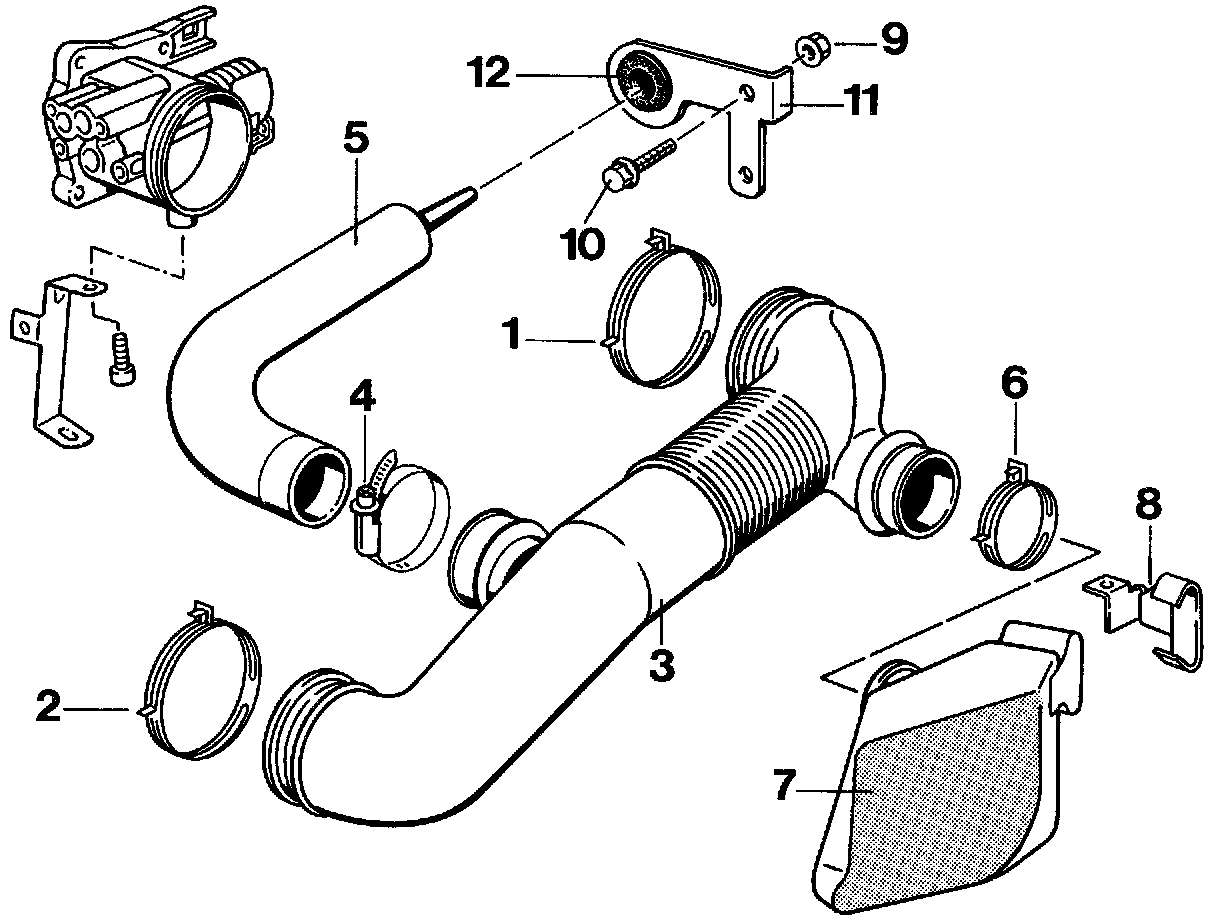

Image Legend:
1 Hose clamp 86 x 12
2 Hose clamp 86 x 12
3 Intake cowl
4 Hose clamp
NOTE:Tighten only after intake cowl has been fastened.
5 Resonance tube (only on vehicles with Tiptronic)
6 Hose clamp 53 x 12
7 Silencer with plastic damping film
8 Holder
9 M6 hexagon nut
10 Combination screw M6 x 15 (microencaps.)
11 Holder for resonance tube
12 Rubber sleeve
