PCM2 MMI Connector Assignment
Connector Pin Assignment - MMI

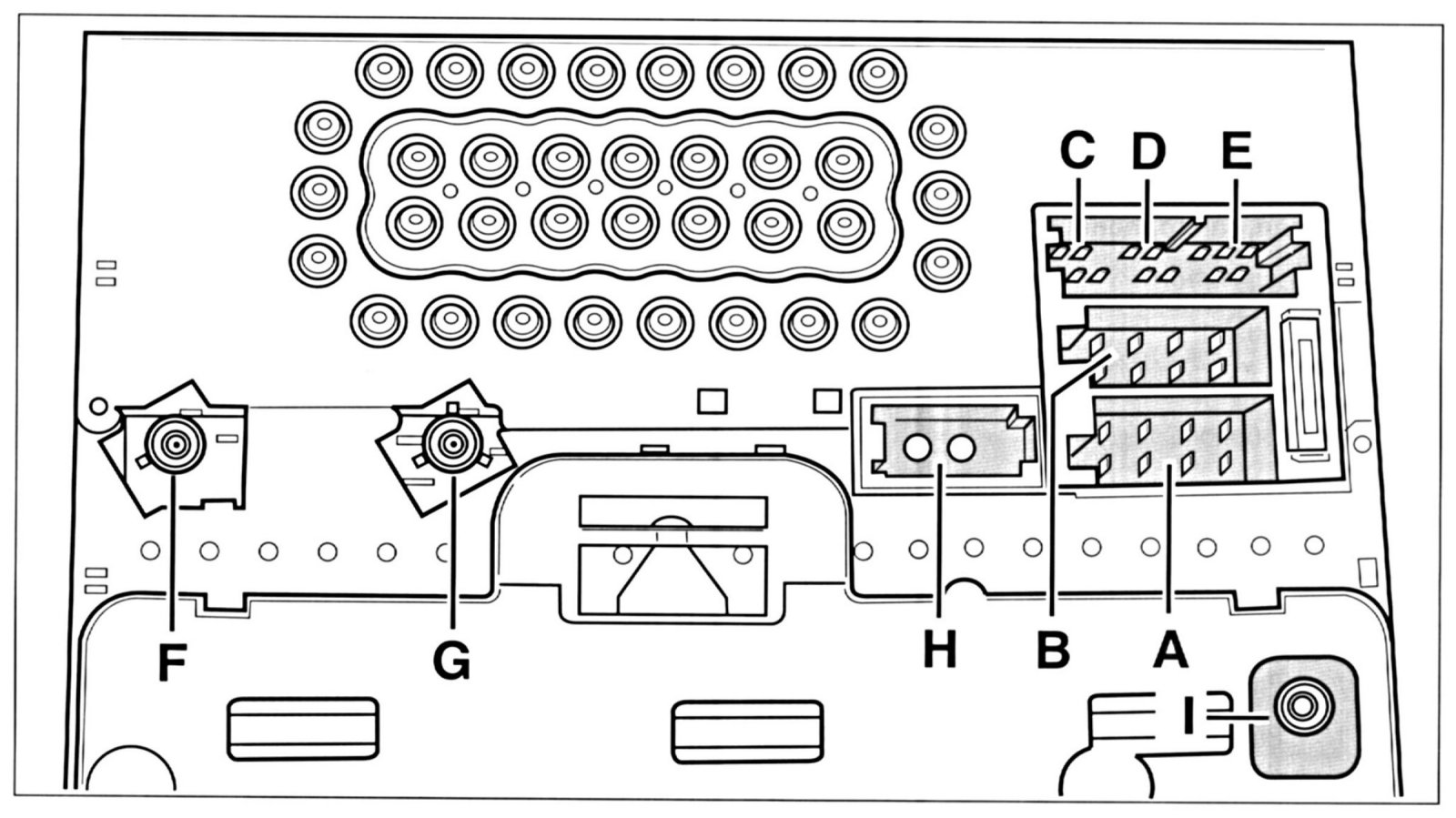

Connector Assignment
Plug A, black, power supply
Pin A1 - A8:
Connector B, brown, loudspeaker output
Pin B1 - B8:
Connector C, yellow, CAN Comfort
Pin C1 - C6:
Plug D, green, microphone
Pin D7 - D12:
Plug E, blue, emergency call
Pin E13 - E20:
Plug F, antenna
Pin F1:
Connector G, diversity antennas
Pin G1:
Plug H, MOST, optical
Pin H1 - H2:
Connector I GPS antenna
Pin H1:
