Fuse: Application and ID

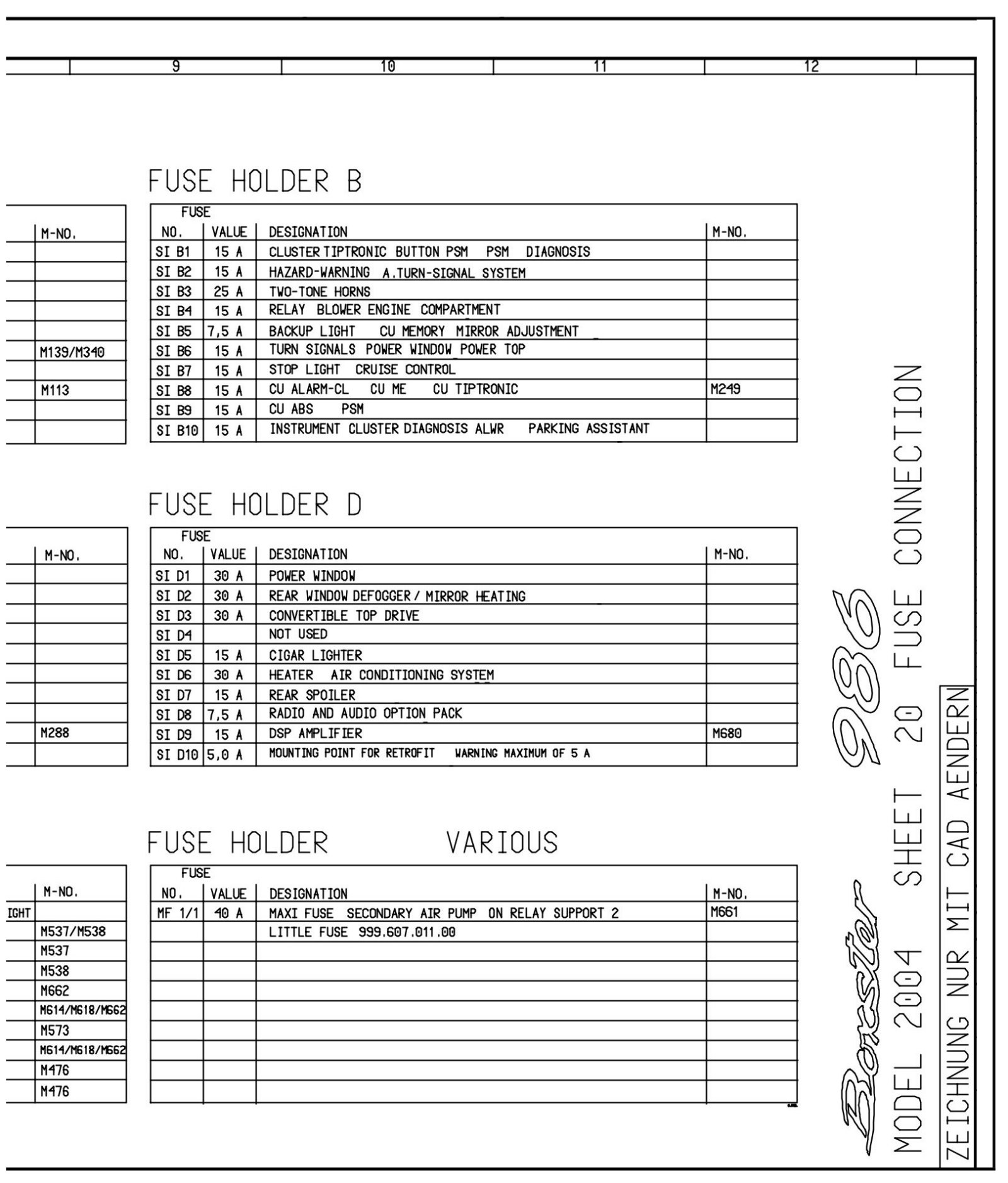

Fuse Connection - Sheet 20 (Part 1):

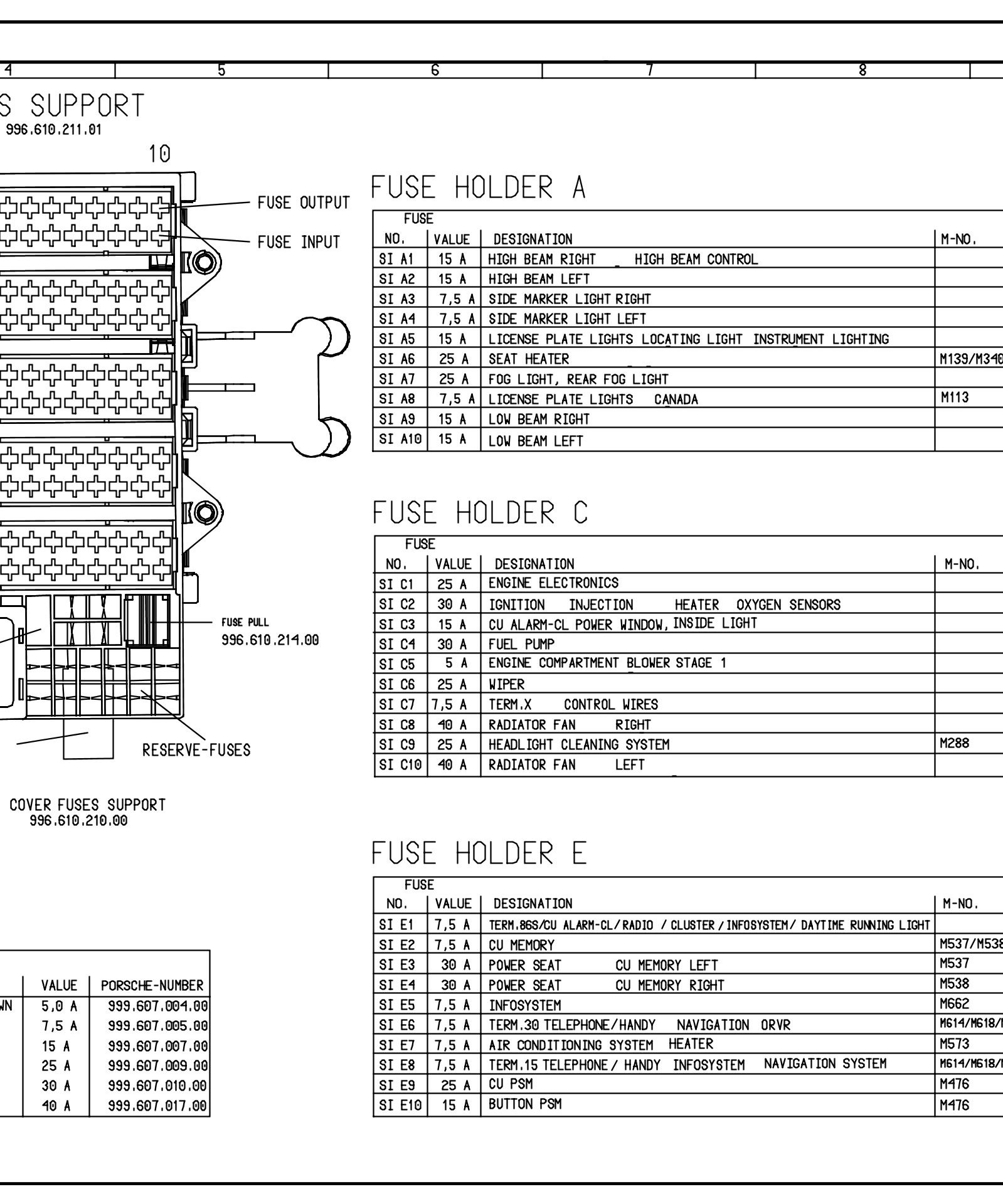

Fuse Connection - Sheet 20 (Part 2):

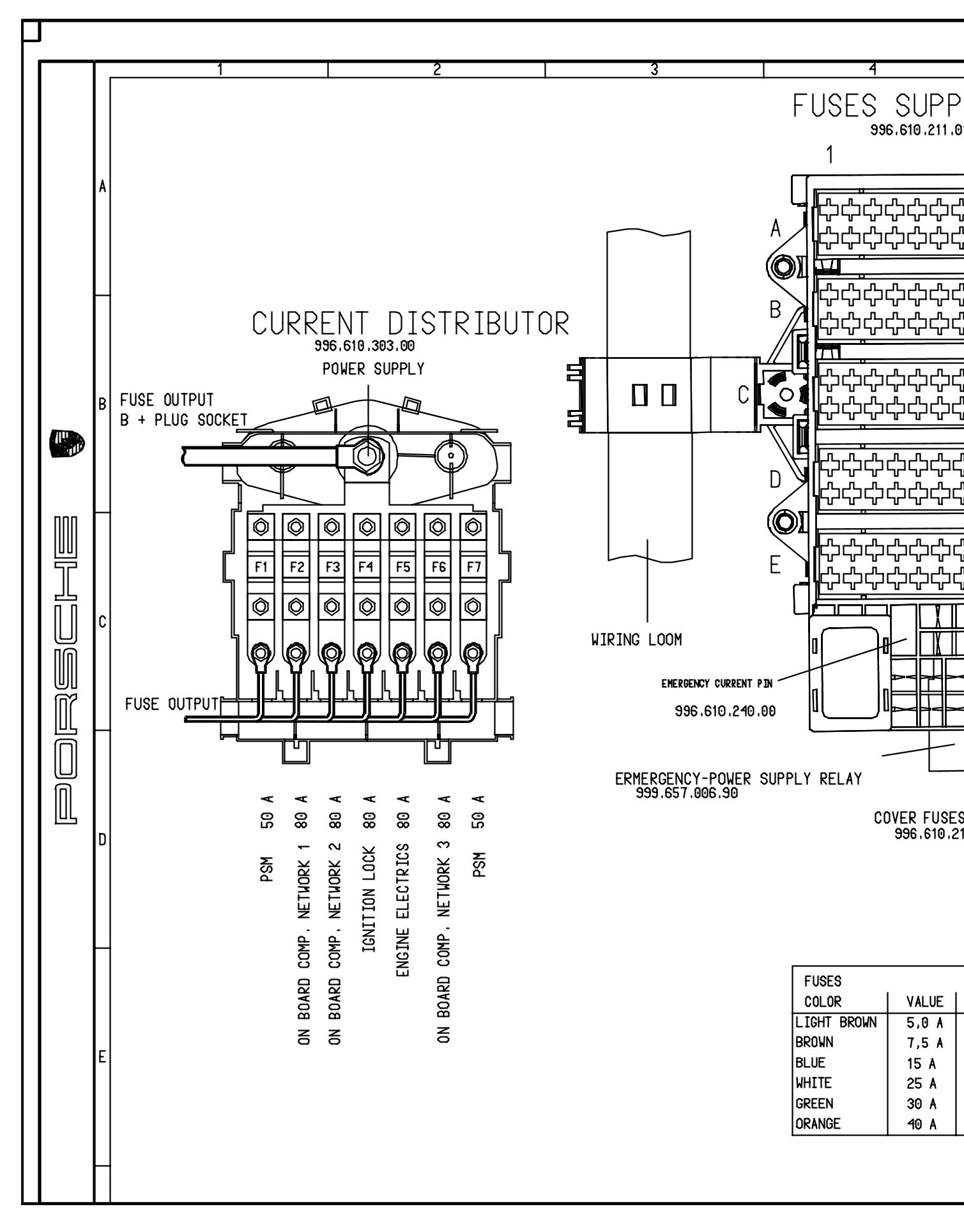

Fuse Connection - Sheet 20 (Part 3):
