Relay Support/Bridge Plug - Sheet 21

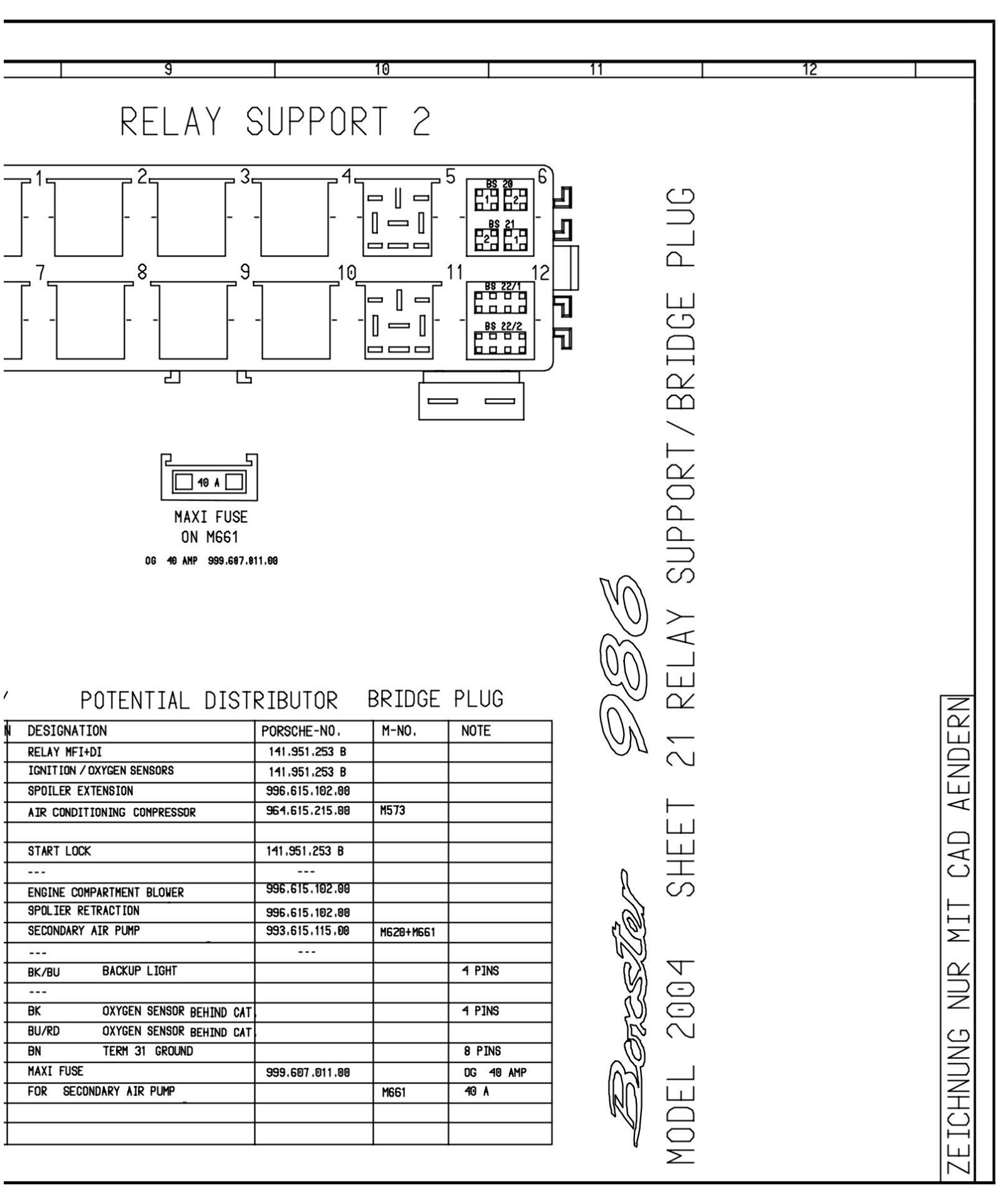

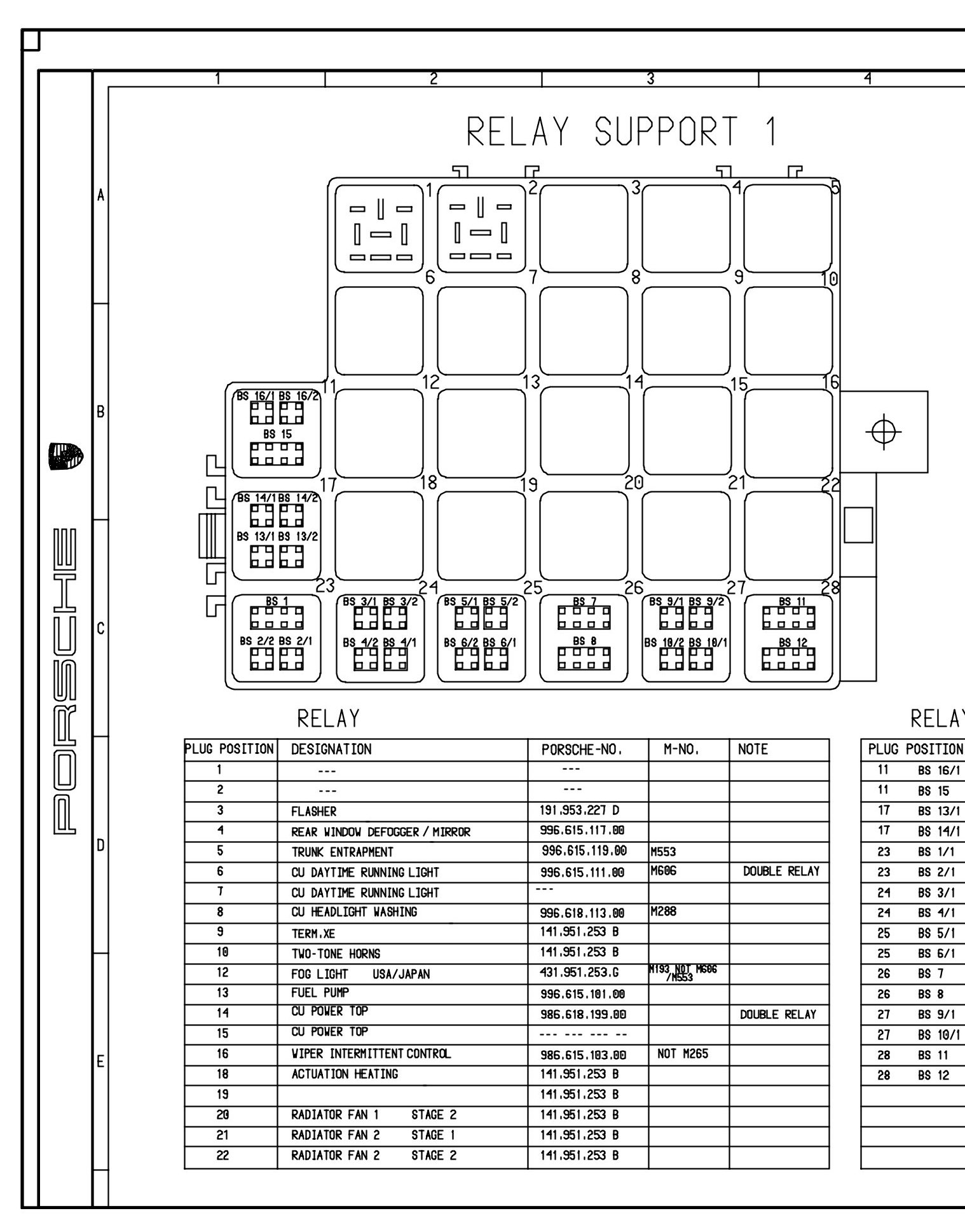

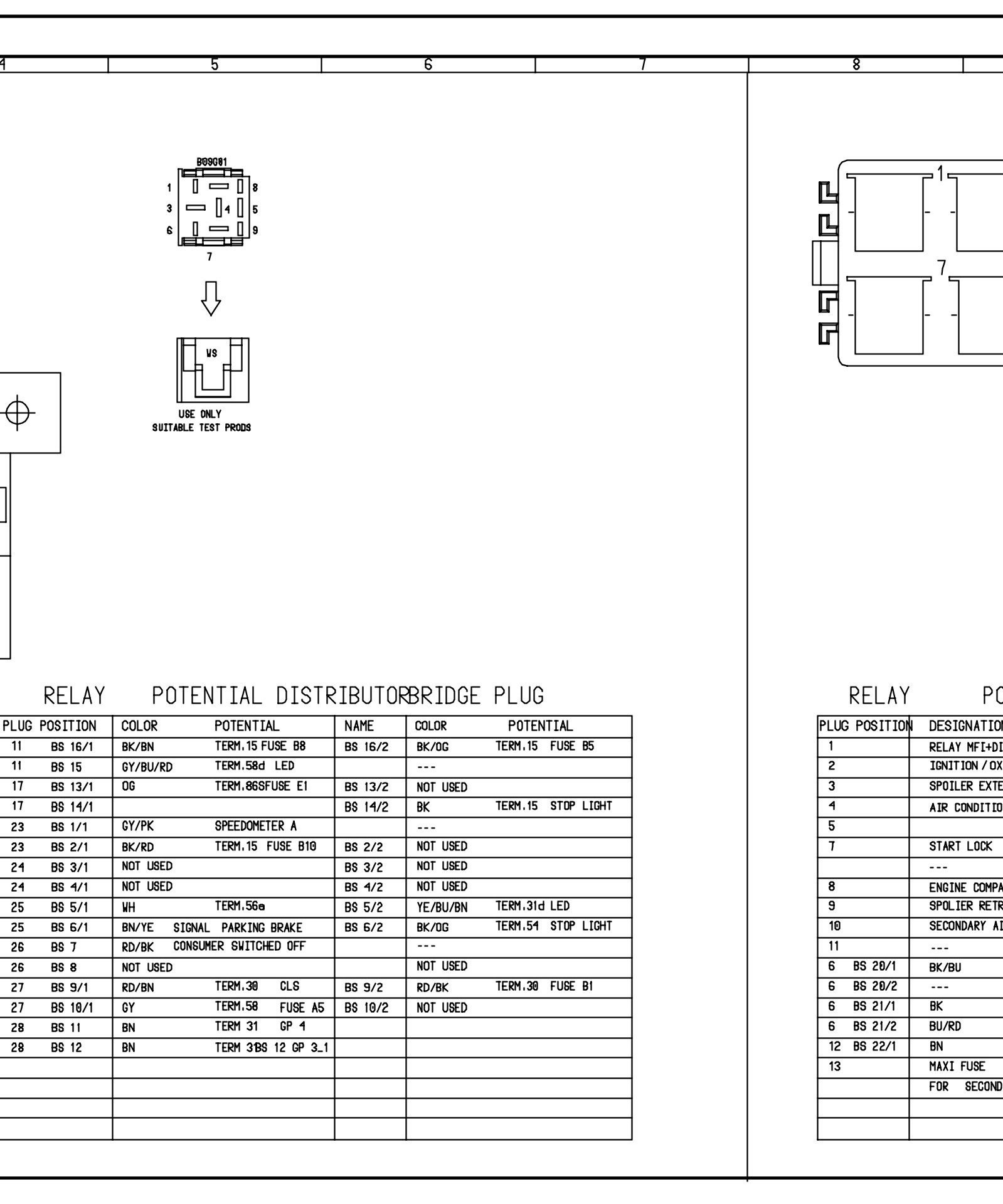

Relay Support/Bridge Plug - Sheet 21 (Part 1):
Relay Support/Bridge Plug - Sheet 21 (Part 2):
Relay Support/Bridge Plug - Sheet 21 (Part 3):
