Engine Control Module: Diagrams



Connector Assignment

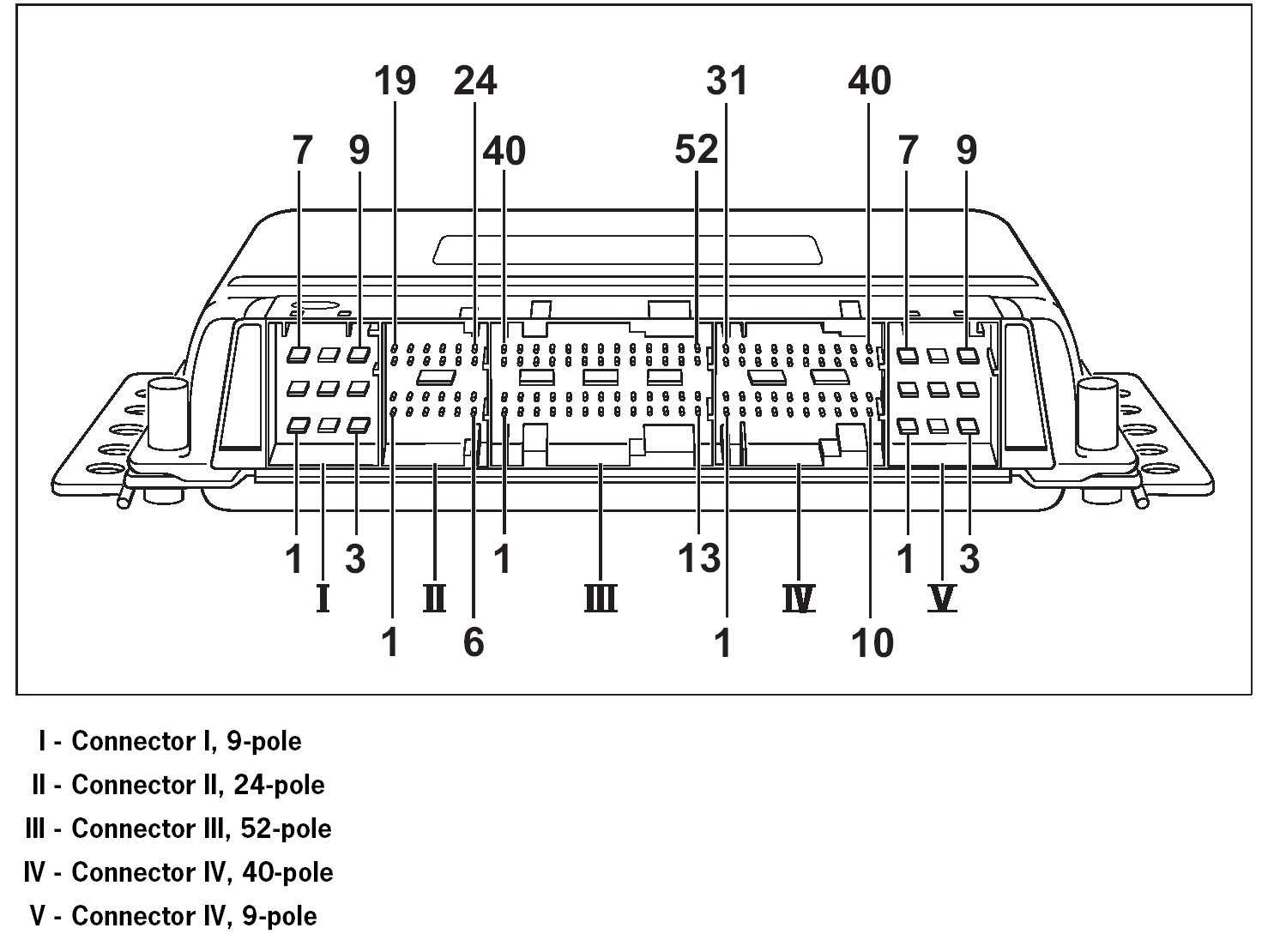

DME control module connector assignment







Connector I, 9-pole

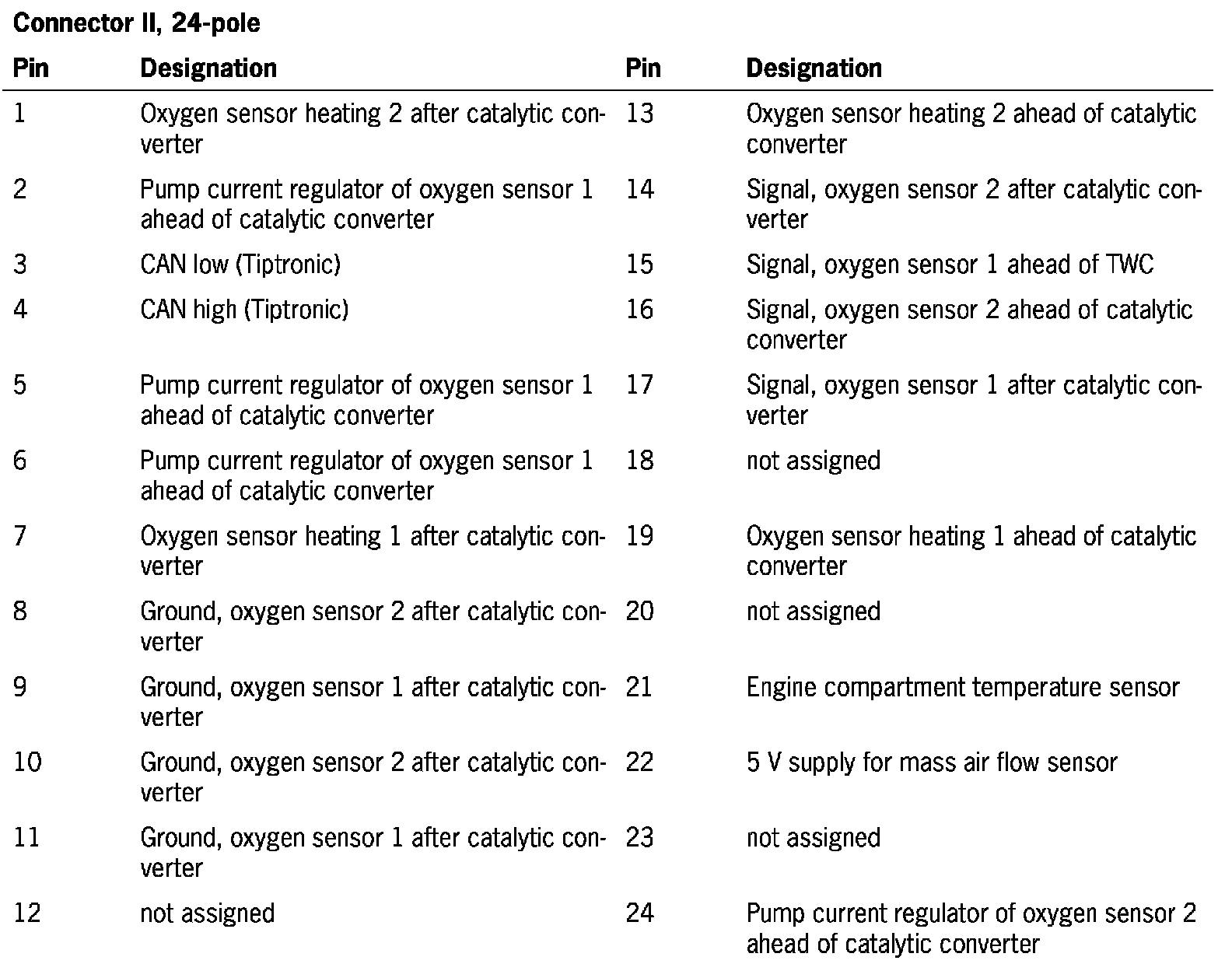

Connector II, 24-pole

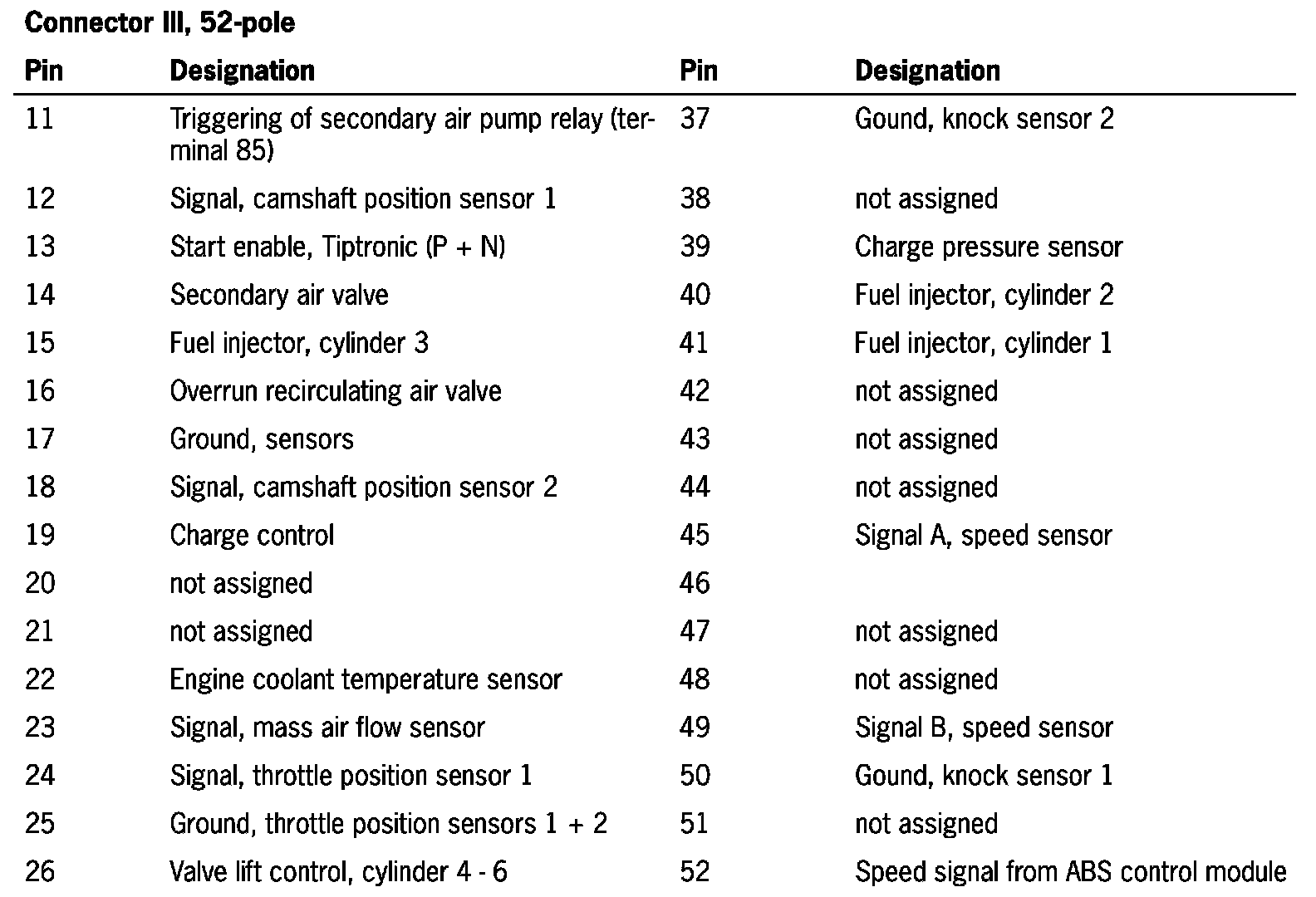

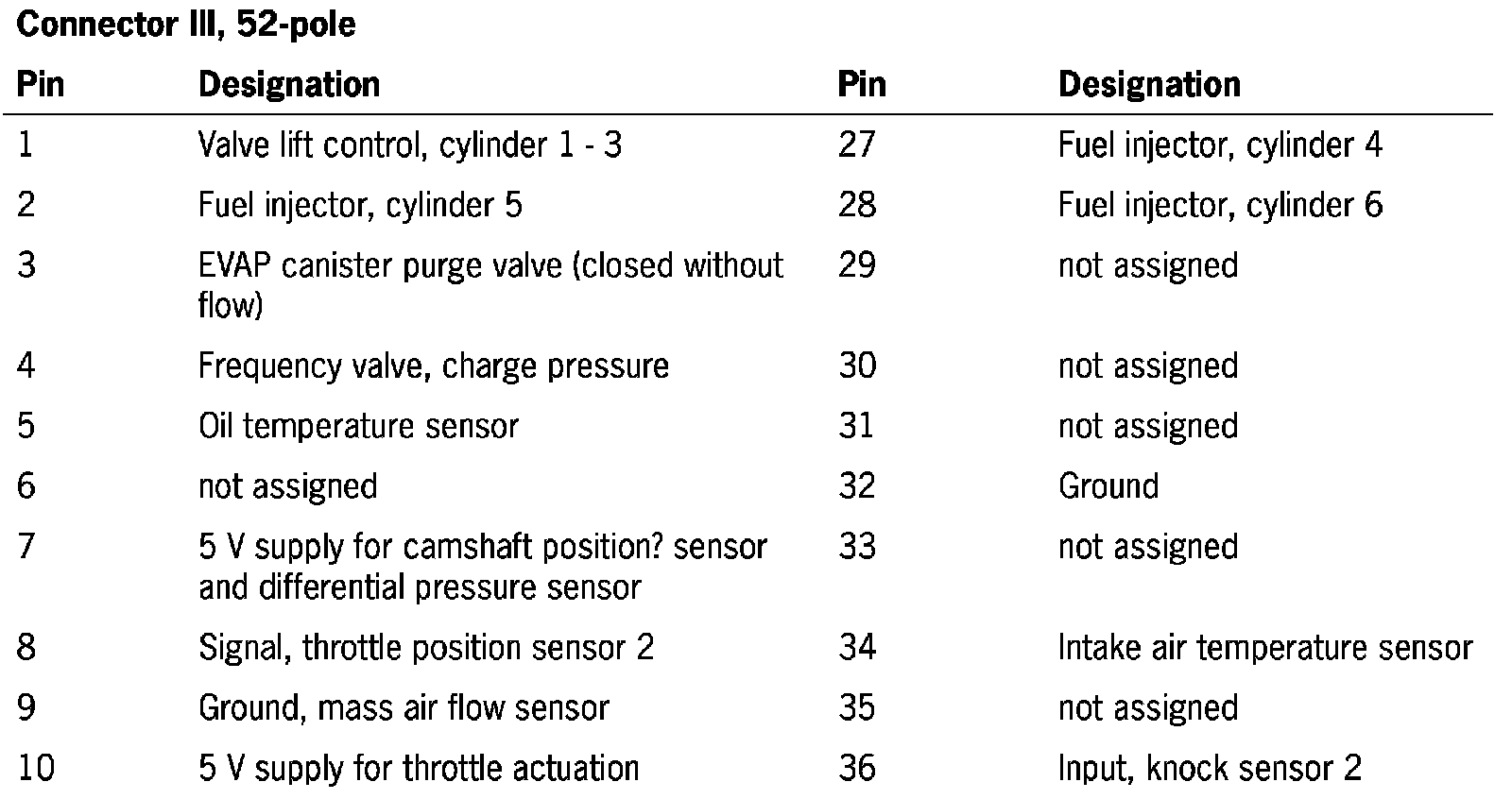

Connector III, 52-pole


Part 1:




Part 2:

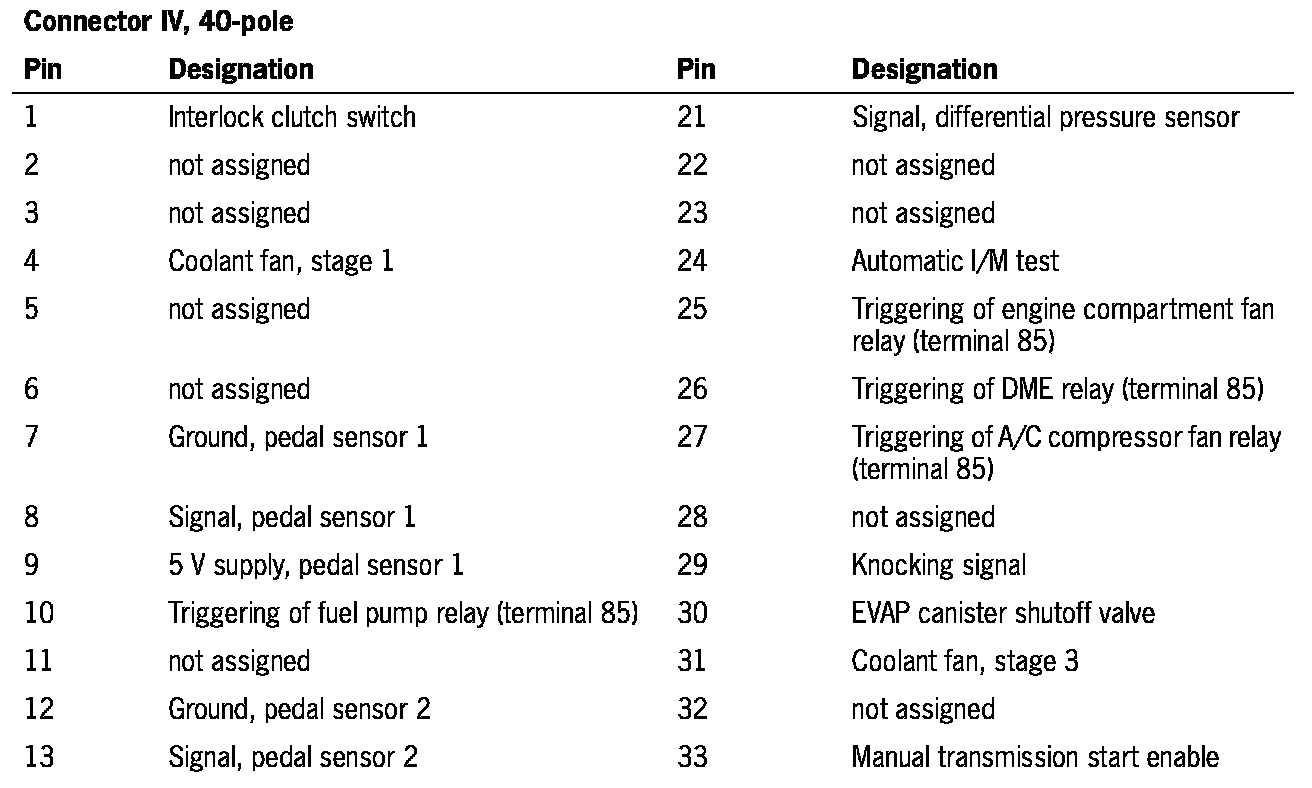

Connector IV, 40-pole


Part 1:




Part 2:






Connector V, 9-pole
