Relay Box: Locations

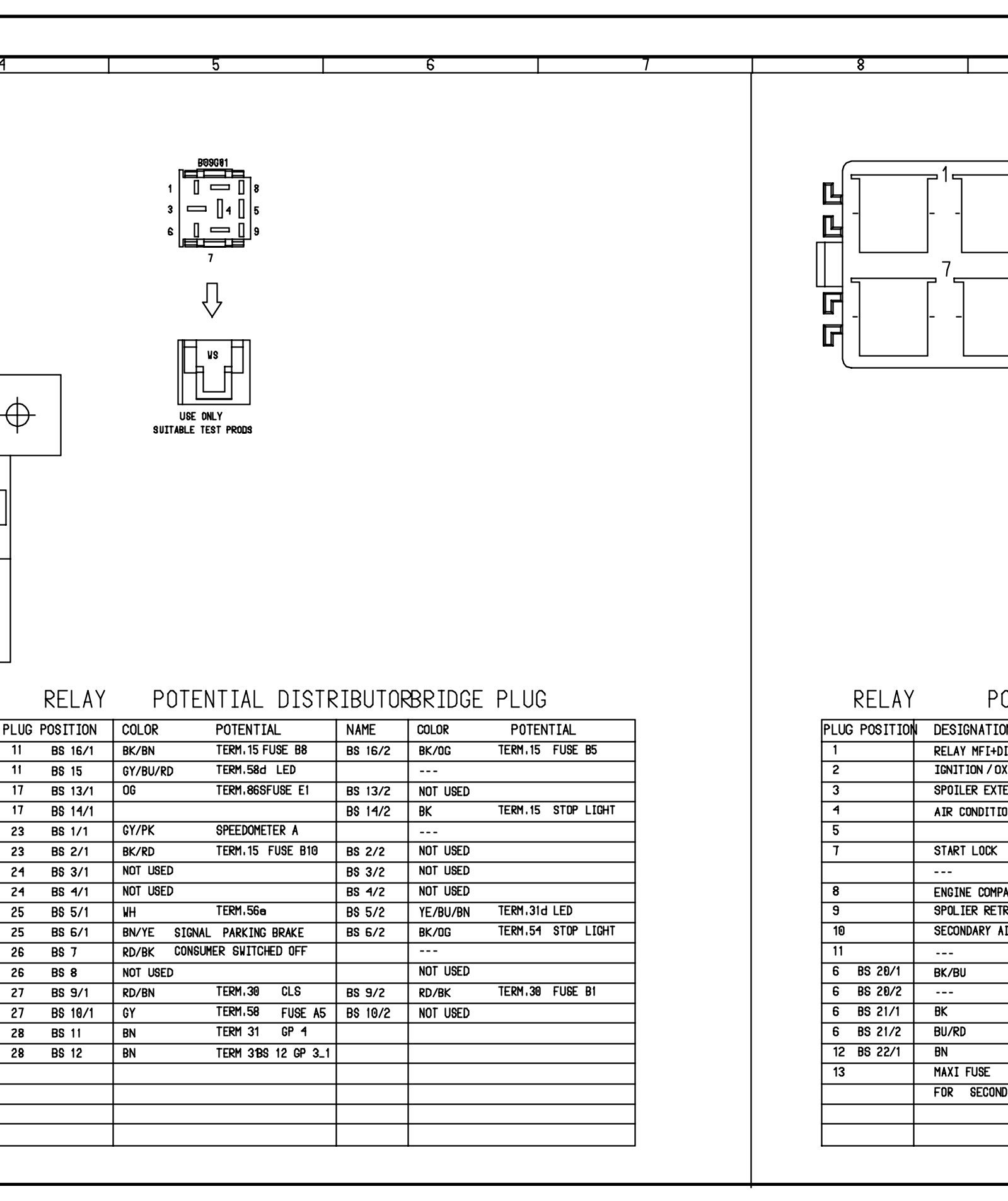

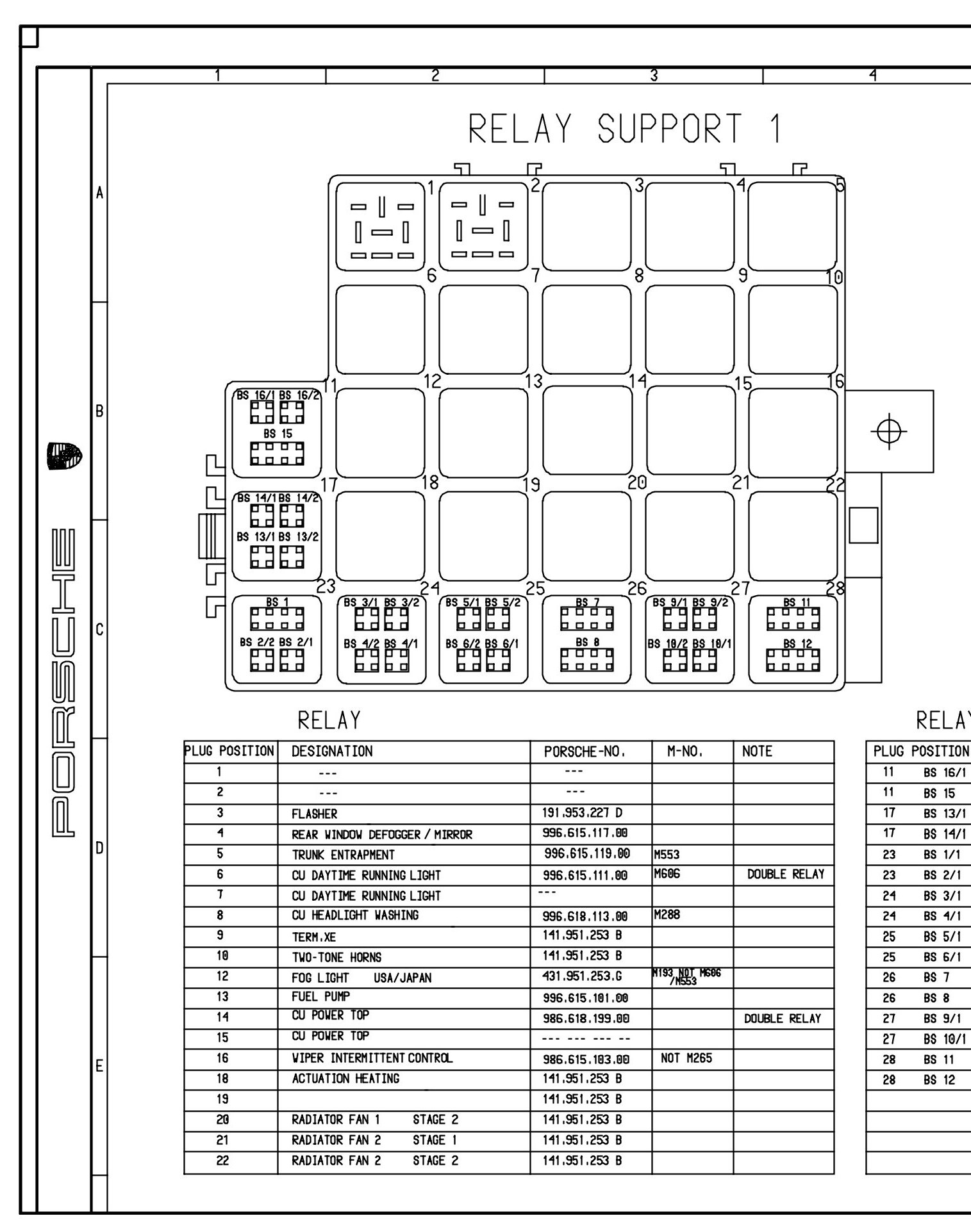

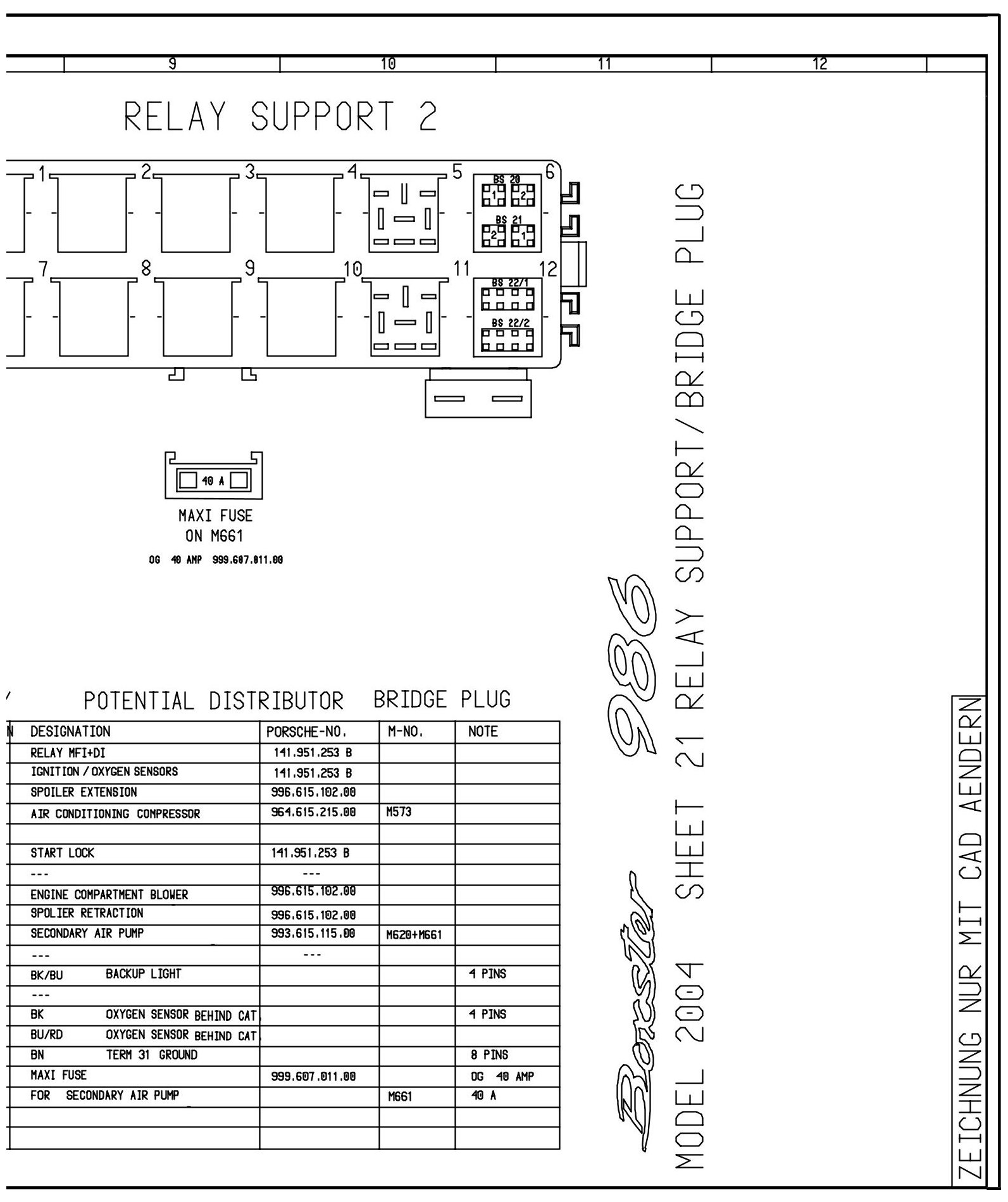

Relay Support/Bridge Plug - Sheet 21 (Part 1):



Relay Support/Bridge Plug - Sheet 21 (Part 2):



Relay Support/Bridge Plug - Sheet 21 (Part 3):
