Voice Control System (VOCS)



Voice Control System (VOCS)

The VOCS is designed as a module box which can be pushed into the PCM2 (optional). After the insertion, an electronic switch is opened and the module is integrated into the MOST ring.

Drive links

Drive links of the PCM2 can be activated with this menu item. This allows the function of the drive links to be assessed very quickly.

The following drive links can be activated with the Porsche System Tester II No. 9588:
- Display colour black
- Display colour"coloured bars"
- Display colour blue
- Display colour red
- Display colour green
- Display colour white
- Set default values
- Ring break diagnosis
- Ring break line diagnosis

NOTE: The activated drive link is automatically switched off after approximately 20 seconds.

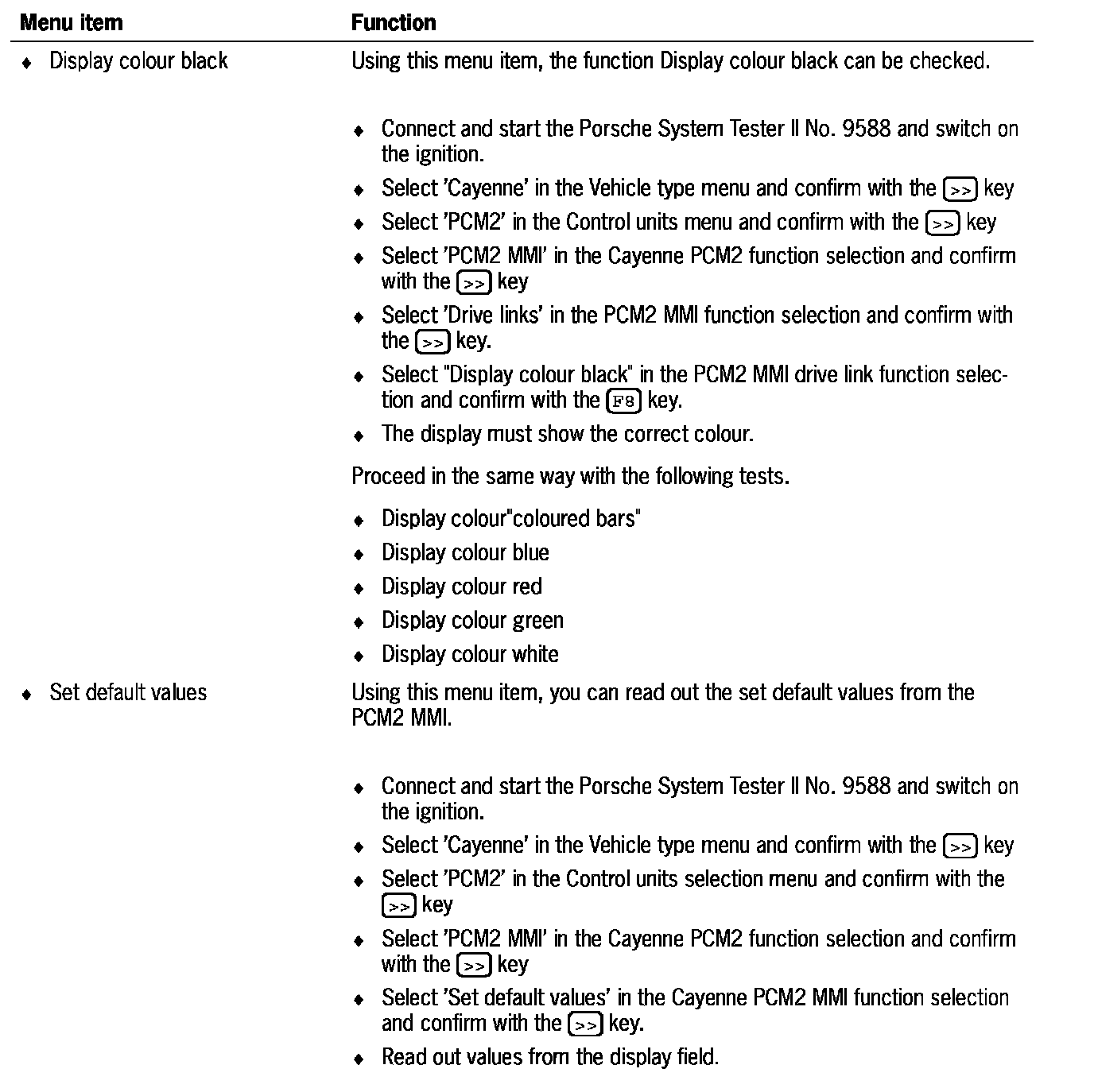

Part 1:

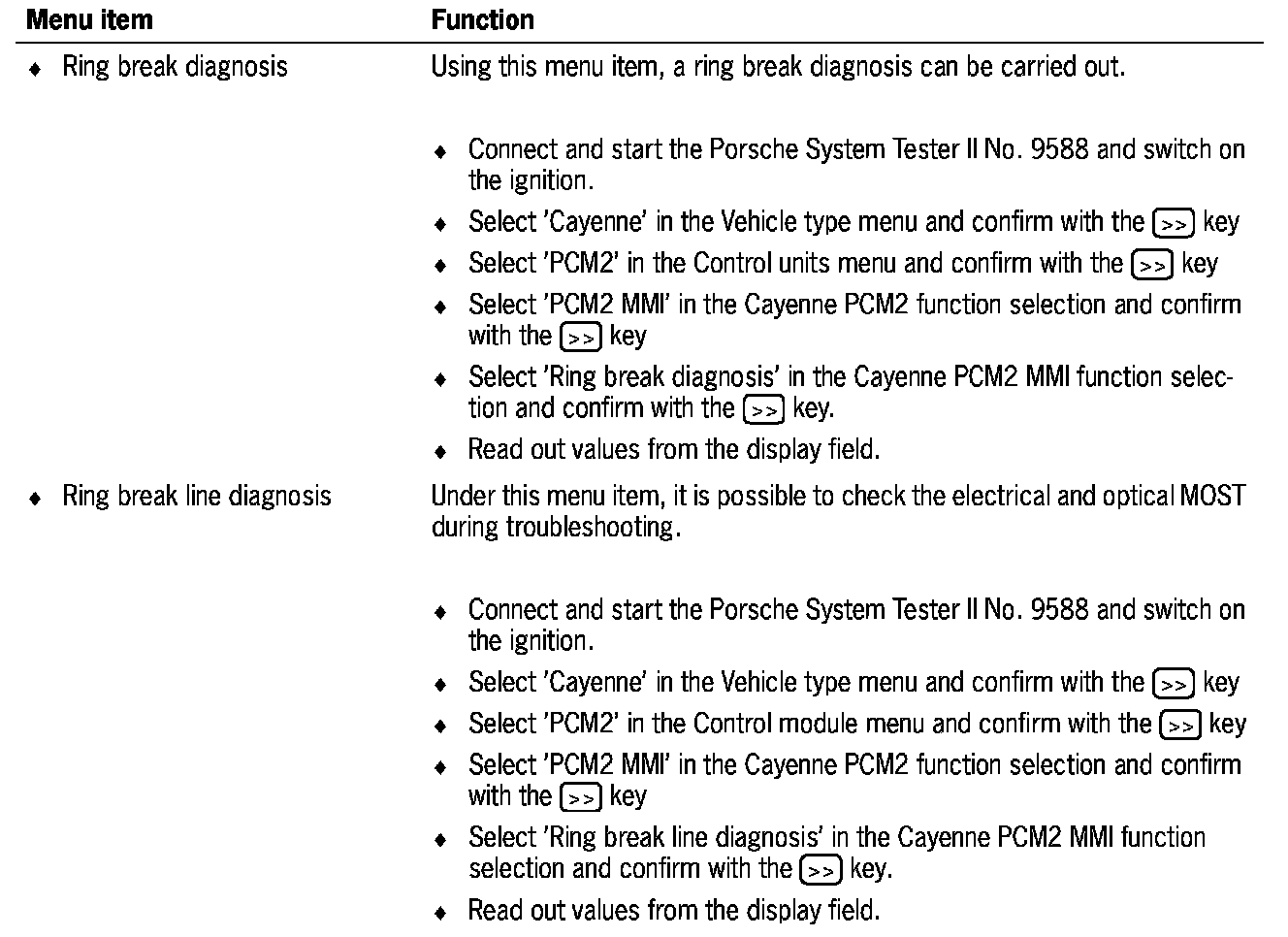

Part 2:
