Connector Assignment - Transverse Lock Control Unit

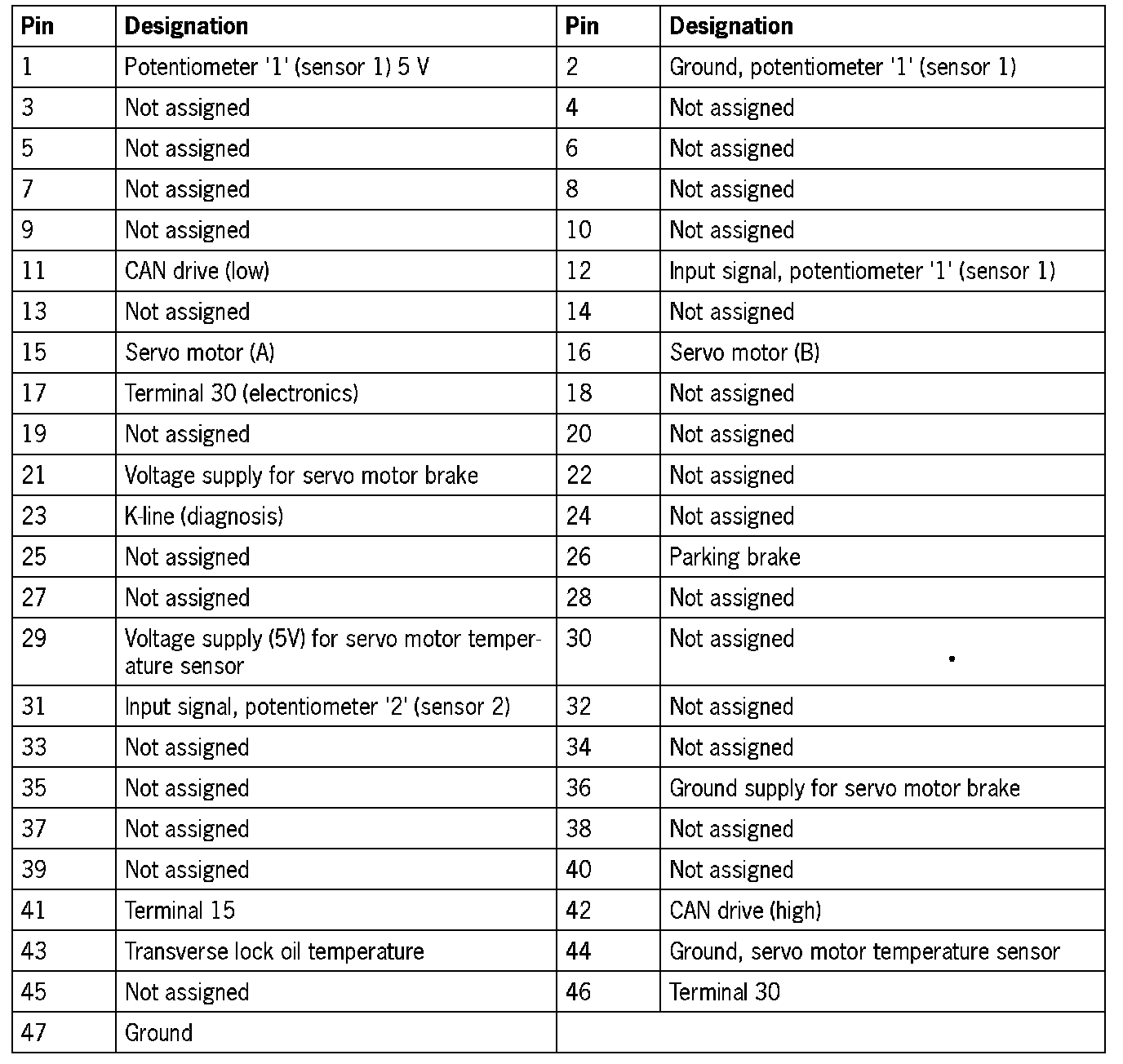

Connector assignment - transverse lock control unit

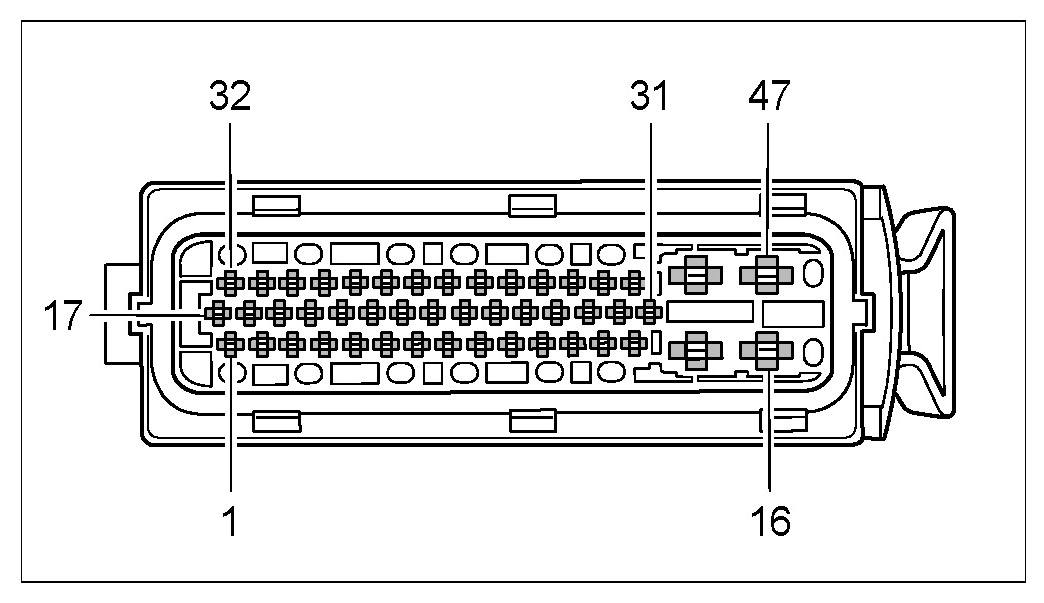

Plug '47-pin'

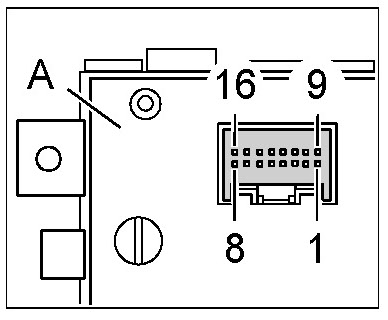

Gear selection switch connector assignment (running gear control module), '16-pin'

A - Plug connection for 'gear selection switch (running gear control module)' (at underside of housing)
