Drive Belt Routing
CAUTION:
Never remove drive belt when belt is hot. This will cause drive belt to become deformed and require replacement.
Serpentine belt is self-adjusting. See
Fig 1
or
Fig 2
.

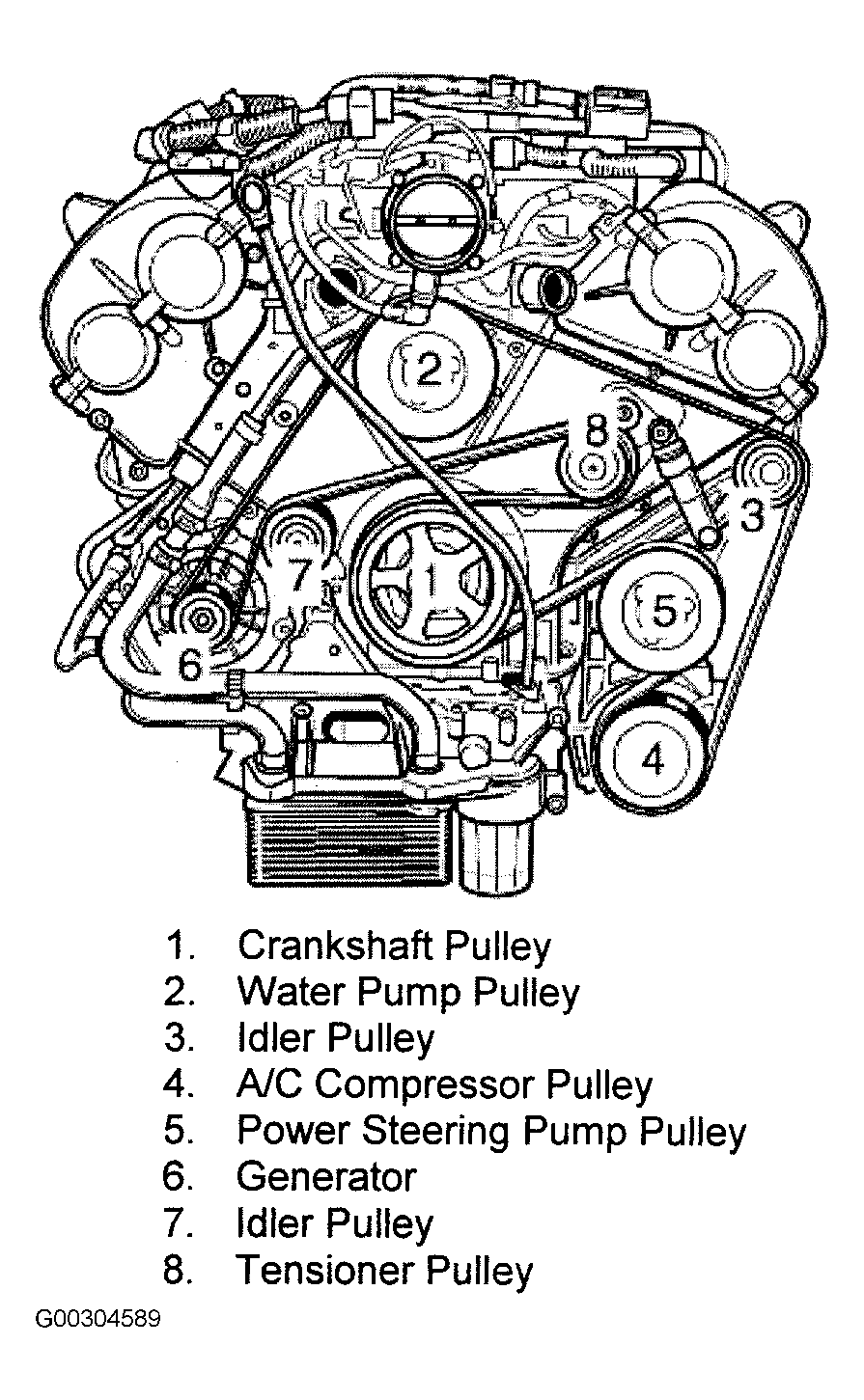

Fig 1: Drive Belt Routing (3.2L V6)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

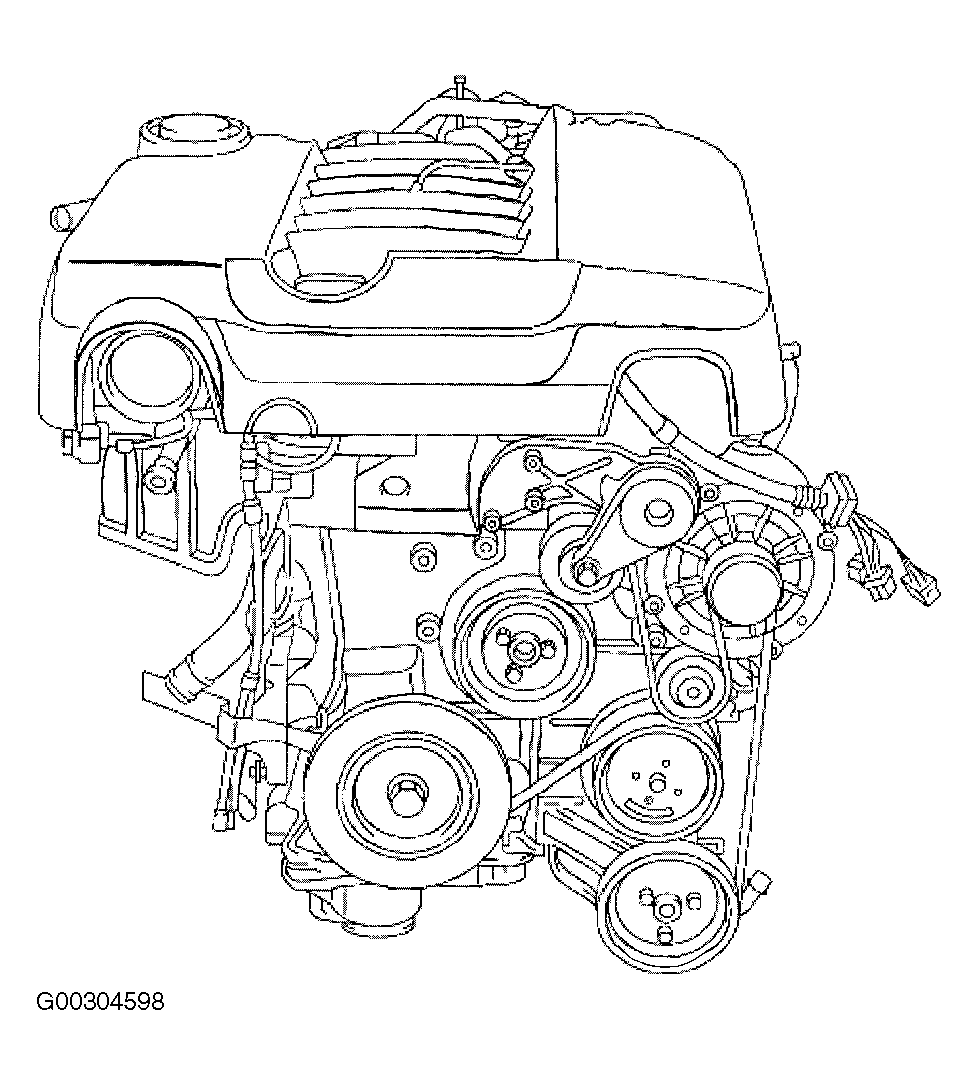

Fig 2: Drive Belt Routing (4.5L V8)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
