Installing triggering unit

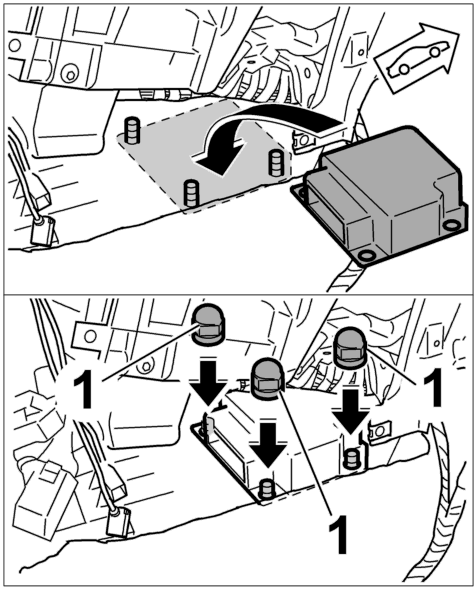

Fig 1: Installing triggering unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Position triggering unit, move both ground straps -2-  on the left fastening bolts and screw down with the three fastening nuts -1-  . → Tightening torque: 6 ftlb.  . See Fig 1.

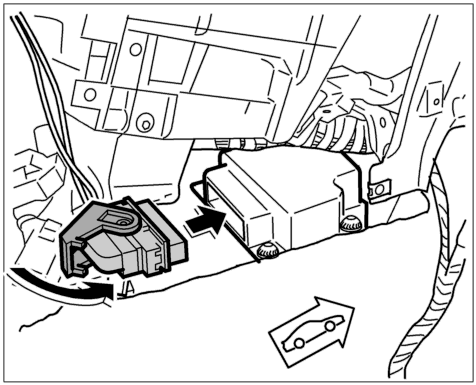

Fig 2: Connecting electric plug

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Connect electric plug and lock it until the lock engages.

3. If the triggering unit is new, lock the airbag triggering unit using the PIWIS Tester P 9718 . → 69 53 19 Removing and installing triggering unit for airbag - as of MY 2005 (All Models) .
