Removing and Installing Control Unit For Gas Discharge

Removing And Installing Control Unit For Gas Discharge

Removing control unit for gas discharge

Removing cap of main headlight

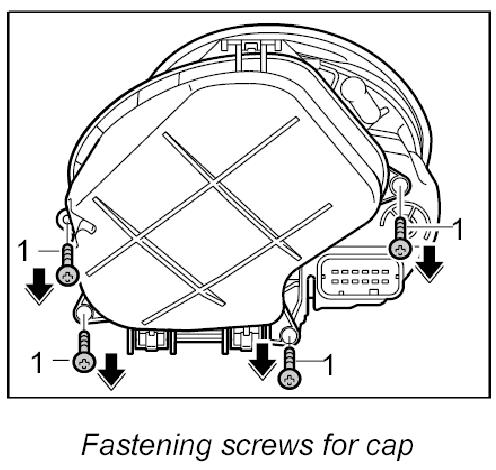

1. Unscrew four fastening screws -1- from the cap.

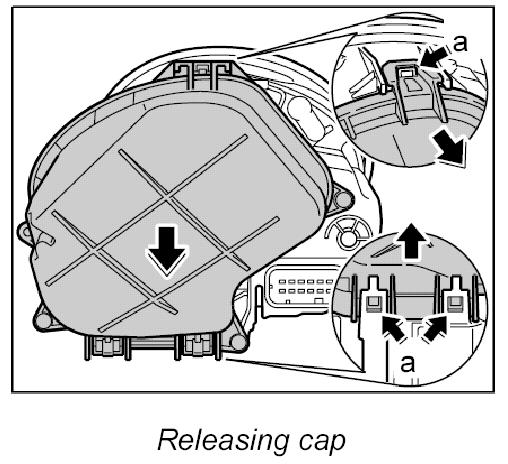

2. Release cap once at the top and twice at the bottom -a- and remove from the main headlight.

Removing control unit for gas discharge

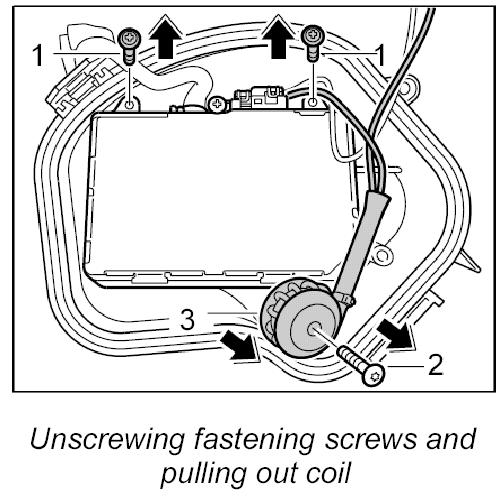

1. Unscrew the fastening screw -2- for the coil and pull the coil -3- out of the cap.
2. Unscrew the two fastening screws -1- and remove the control unit.

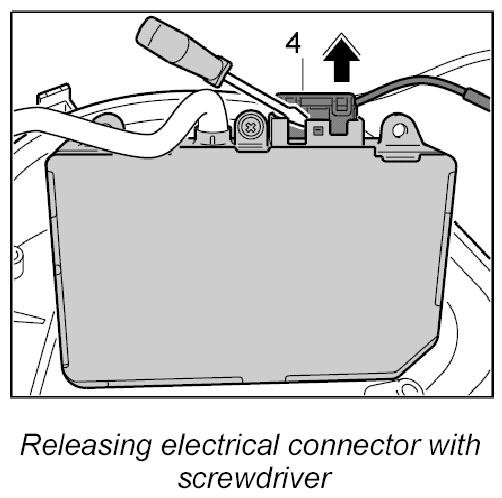

3. Using a screwdriver, carefully release the electrical connector on the screwdriver and lever it out.

Installing control unit for gas discharge

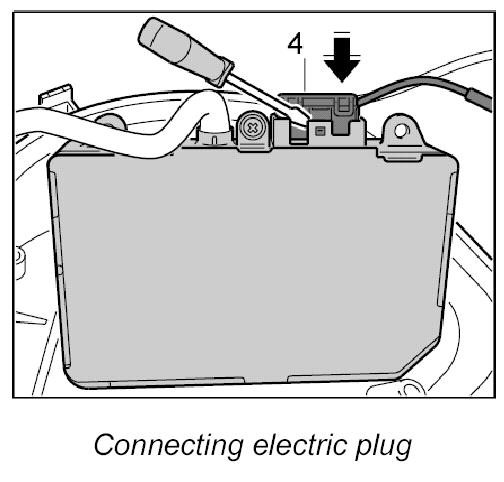

1. Press in the electrical connector for the gas-discharge control unit until it clicks into place.

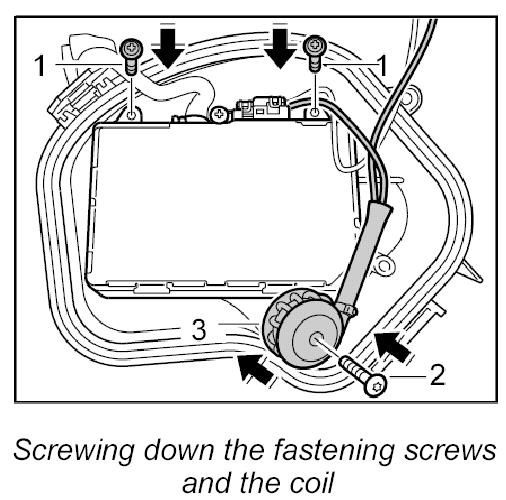

2. Insert the control unit in the headlight cap and screw down with both fastening screws -1-.
3. Push on the coil and screw it down with the fastening screw.

Installing main headlight cap

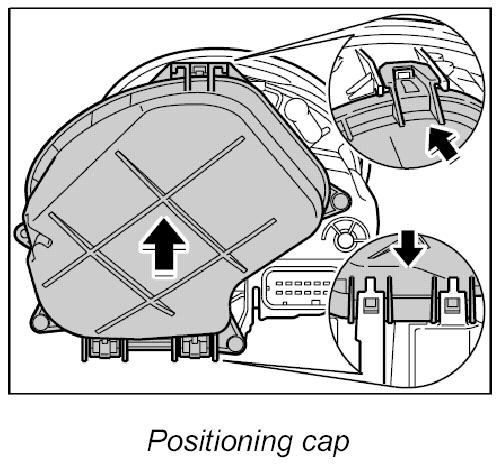

1. Position cap on main headlight and press into place, making sure that the cap engages once at the top and twice at the bottom.

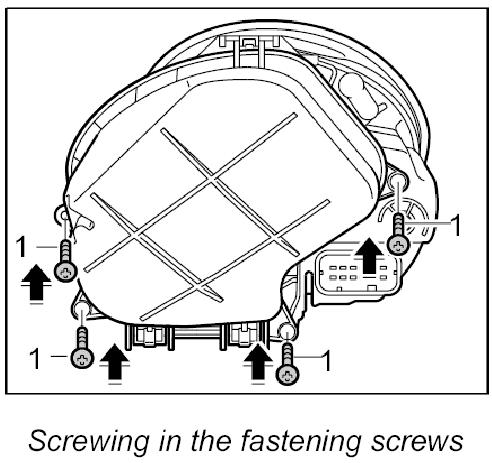

2. Screw in four fastening screws -1- for the cap.
